LS Knock Sensor Relocation Brackets

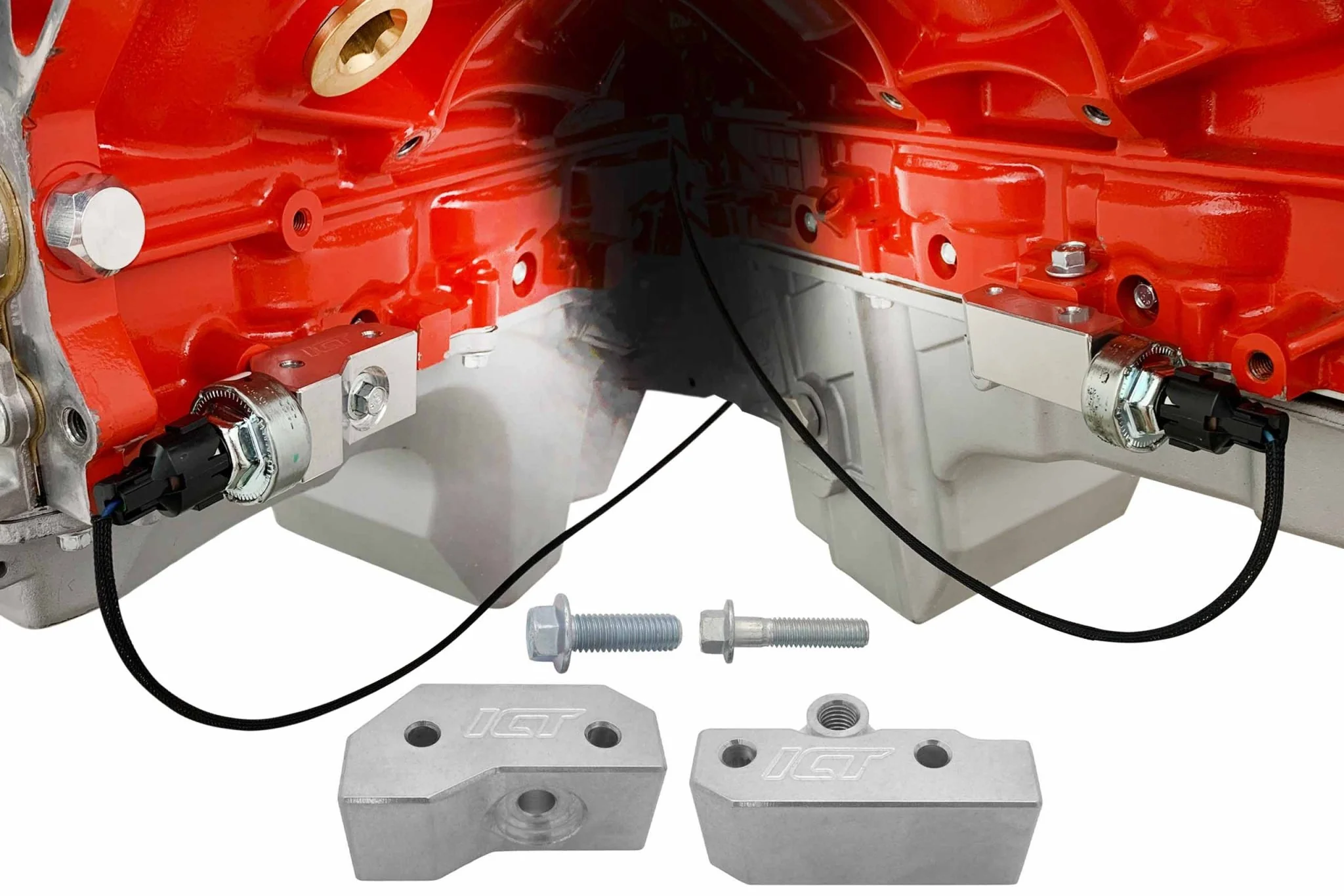

Allows LS Gen III knock sensors to be retained and relocated from the valley pan area to the bottom edge of the engine block, similar to a Gen 4 engine. One of the billet adapters in this kit will fit Gen 4 and Gen 5 blocks (see pictures).

Required if wanting to keep your knock sensors while using an ICT Billet valley pan (ICT# 551629 or 551629G)
Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
Compatible with: All gen III harnesses and sensors
Some 4WD applications will require both sensors on the passenger side bracket.
Fits engine RPO codes: LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33

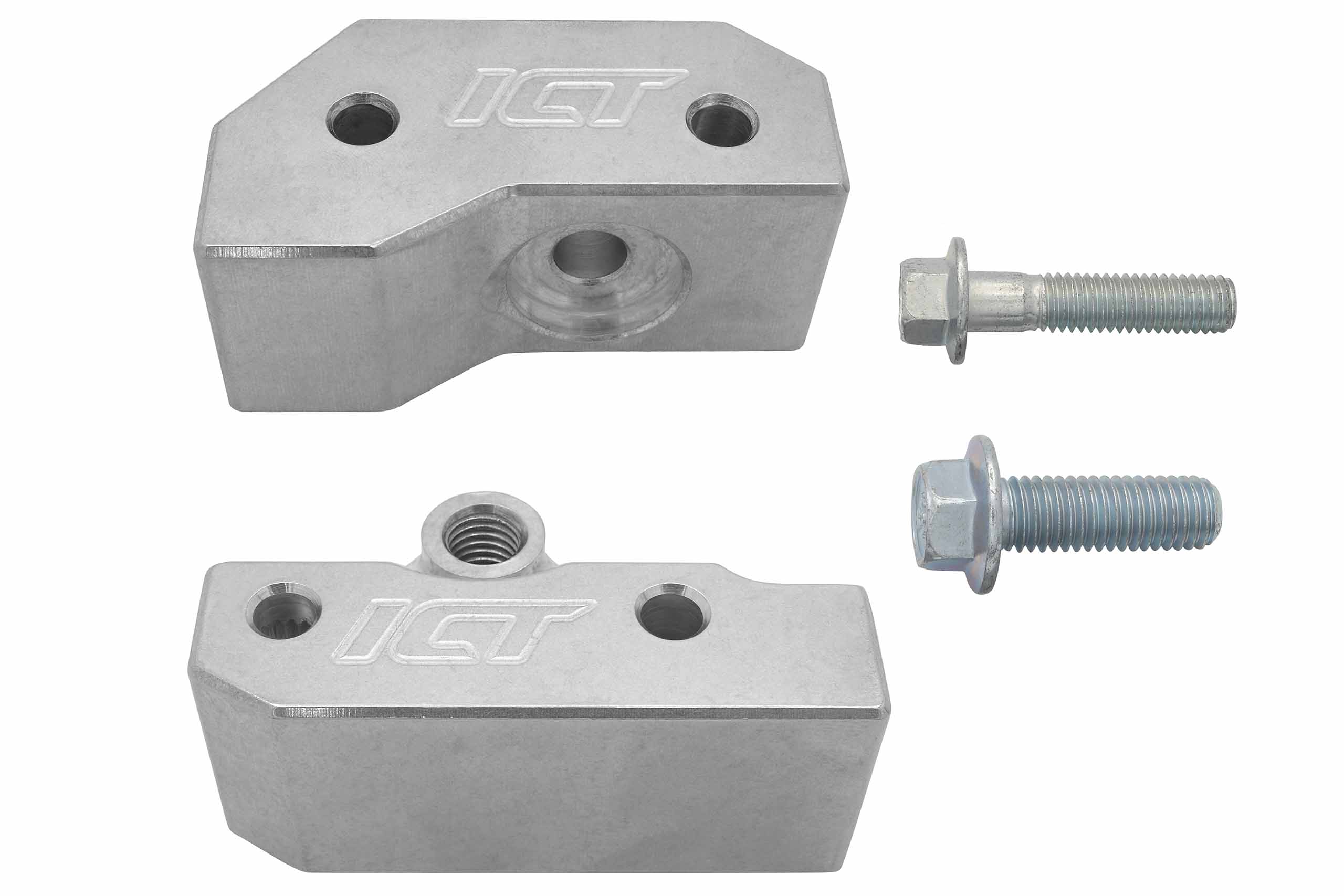

Includes: 2 billet aluminum knock sensor brackets, and mounting hardware
Requires extending wire harness or using an ICT Billet knock sensor extension harness (ICT# 30" WEKN030-36 or 60" WEKN030-60)
Replacement knock sensors: ICT# SEN010

Wire assignments:

Driver side - bank 1 - dark blue wire
Passenger side - bank 2 - light blue wire

Valley Pan

LS Gen III Knock Sensor Relocation Brackets LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 Valley
