LS Knock Sensor Relocation Brackets

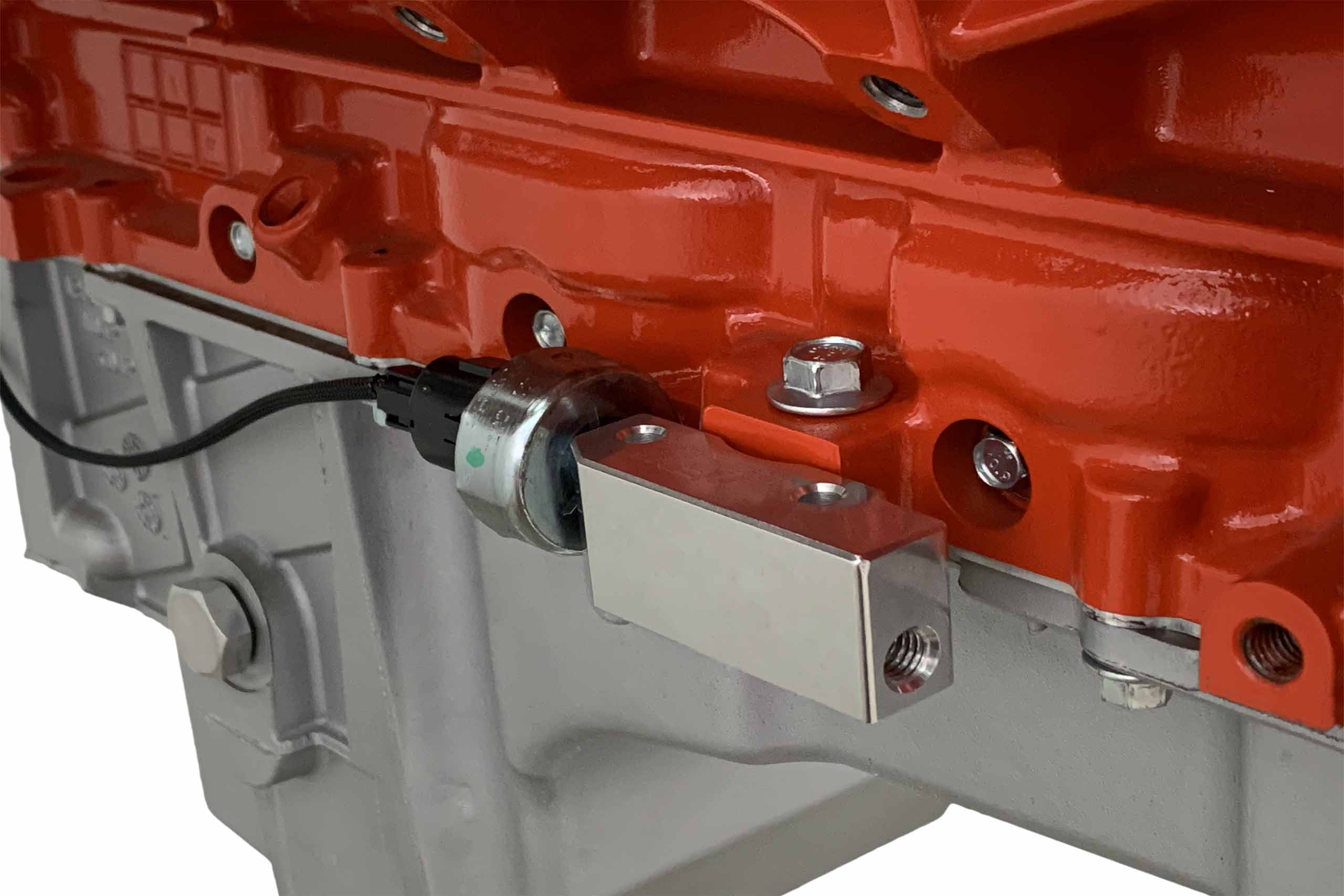

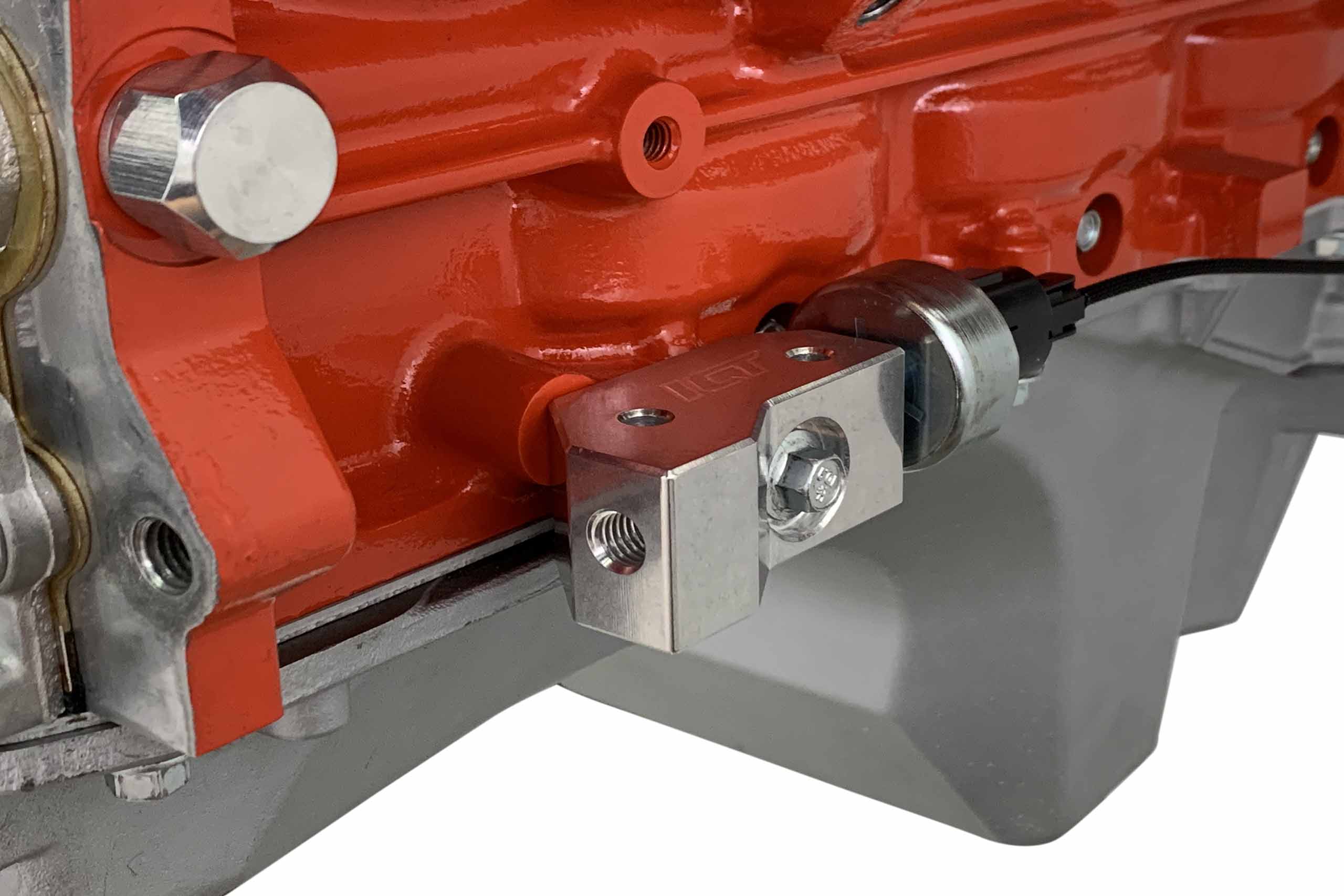

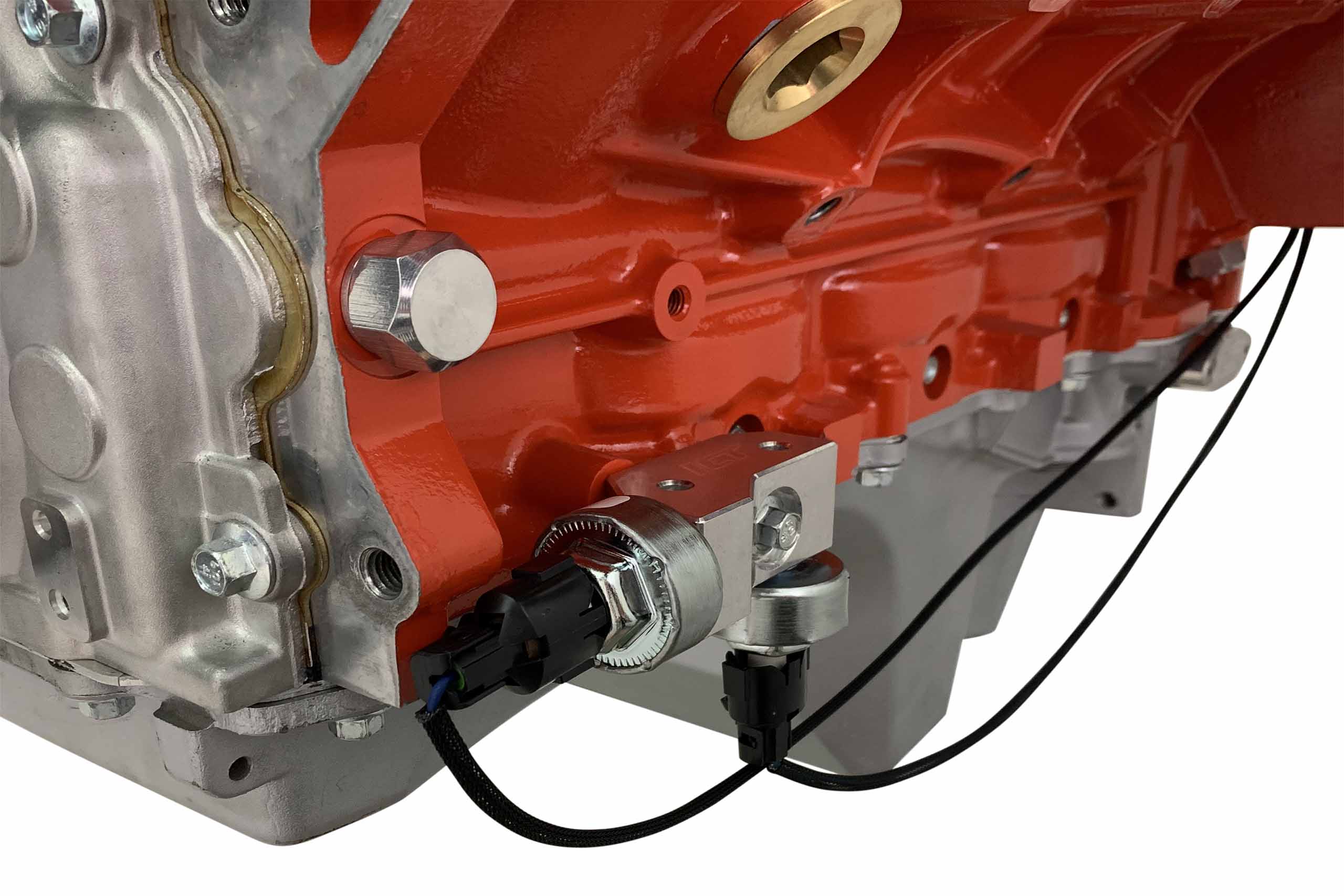

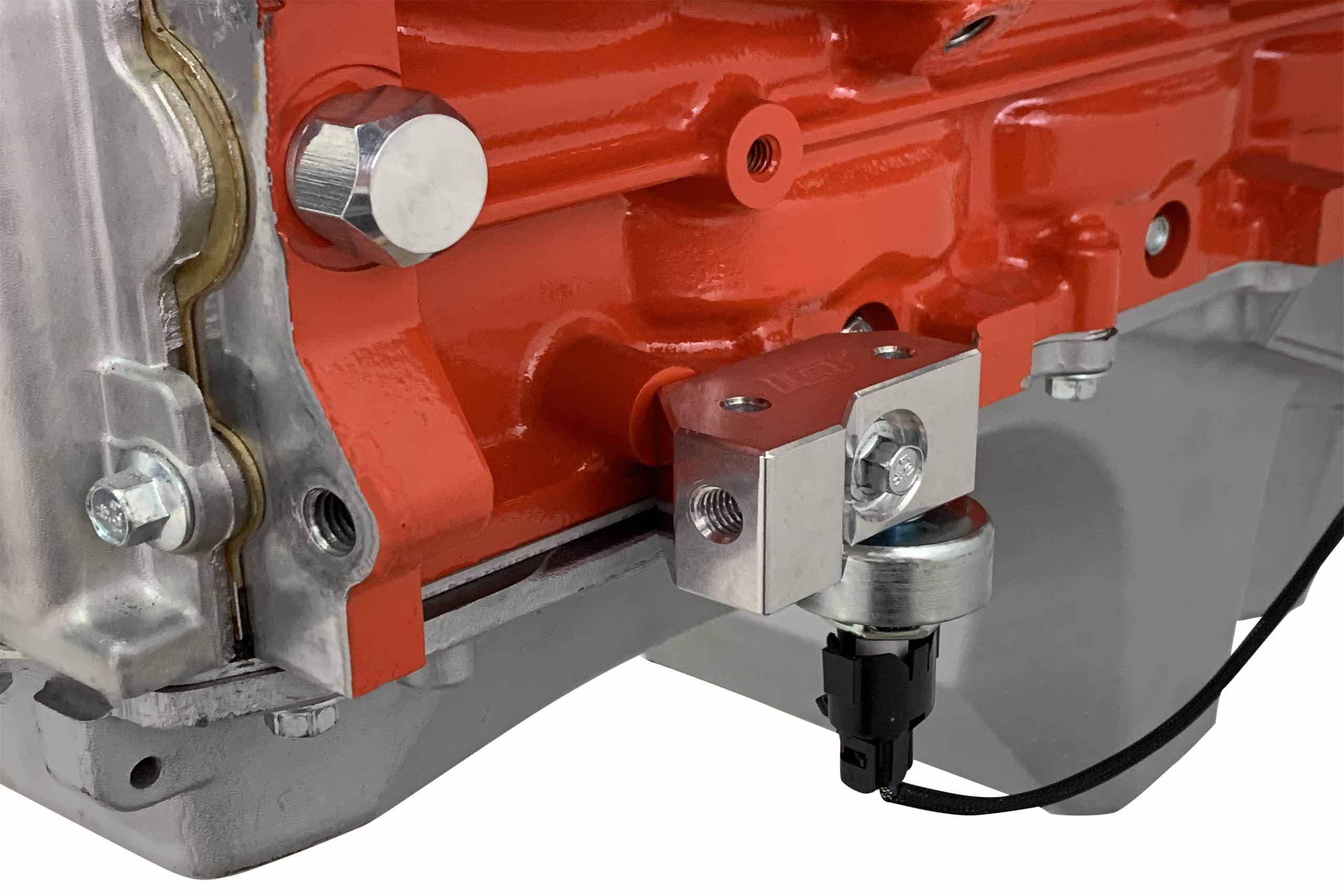

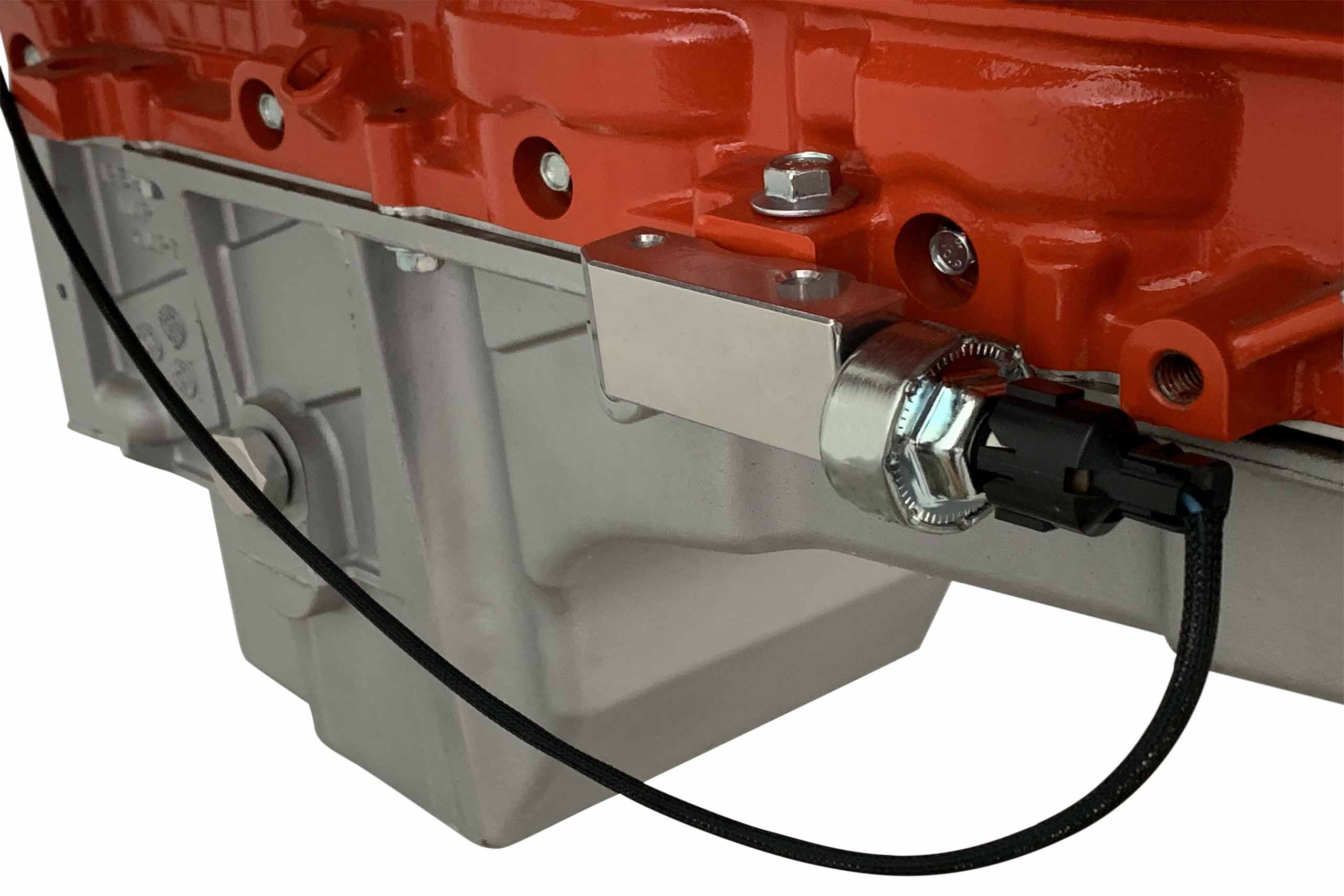

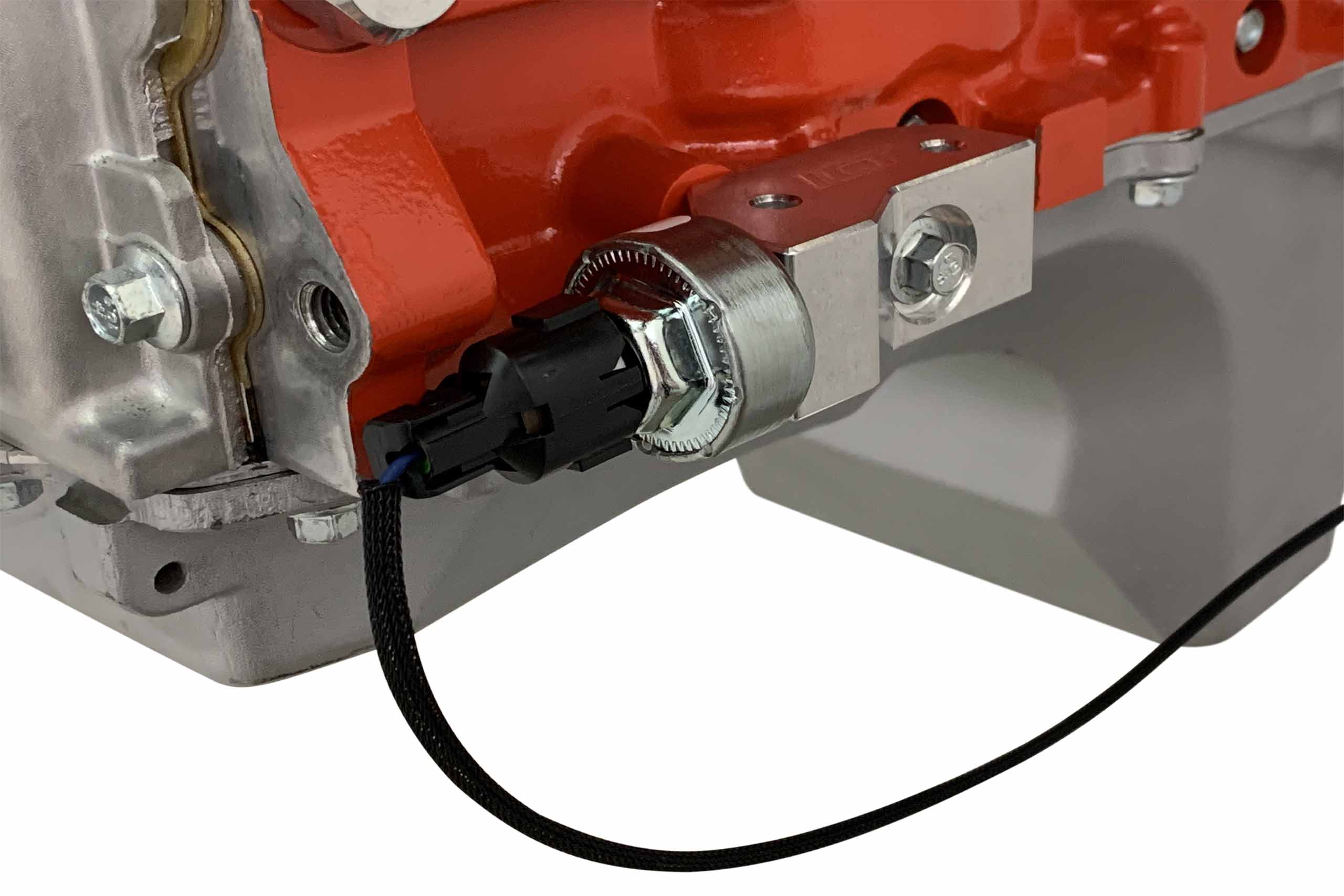

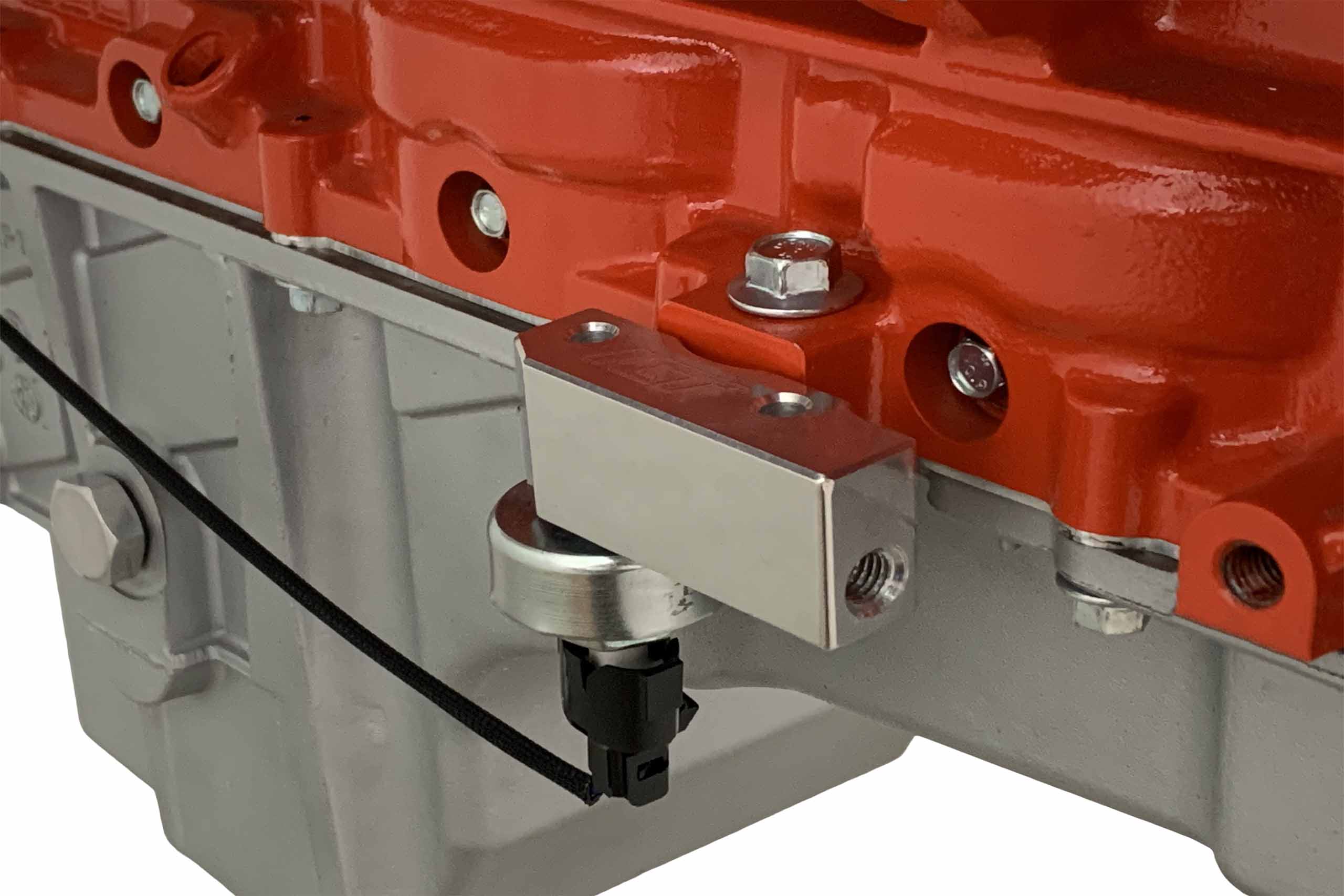

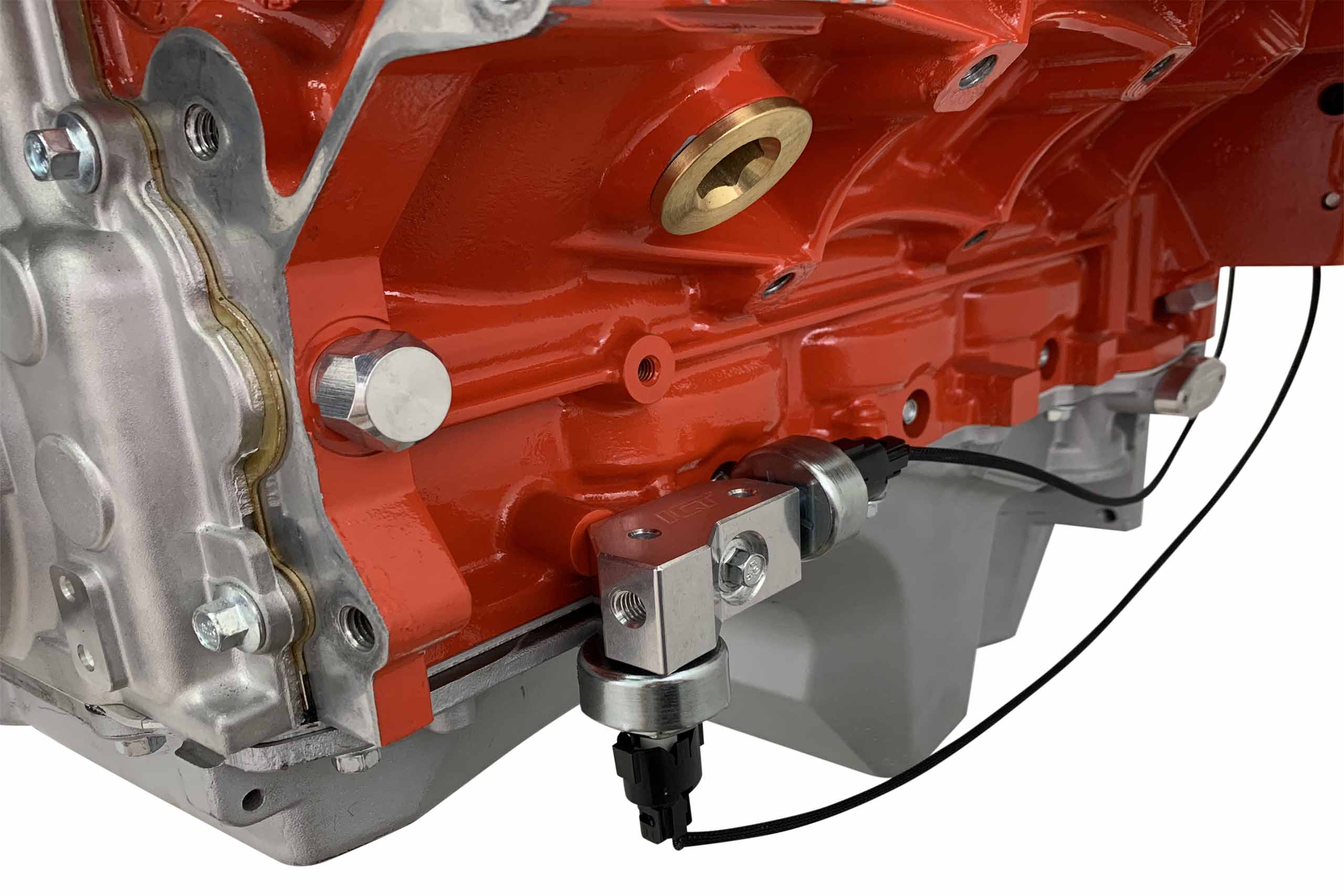

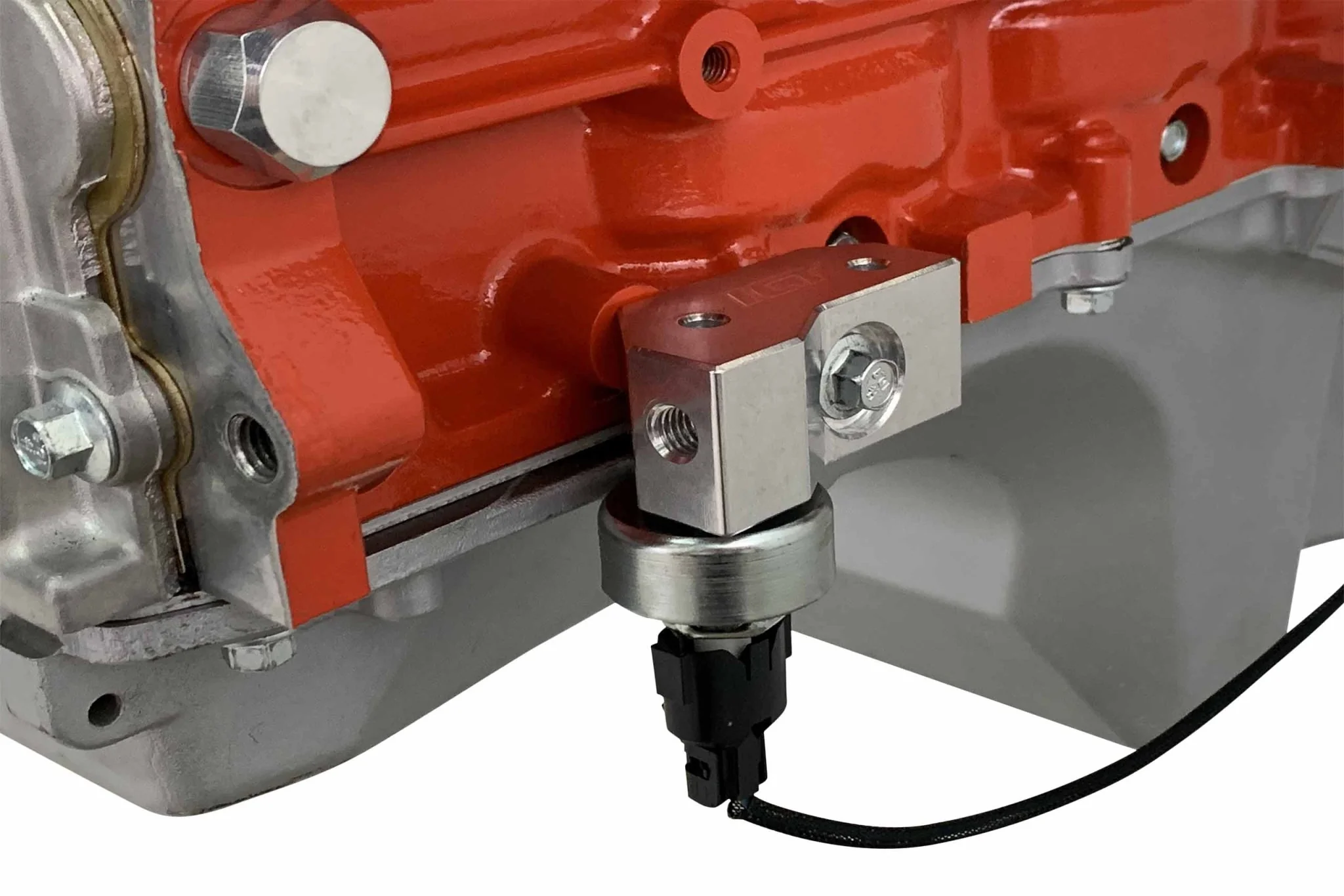

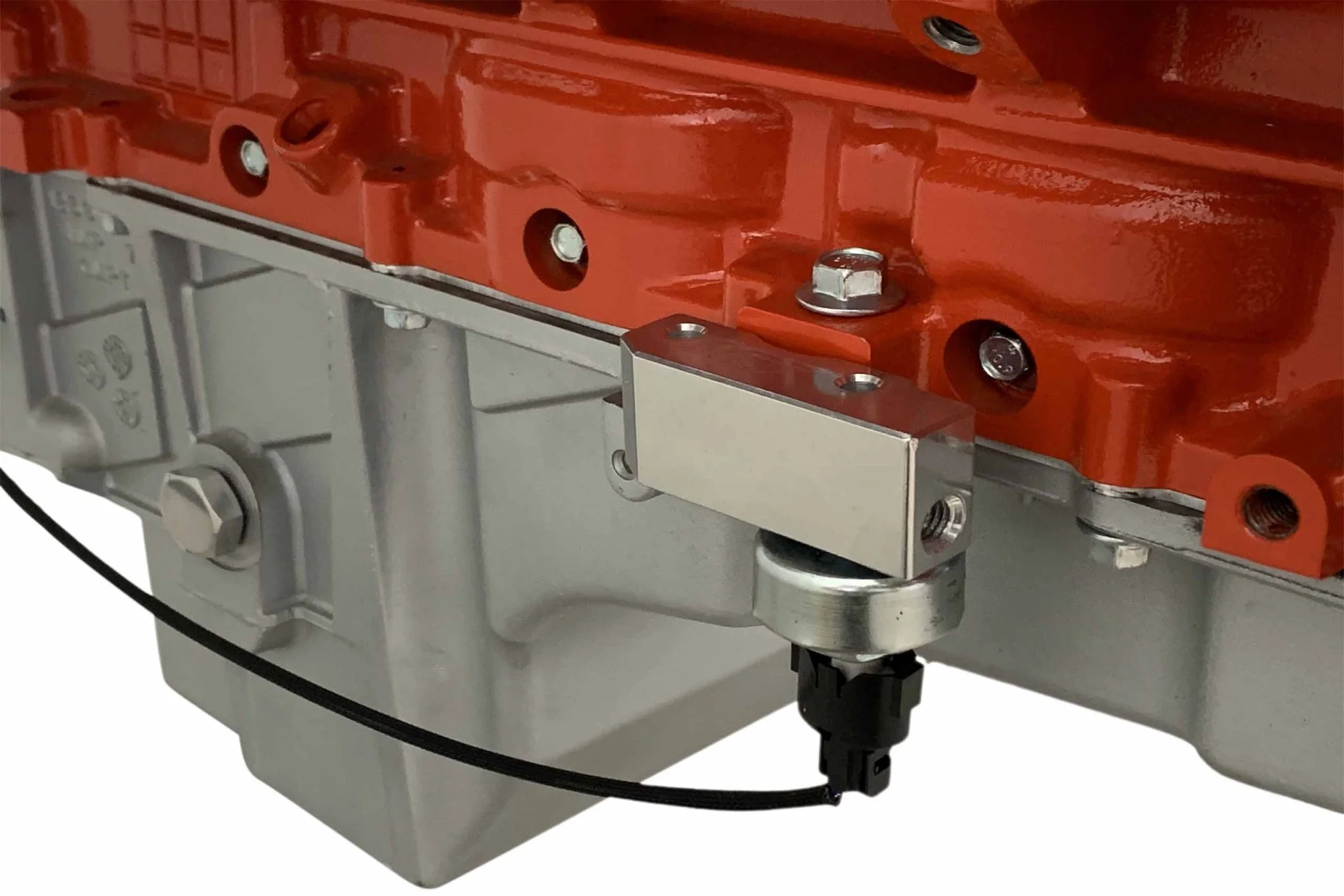

Allows LS Gen III knock sensors to be retained and relocated from the valley pan area to the bottom edge of the engine block, similar to a Gen 4 engine. One of the billet adapters in this kit will fit Gen 4 and Gen 5 blocks (see pictures).

• Required if wanting to keep your knock sensors while using an ICT Billet valley pan (ICT# 551629 or 551629G)
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
• Compatible with: All gen III harnesses and sensors

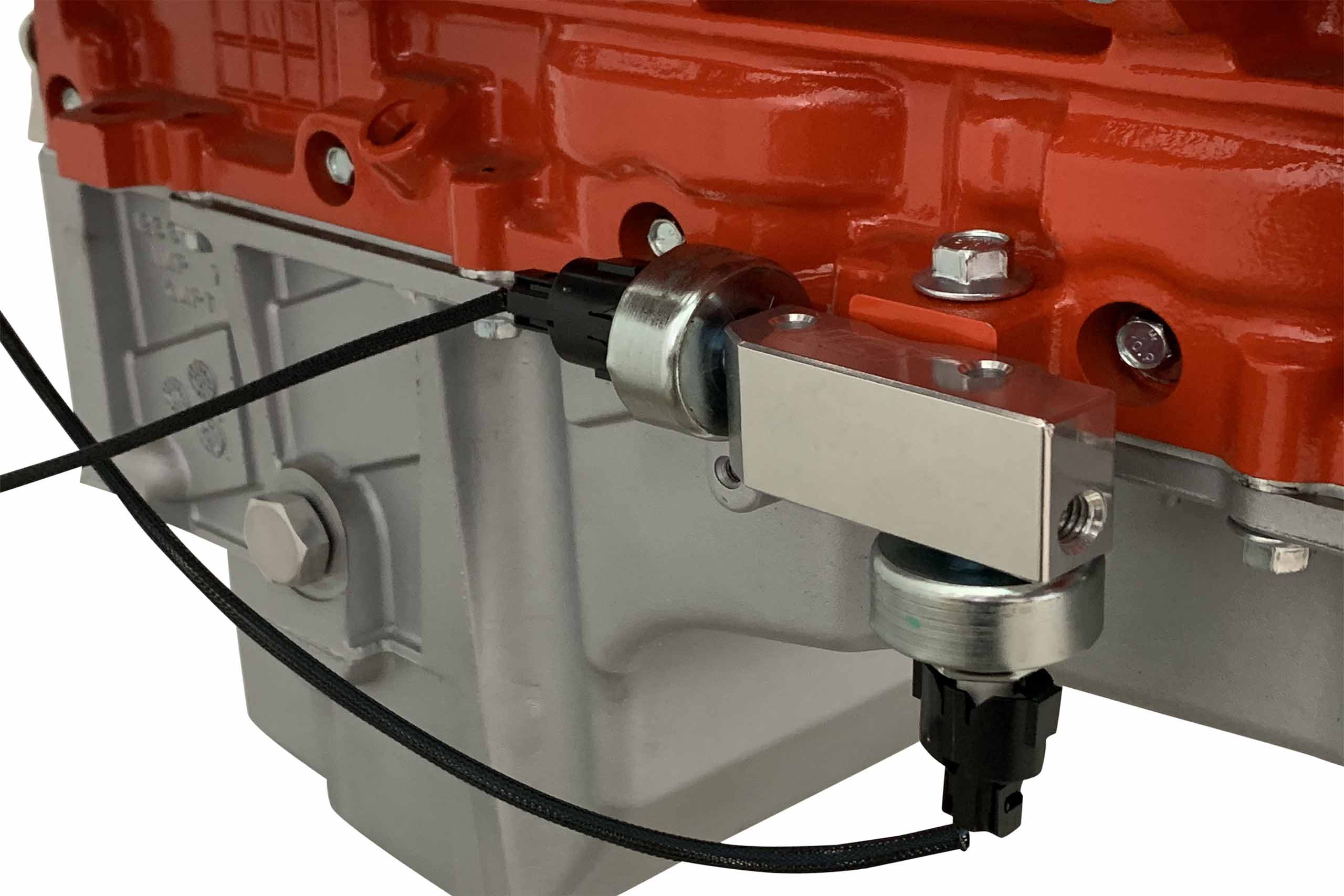

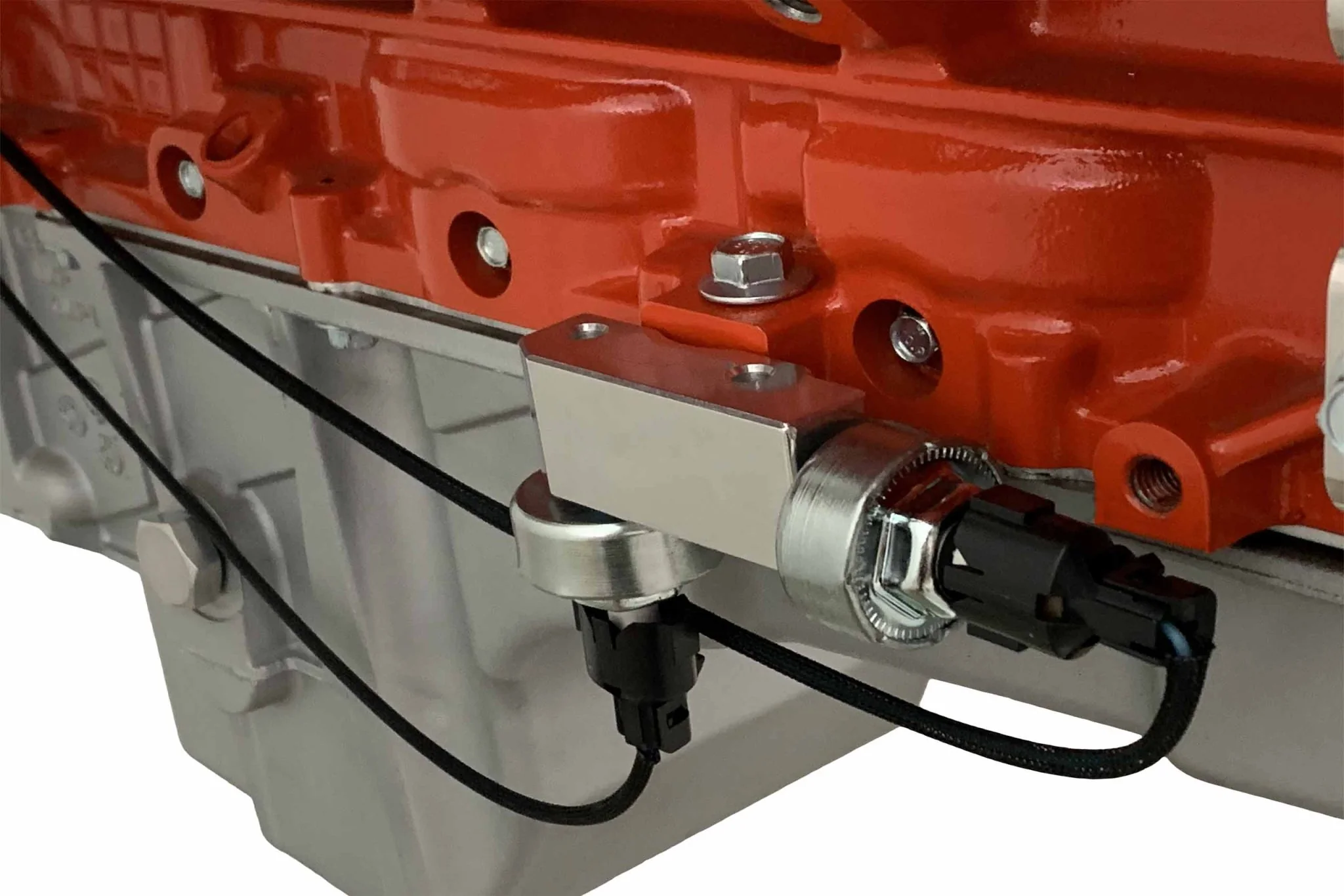

• Some 4WD applications will require both sensors on the passenger side bracket.
• Fits engine RPO codes: LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33
• Includes: 2 billet aluminum knock sensor brackets, and mounting hardware
• Requires extending wire harness or using an ICT Billet knock sensor extension harness (ICT# 30"   WEKN030-36 or  60"   WEKN030-60)
• Replacement knock sensors: ICT# SEN010



Wire assignments:

• Driver side - bank 1 - dark blue wire
• Passenger side - bank 2 - light blue wire
