LS Engine Swap / Engine Mount Brackets

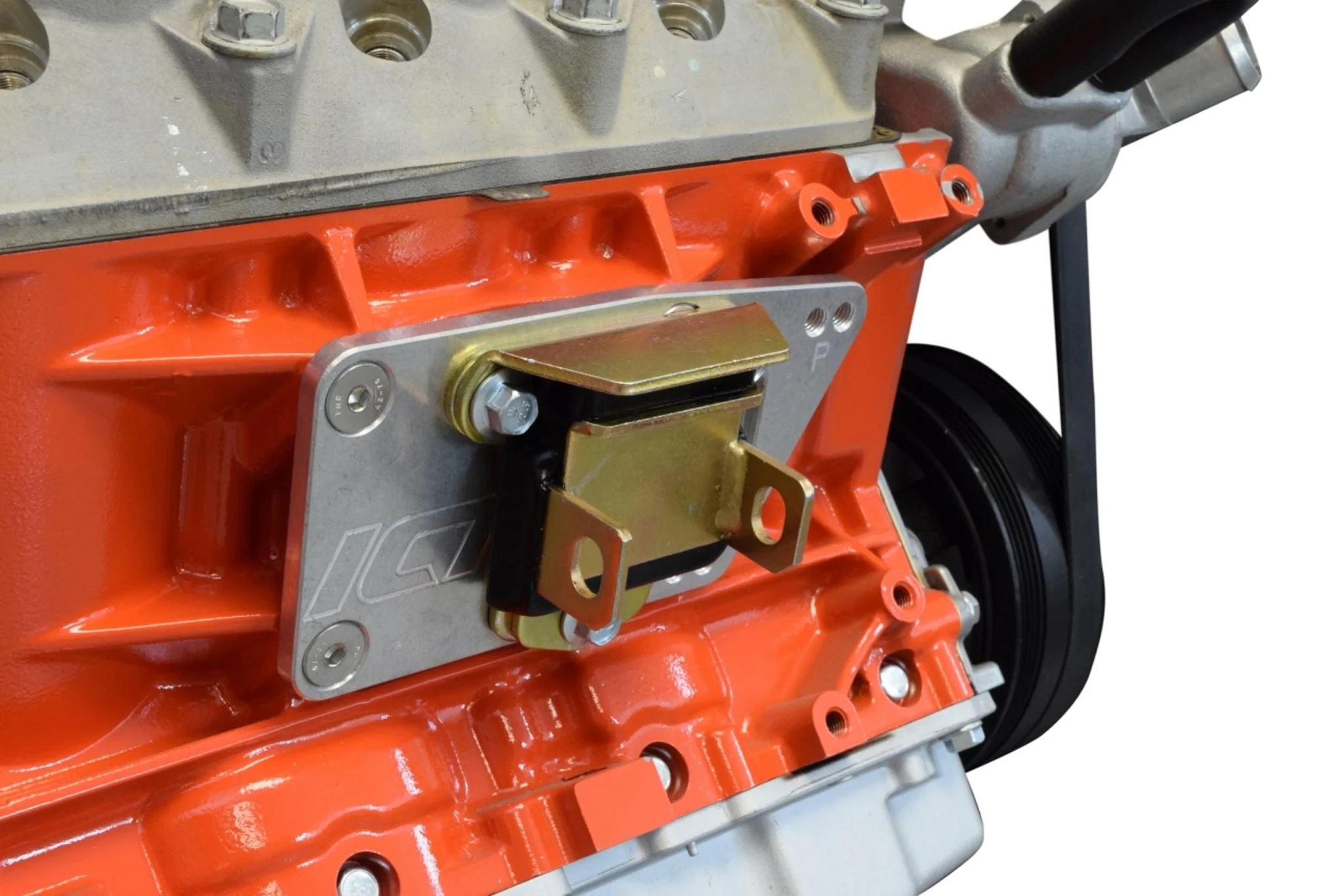

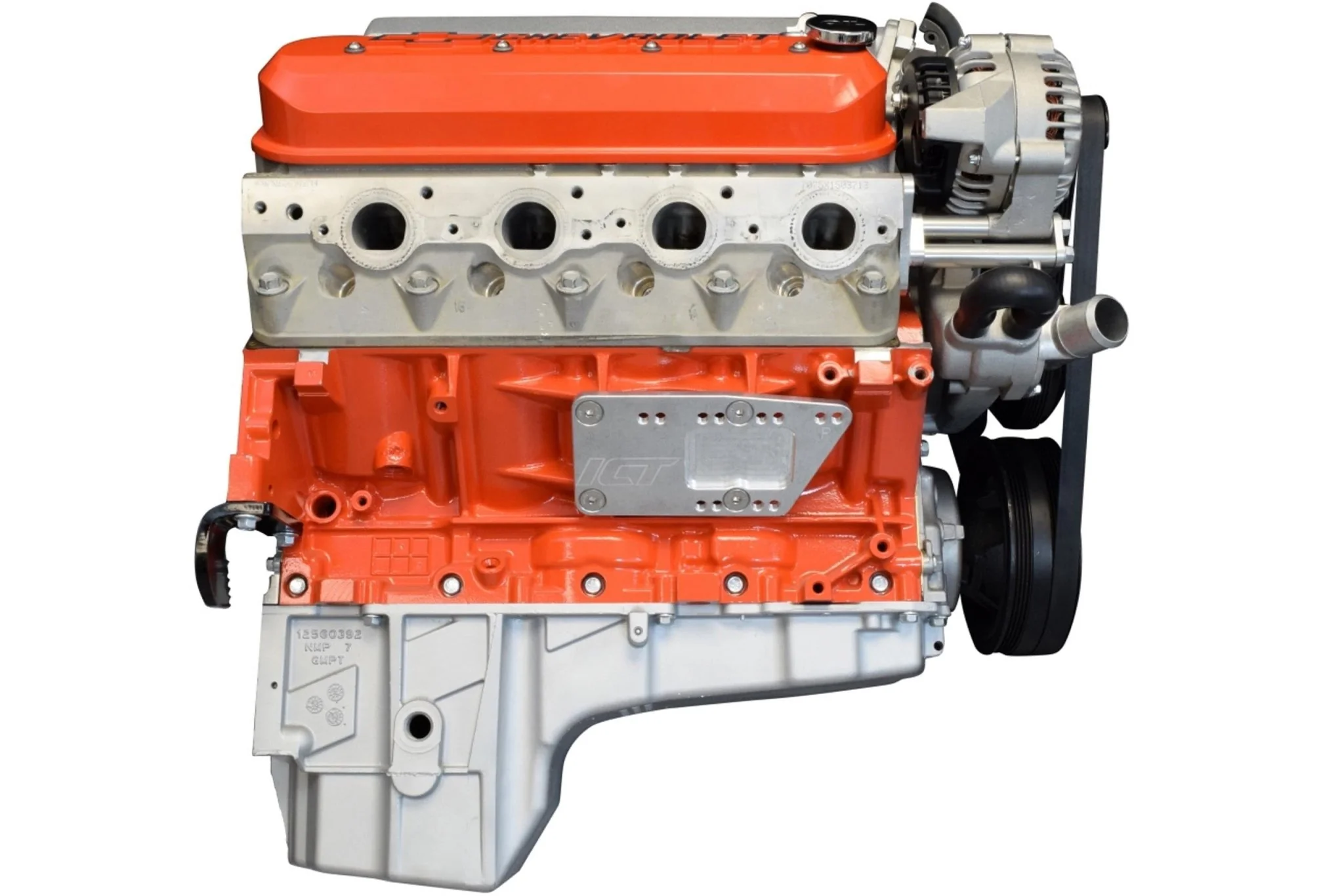

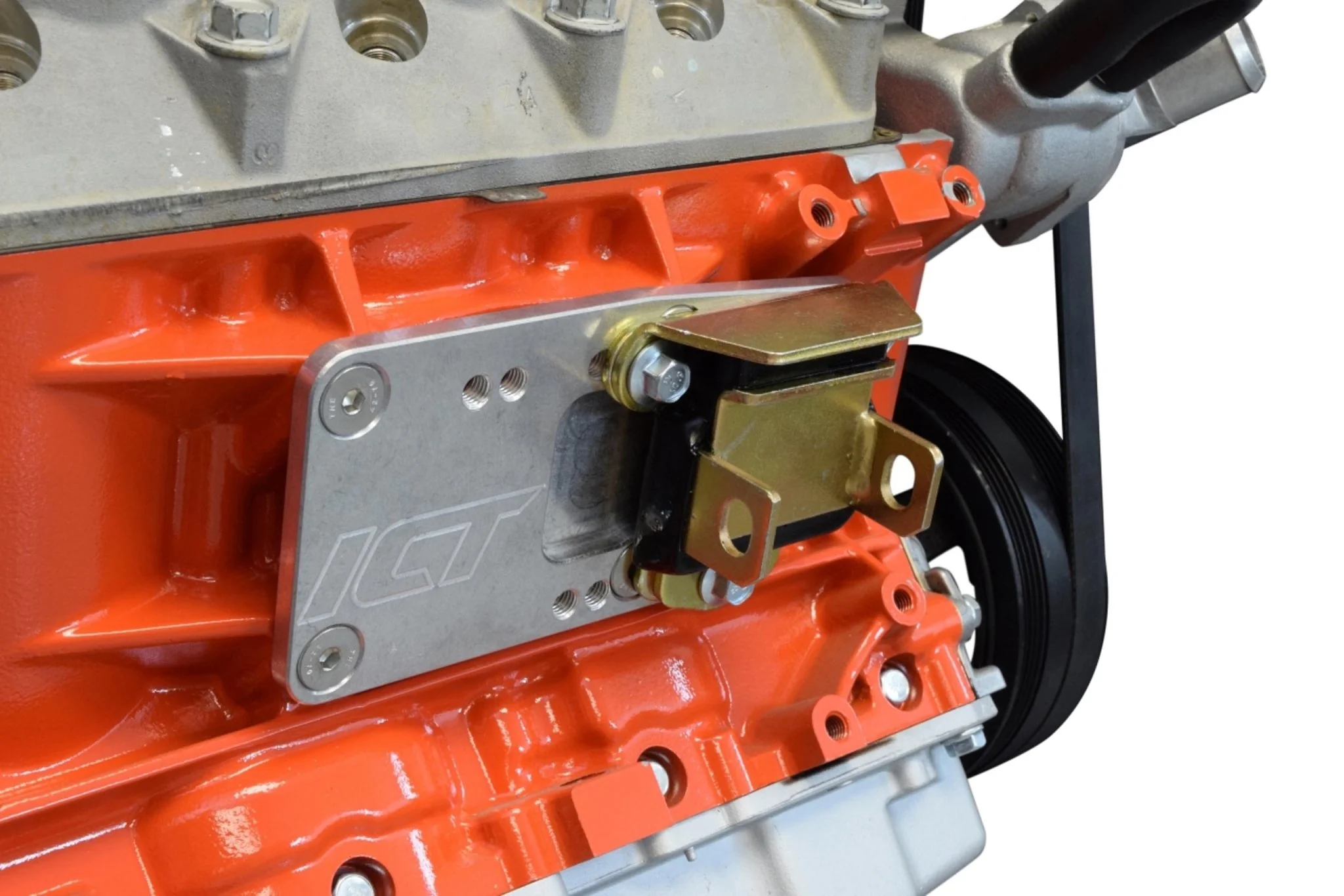

These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine with your existing mounts (see photos).

** Does Not Include Engine Mounts***

• Made with OEM specifications for the best possible fitment into your vehicle
• These plates will move the crankshaft centerline up .17" in the vehicle
• Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum

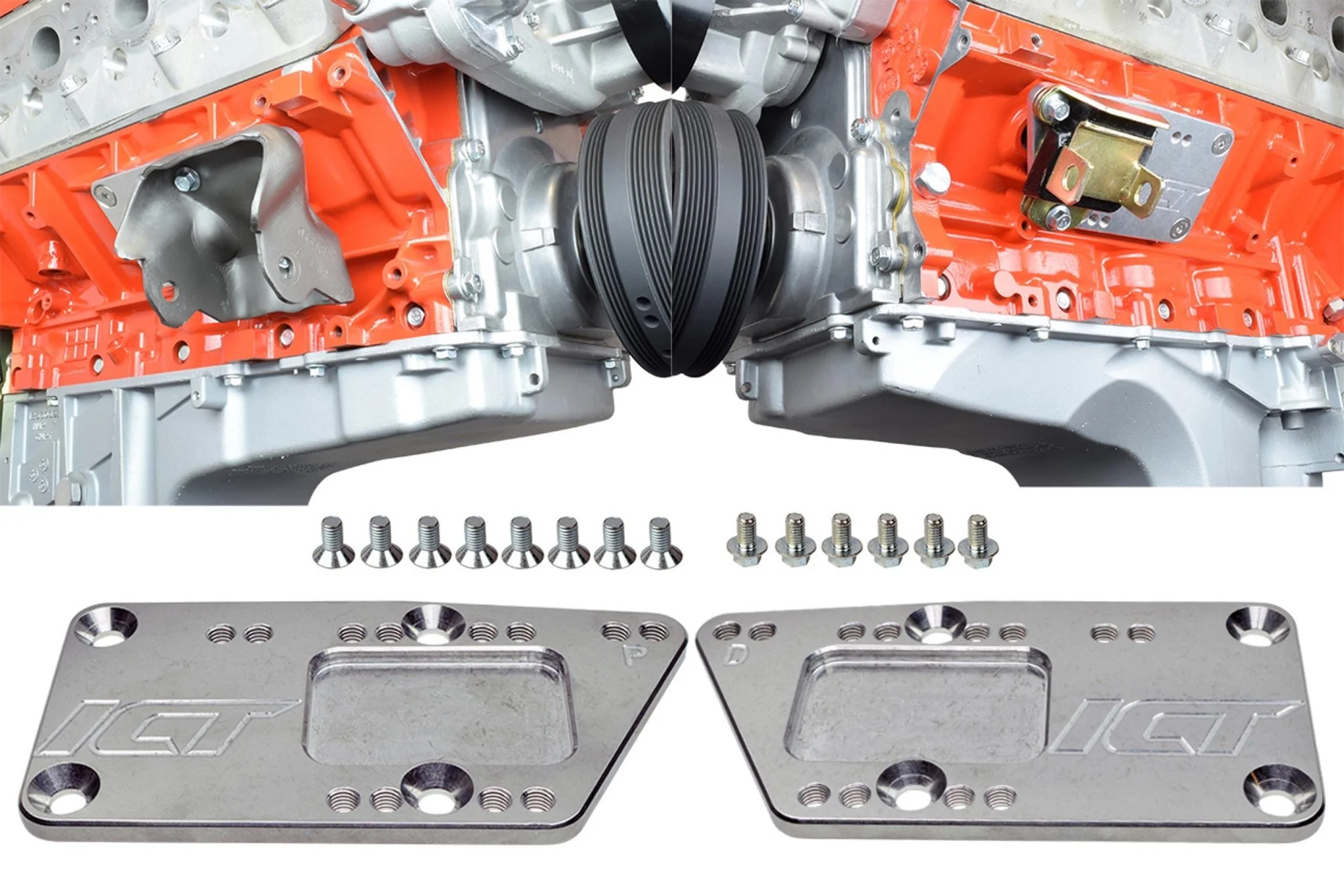

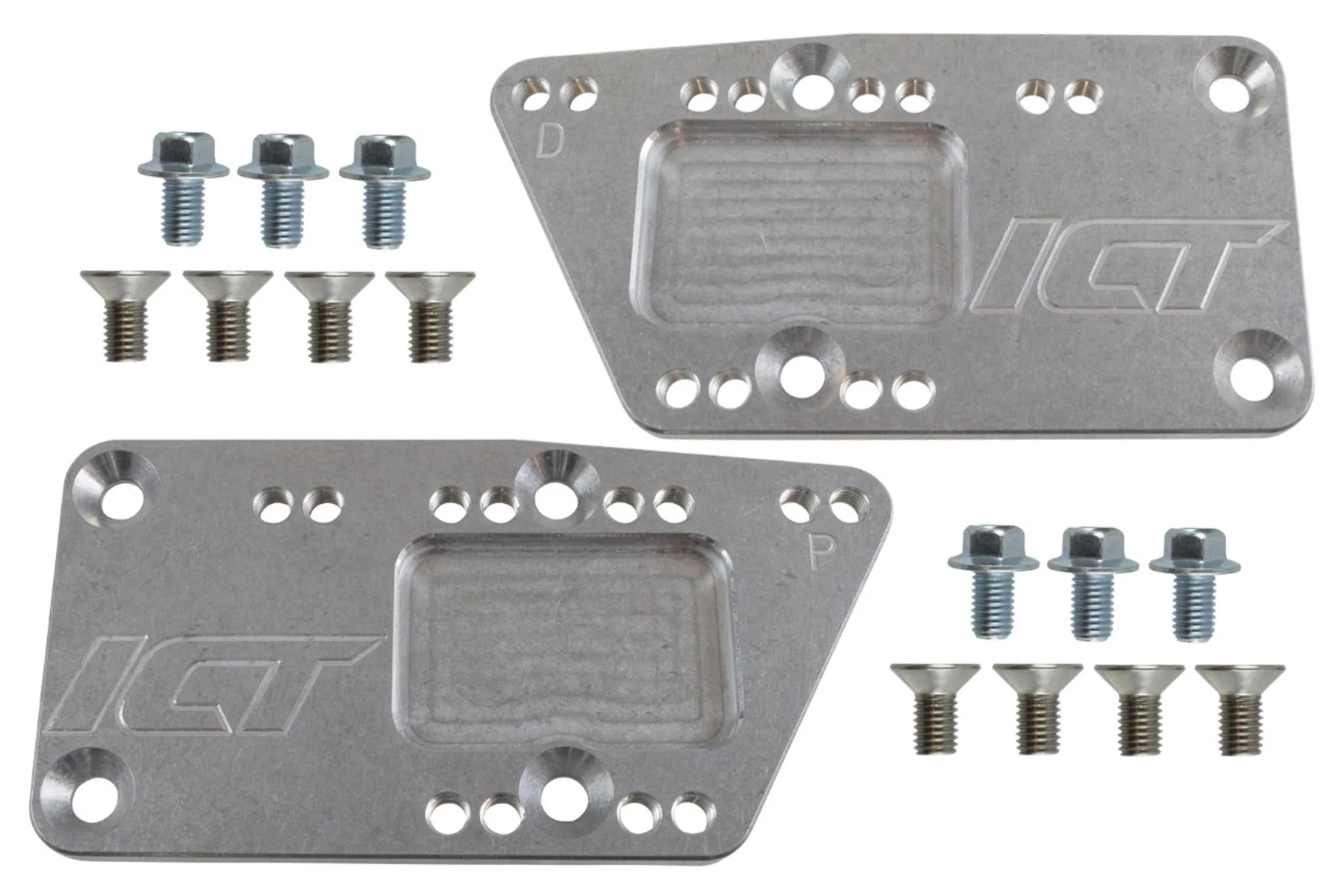

• Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
• See our other listings for all your LS swap needs. Check out our "Tips and Guides" section on our page

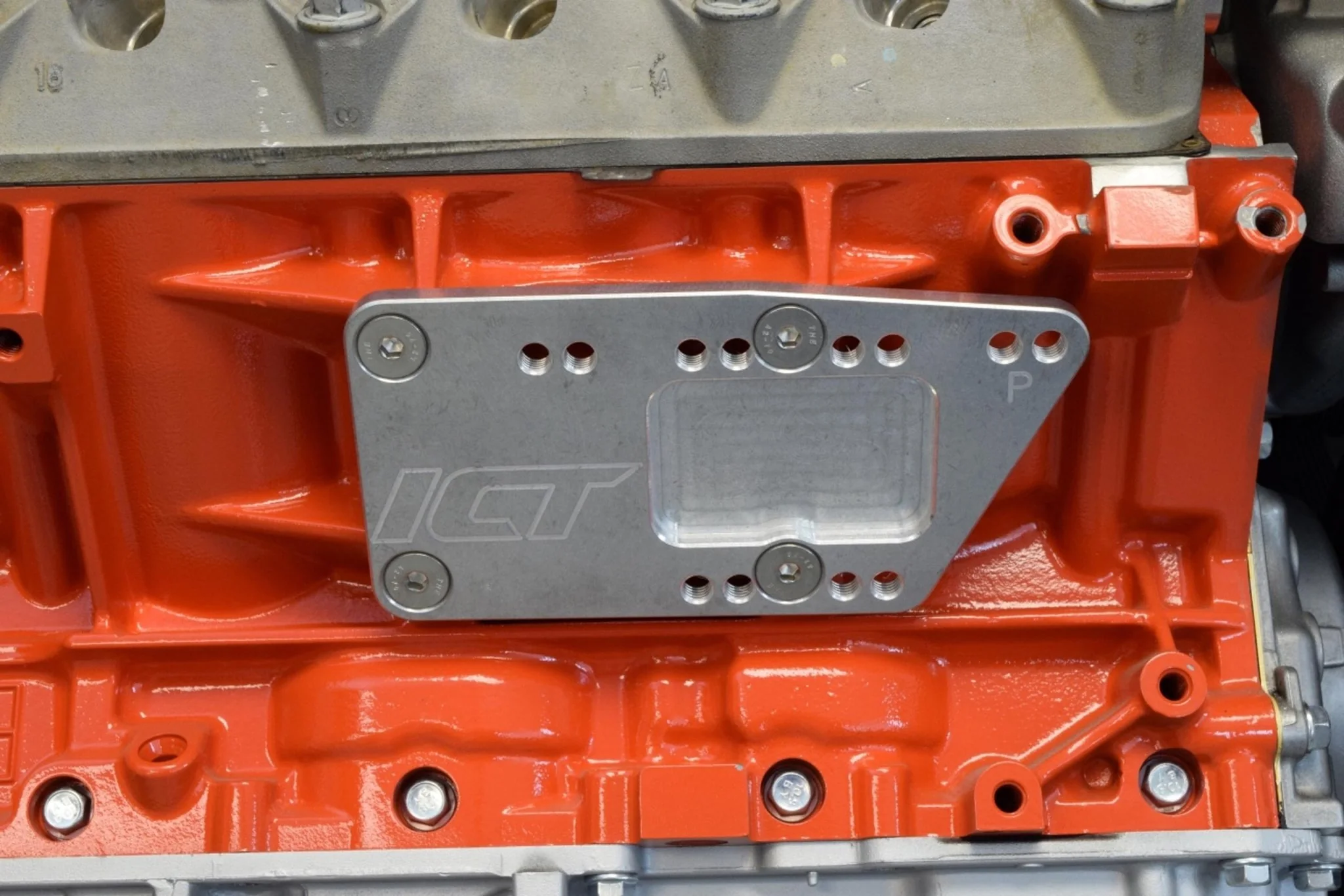

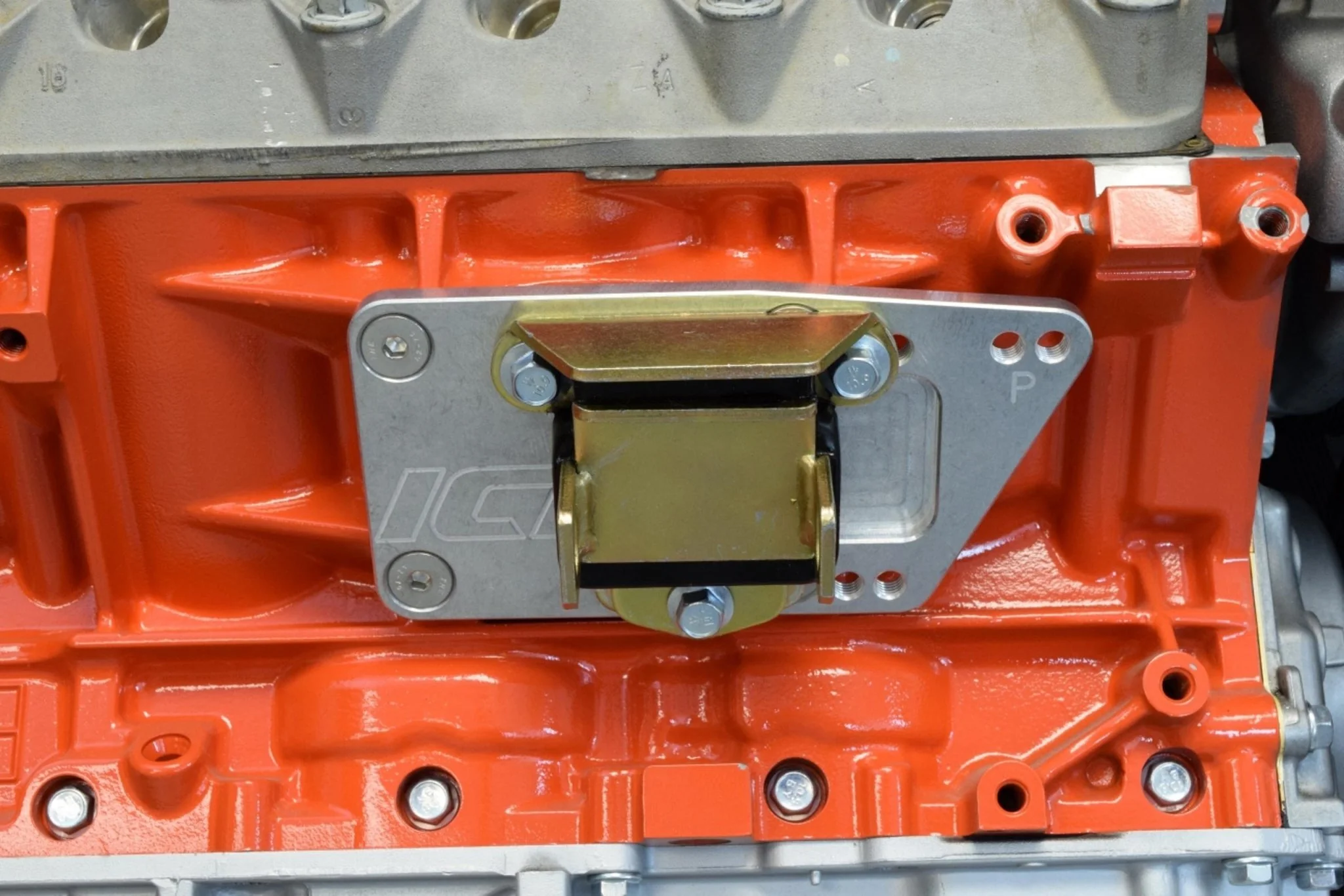

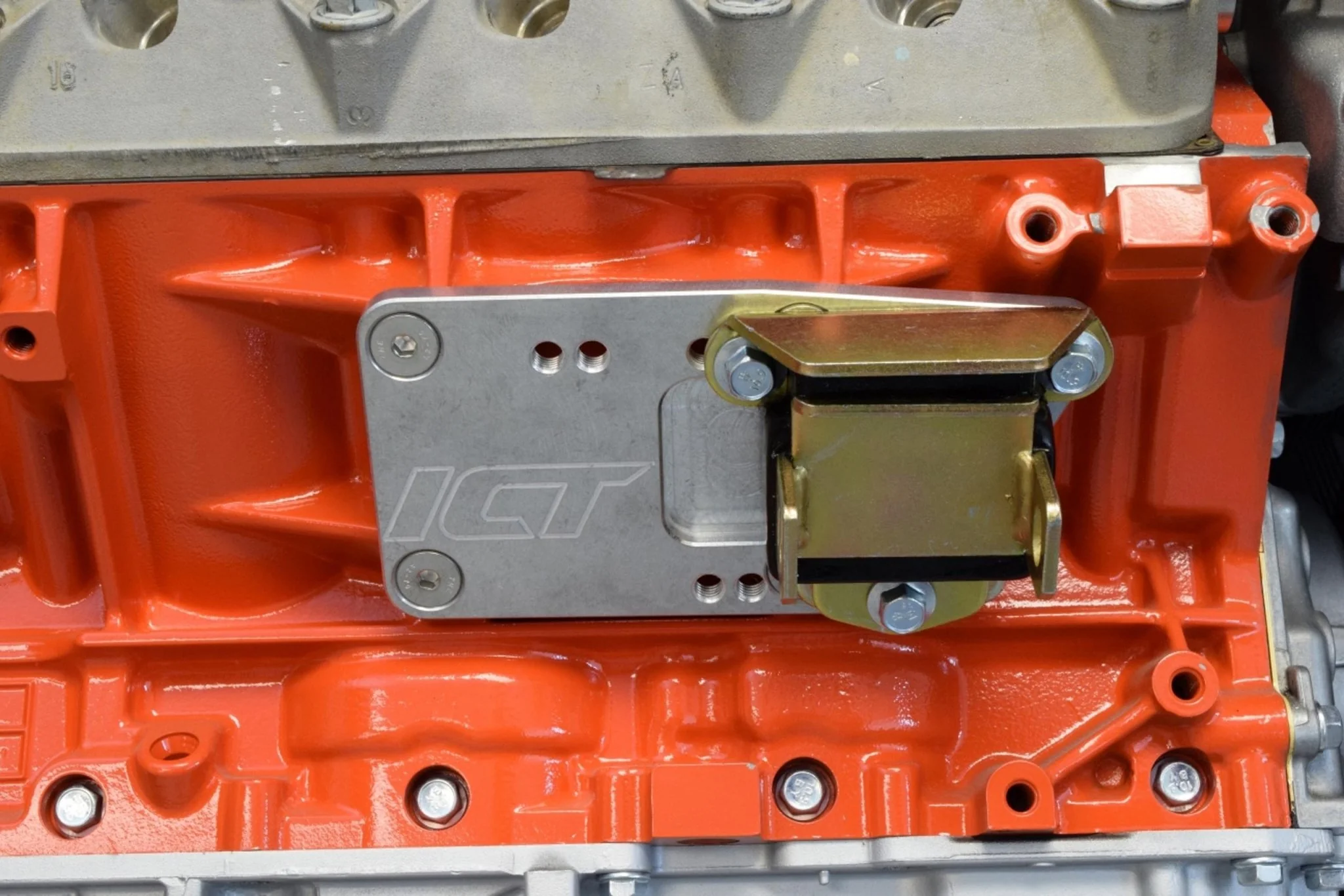

There are 4 positions for maximum adjustment of engine (from .100" forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~, Secondary positions are: .600", 1.86", and 2.36" engine moved forward)

These swap plates will shift the crankshaft centerline up .177" above factory small block location.

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Nova              62-67

• Chevrolet Truck              47-55
• Chevrolet Corvette C4   84-96

At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning
