LS Swap Alternator Bracket LS1 LS3 LSX LQ4 LQ9 4.8L 5.3L 6.0L

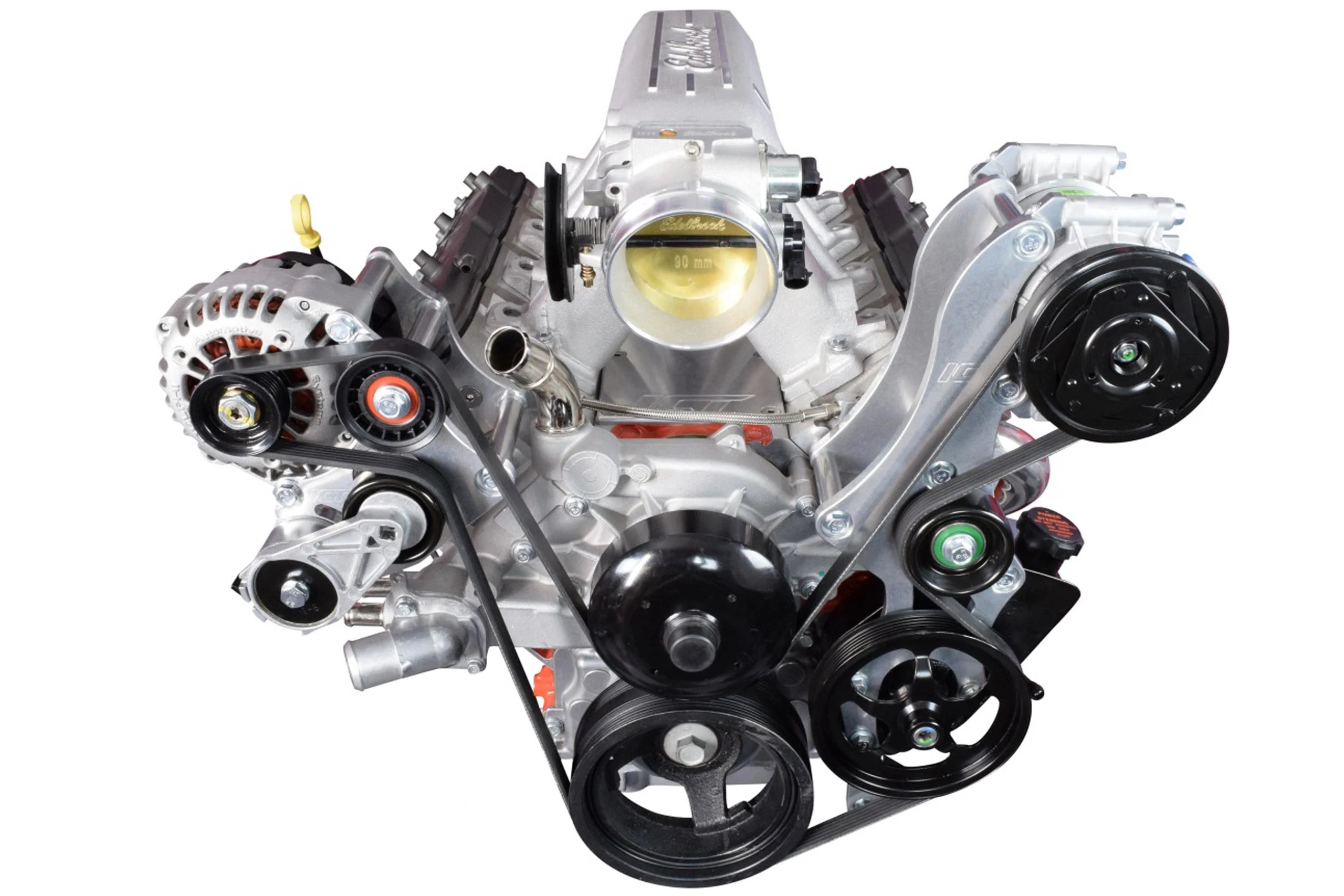

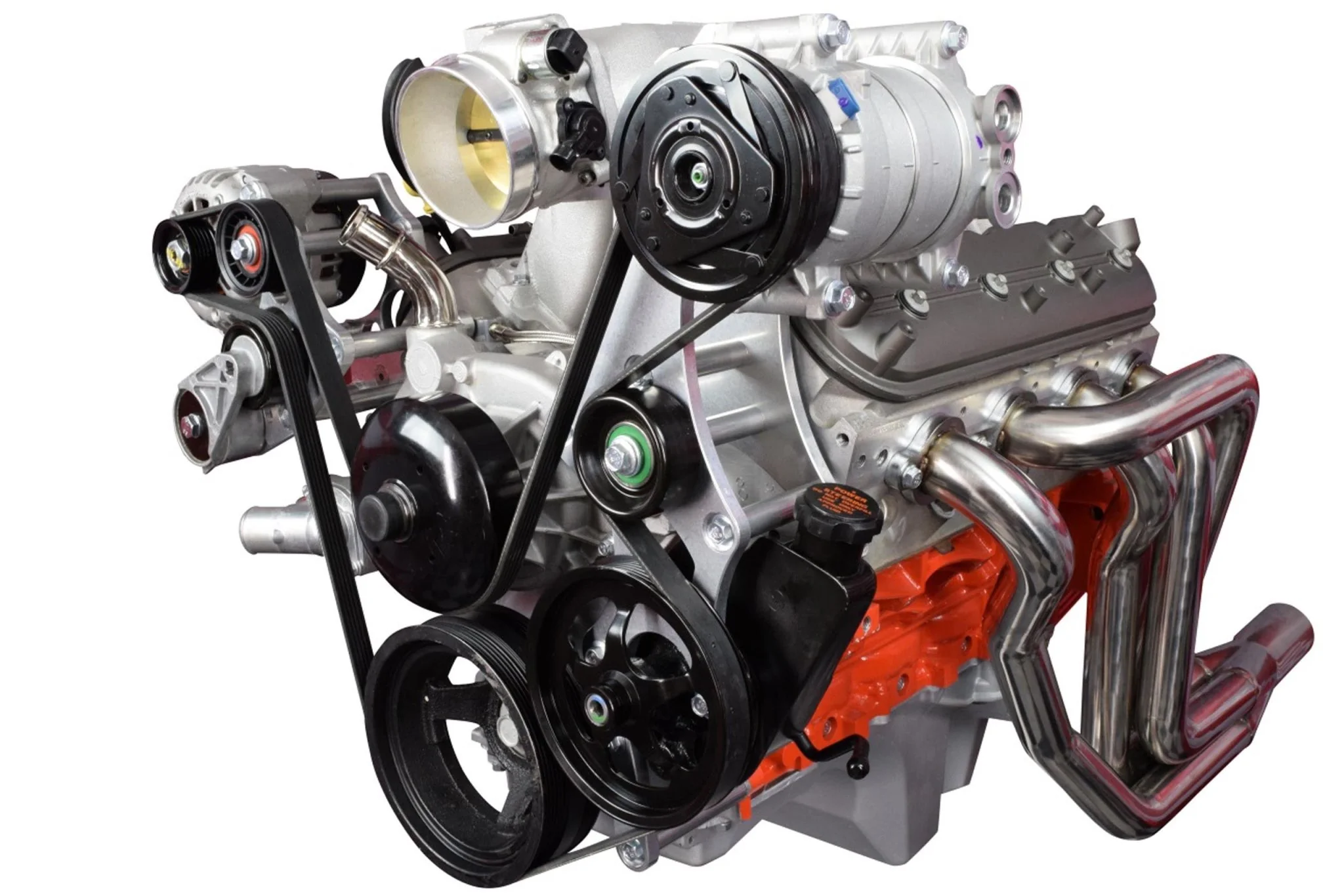

LS Swap Alternator Bracket
This kit is designed specifically for an LS swapped second generation 1996-2004 S10
- This kit uses Truck/SUV (or LS3/L99 Camaro) crank pulley

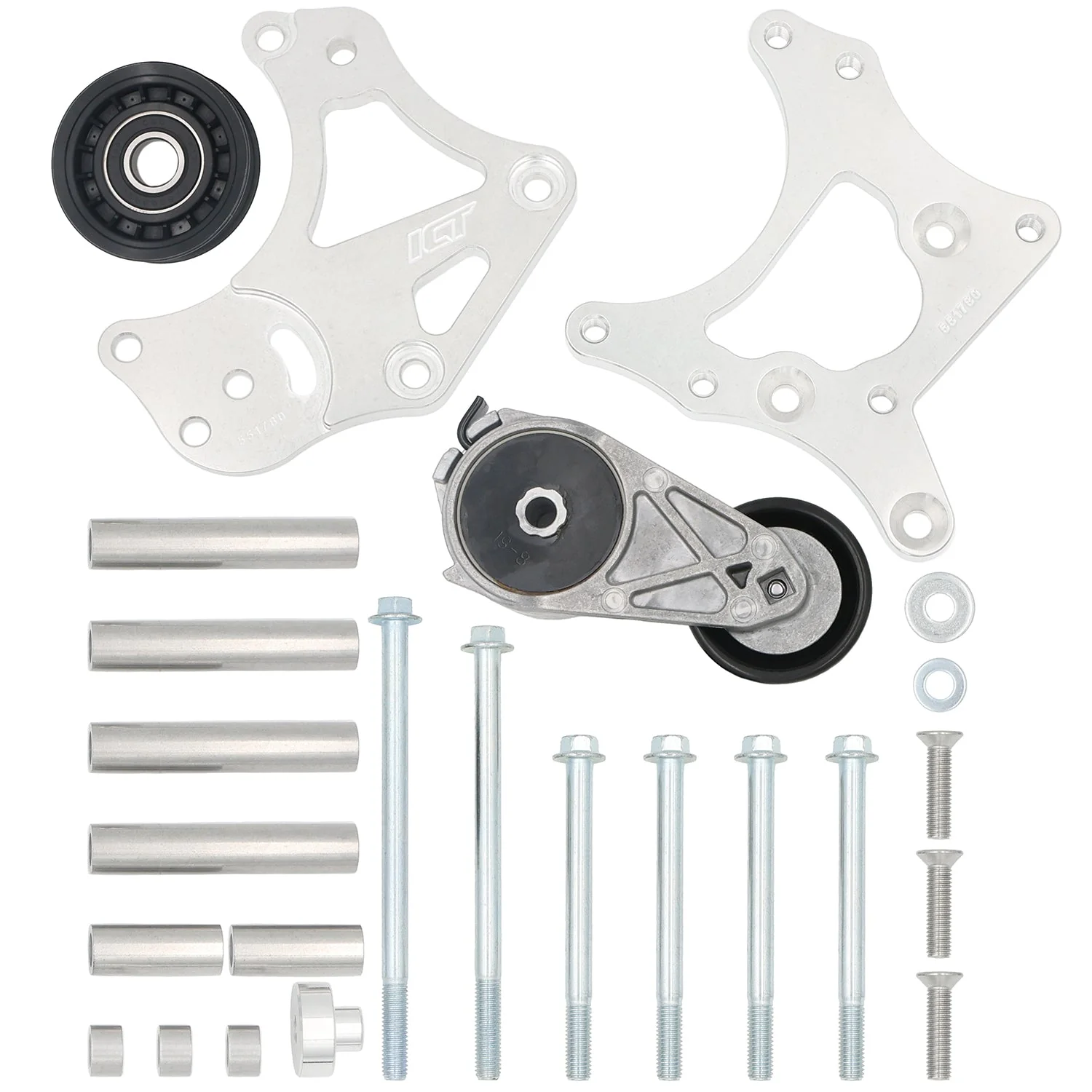

- Includes: bracket, idler pulley, tensioner, and mounting hardware
- Can be used with standard (105amp) or high amp (145/160amp) LS style alternators. (will not fit Corvette/CTSV or 2010-15 Camaro large bolt pattern alternators)
- Designed to be paired with a 551779-3 A/C compressor and power steering pump bracket kit
- Compatible with 965K6 belt when used with 551779 bracket kit
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- This kit uses USA made (belt tensioner, spacers, brackets)
Compatible with (based on vehicle 3D scans by ICT)
- Chevrolet Truck 96-98
- Chevrolet S10 94-04
Belt lengths when used with:
- 551127 985K6 with 105amp alt
- 551523 775K6 with 105amp alt
- 551321-LS01 785K6 with 105amp alt
- 551785 775K6 with 105amp alt
- 551581 763K6 with 105amp alt
- 551706 872K6 with 105amp alt
- 551776 730K6 with 105amp alt
