Oil Pump Alignment Tool

Used when temporarily removing an oil pump (such as doing a cam swap), then re-installing the pump

• Compatible with all GM Gen V LT series engines from 2014-Present
• Compatible with engine RPO codes: LT1 LT2 L82 L83 L84 L86 L87 LV3 L8B LT4 LT5
• Machined from USA billet aluminum for perfect accuracy. package includes: 2 installation Guide
• Failure to properly align the oil pump may result in low oil pressure
• Made In Wichita, Kansas From Aerospace Grade, USA Billet Aluminum

Instructions

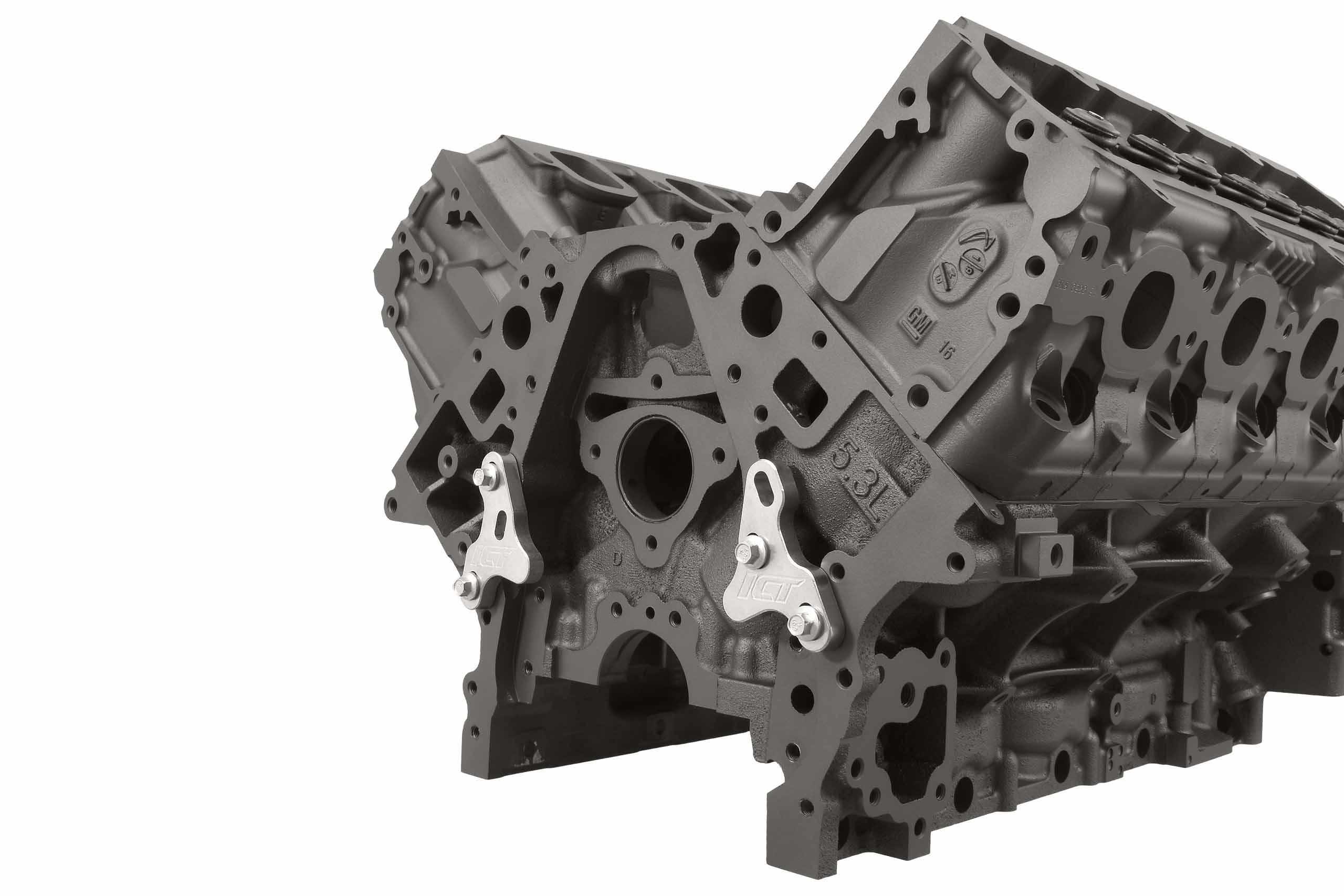

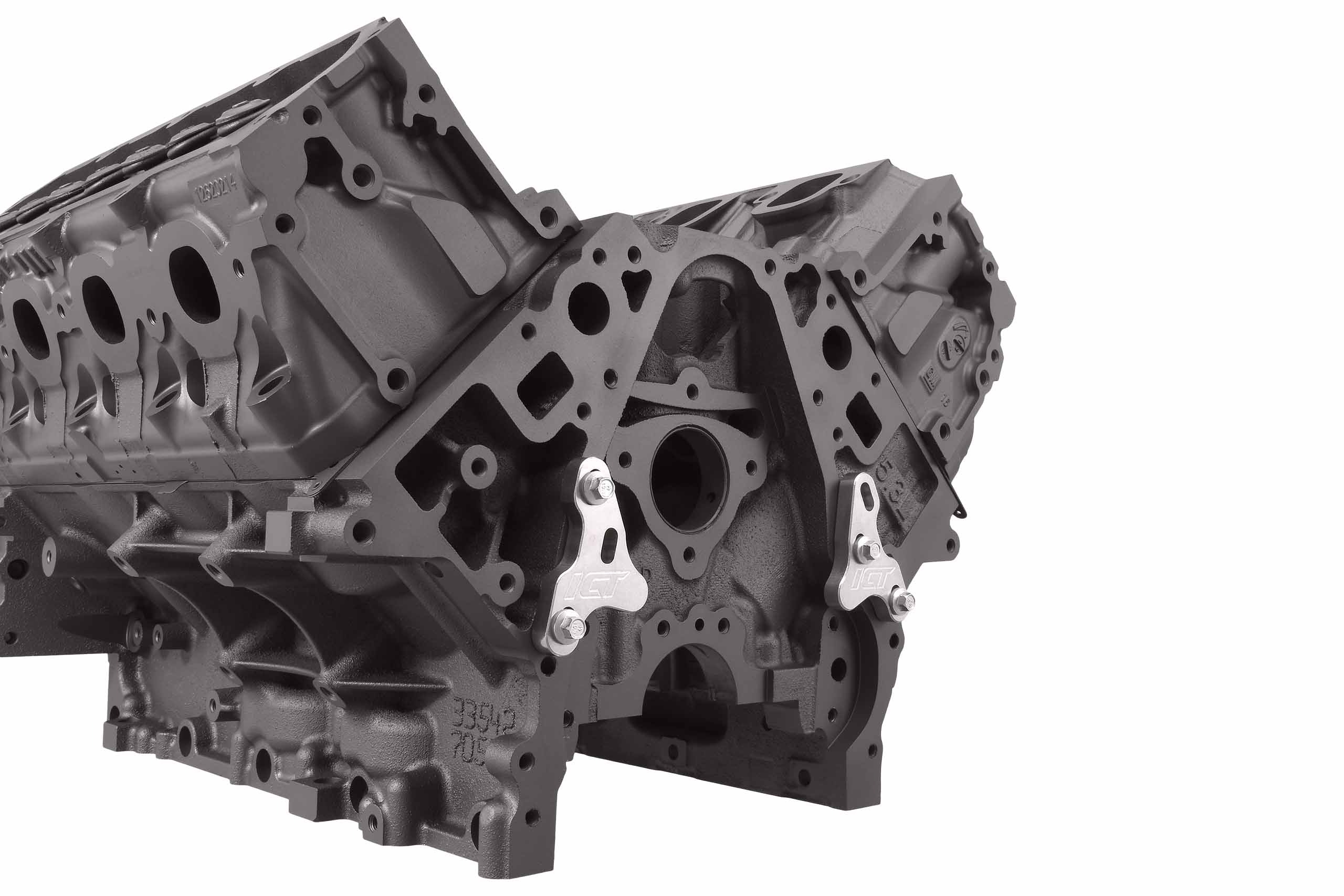

• Install the alignment tools above the existing oil pump (see pictures), then loosely tighten the tool bolts, slide the tools against the oil pump, then tighten the bolts to keep this position

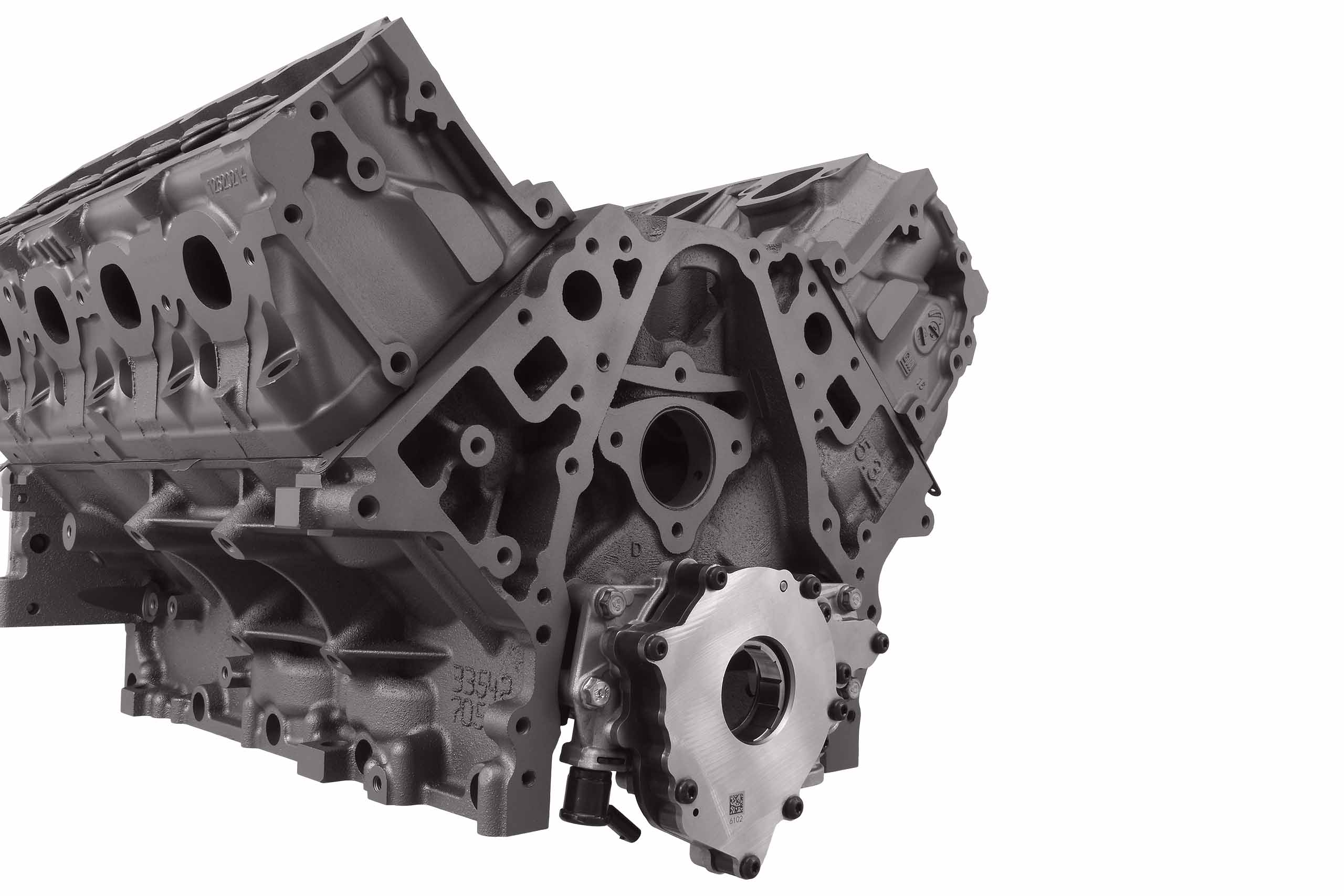

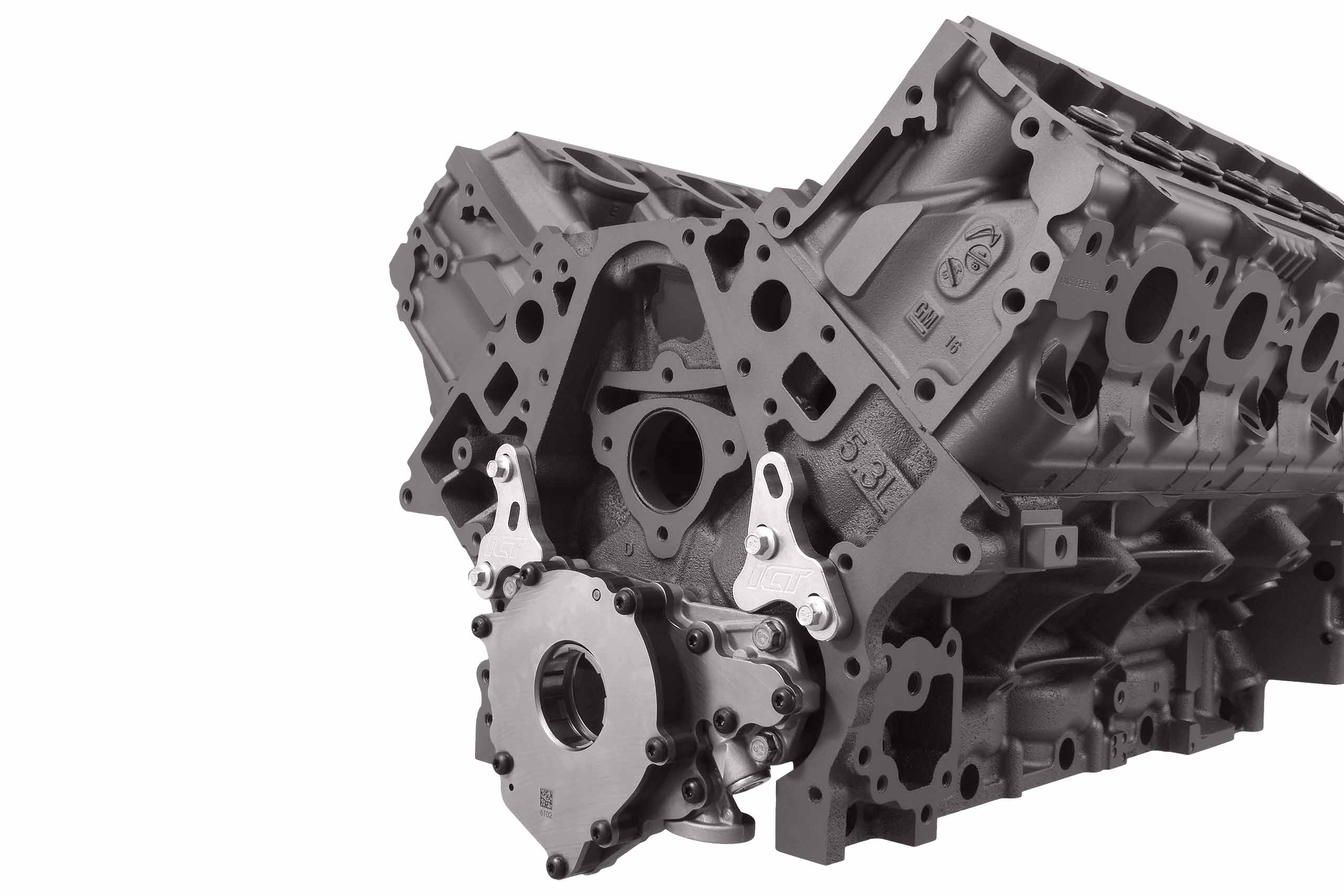

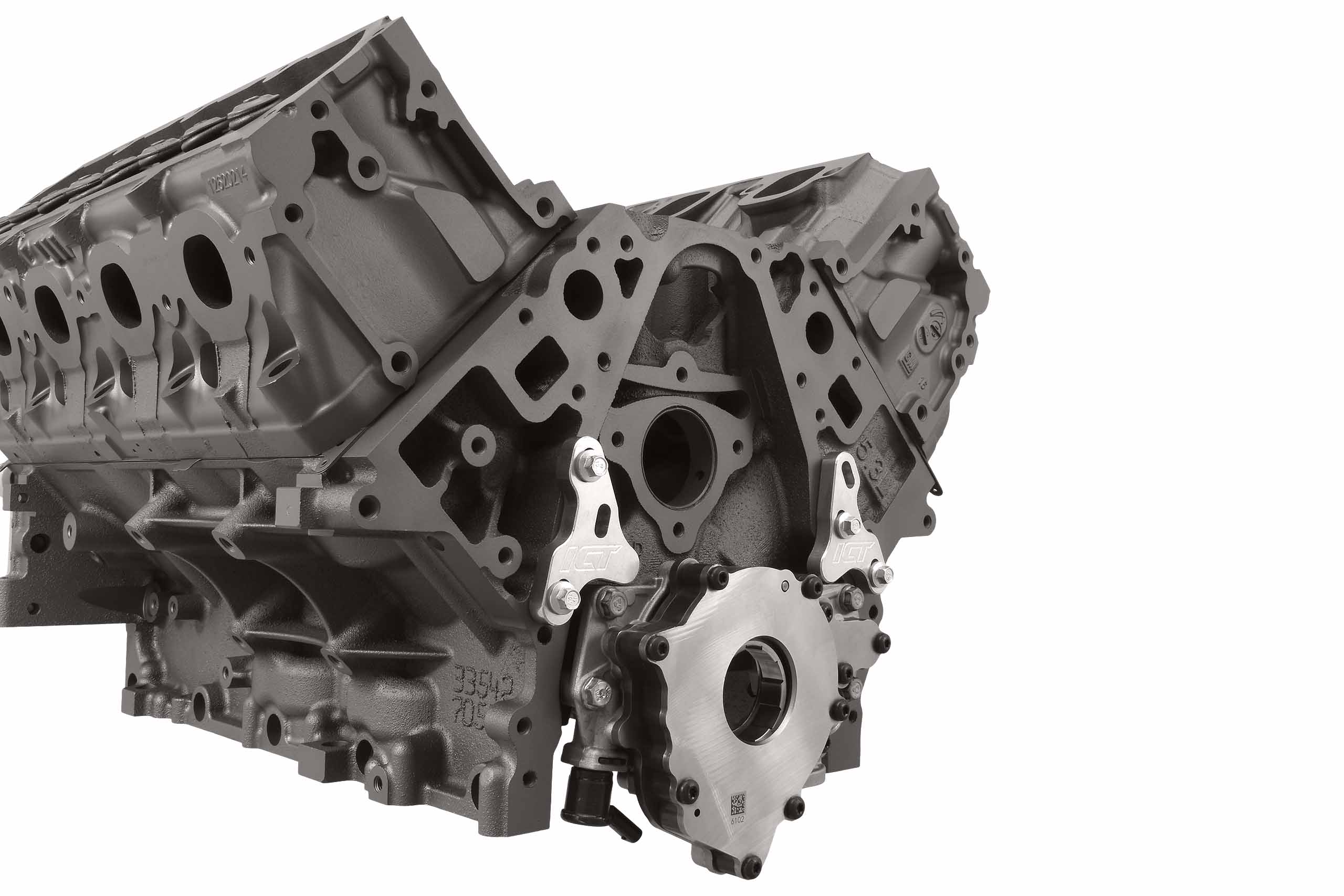

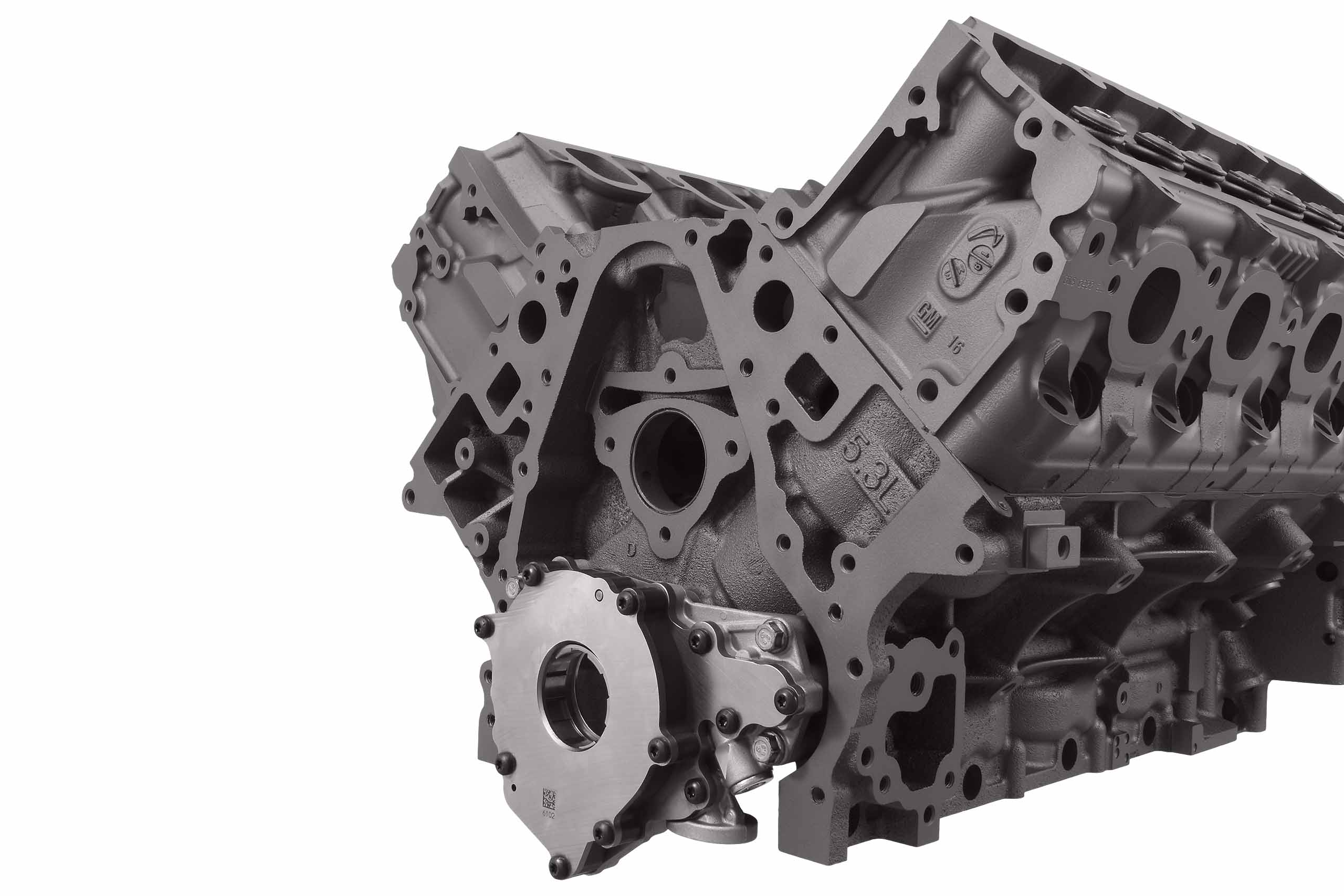

• Next after doing your camshaft swap, re-install the oil pump, loosely tighten the oil pump bolts, then slide the oil pump up against the tools, then fully tighten the oil pump
