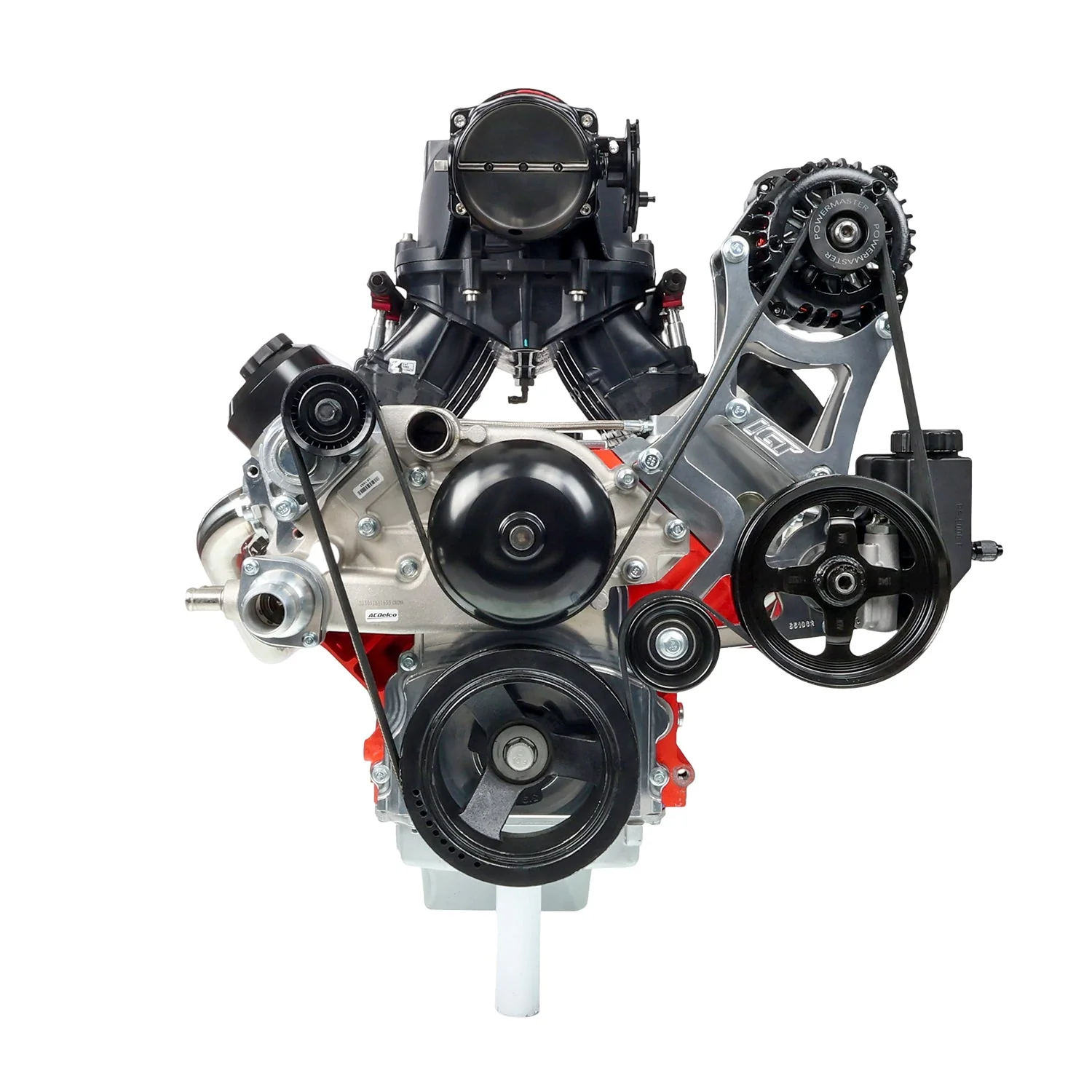

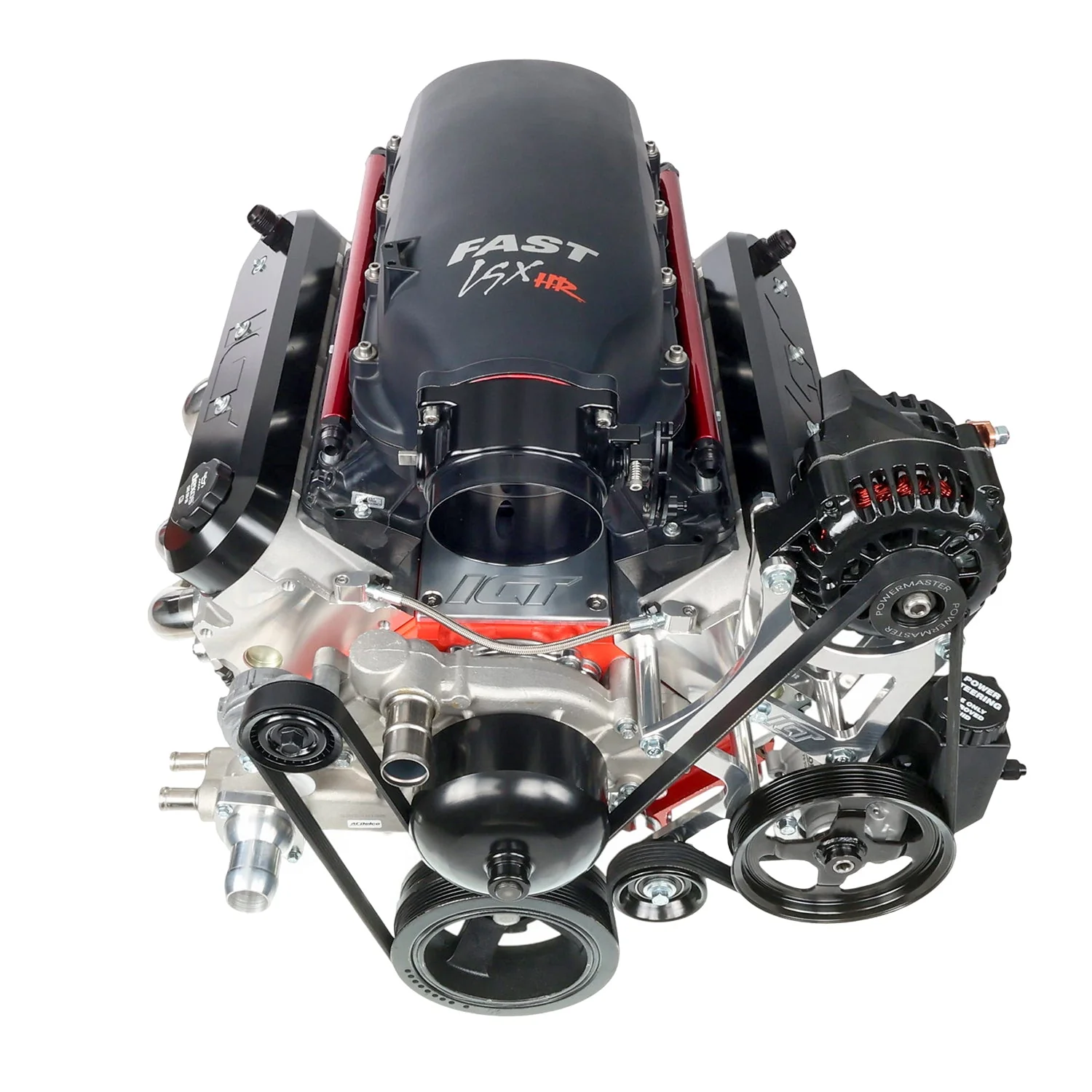

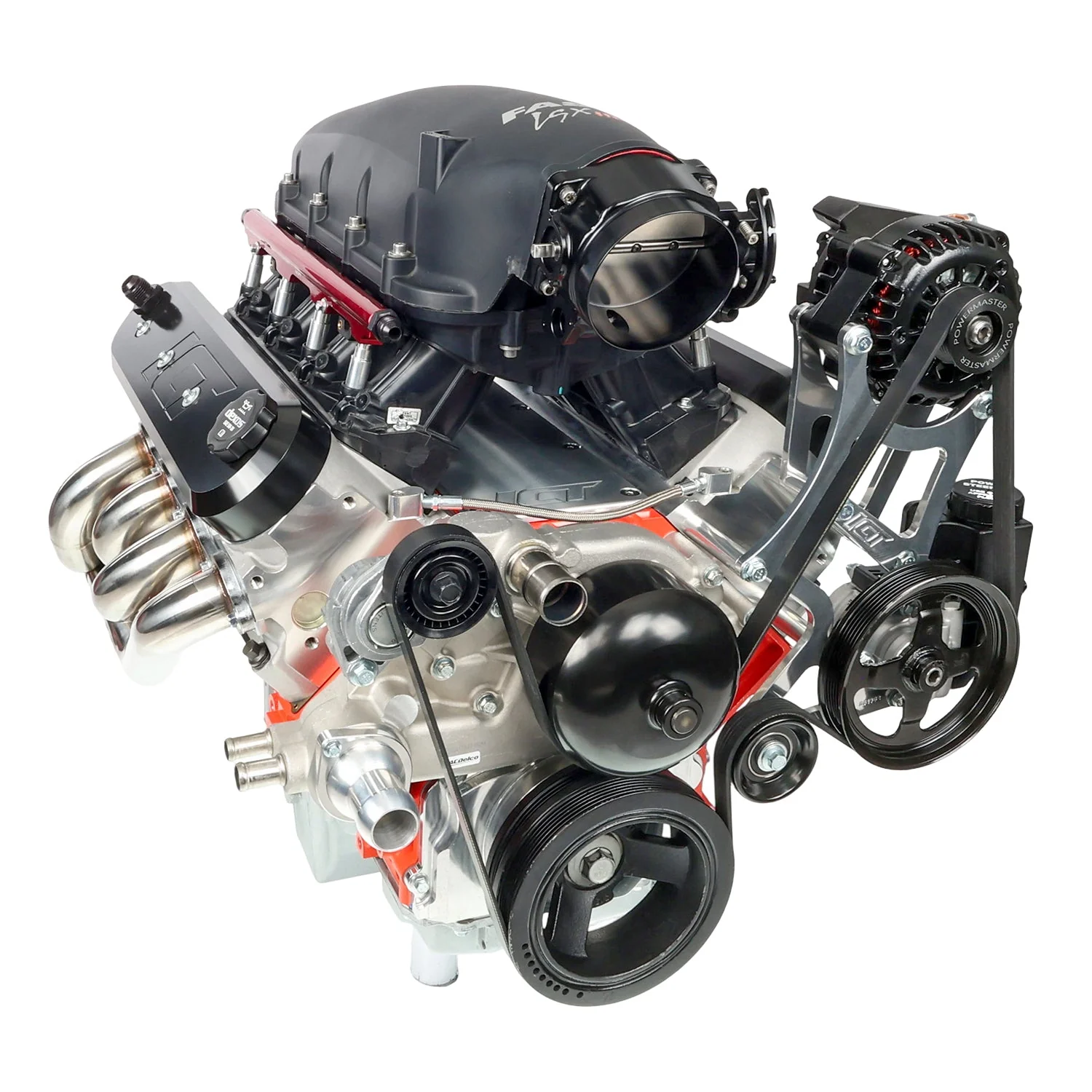

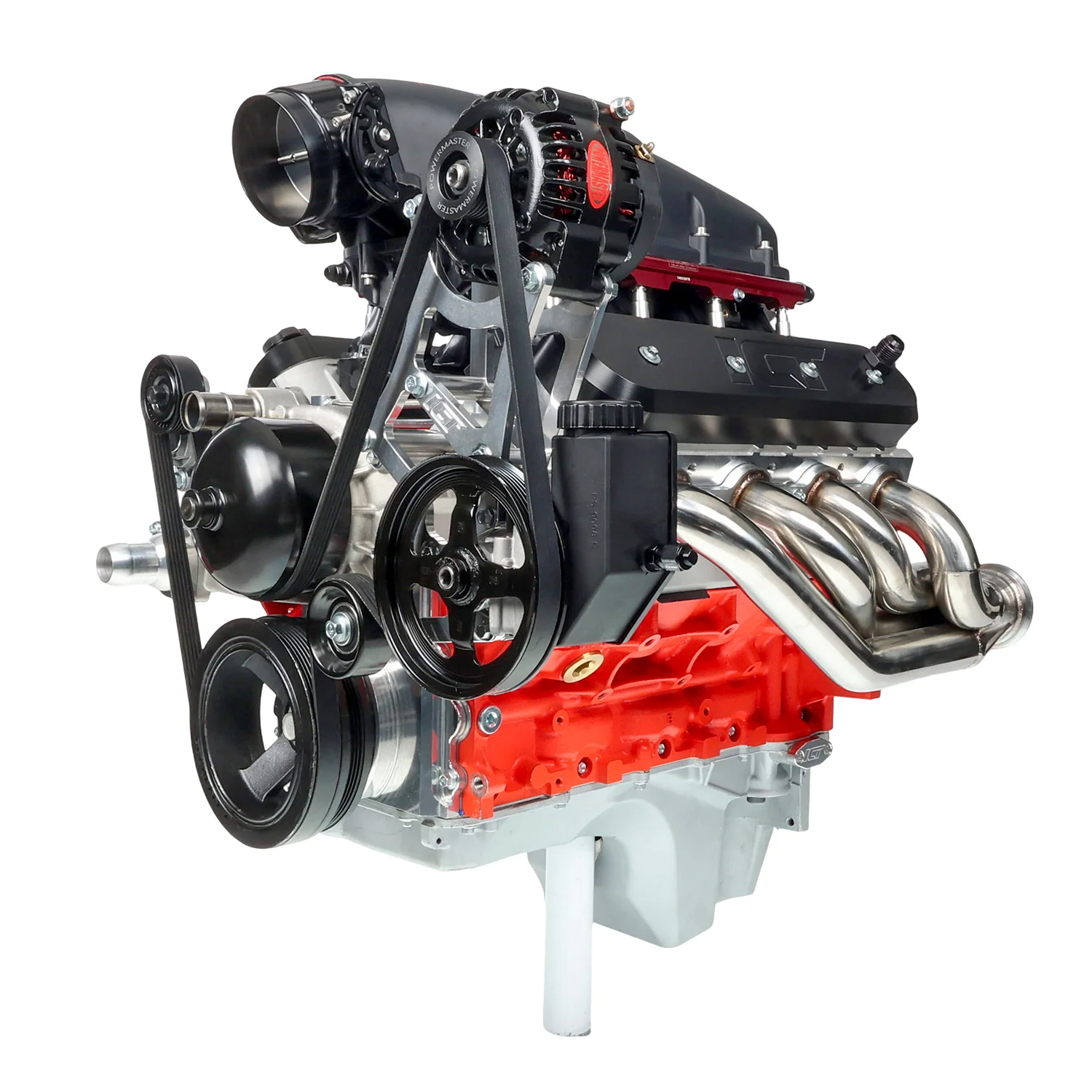

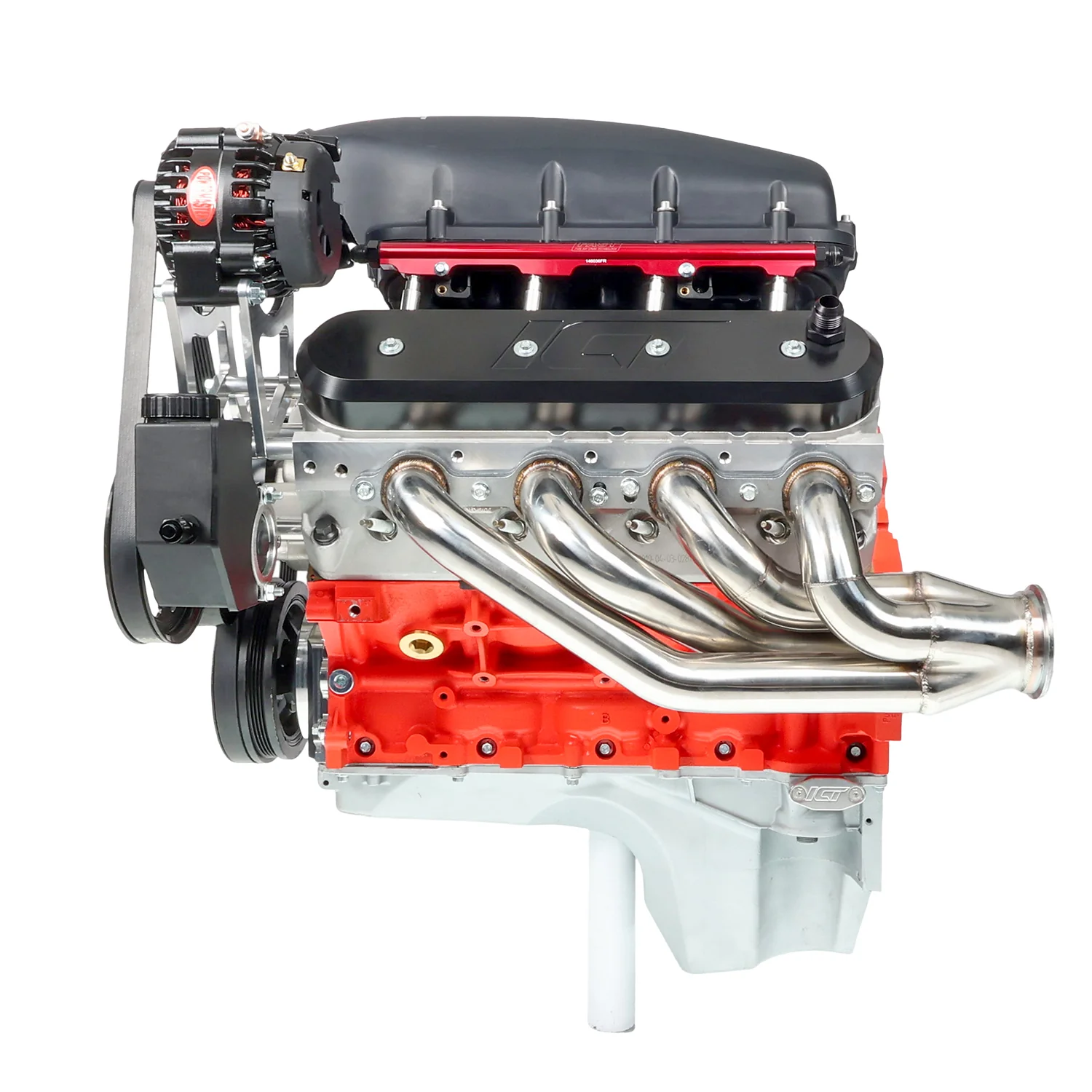

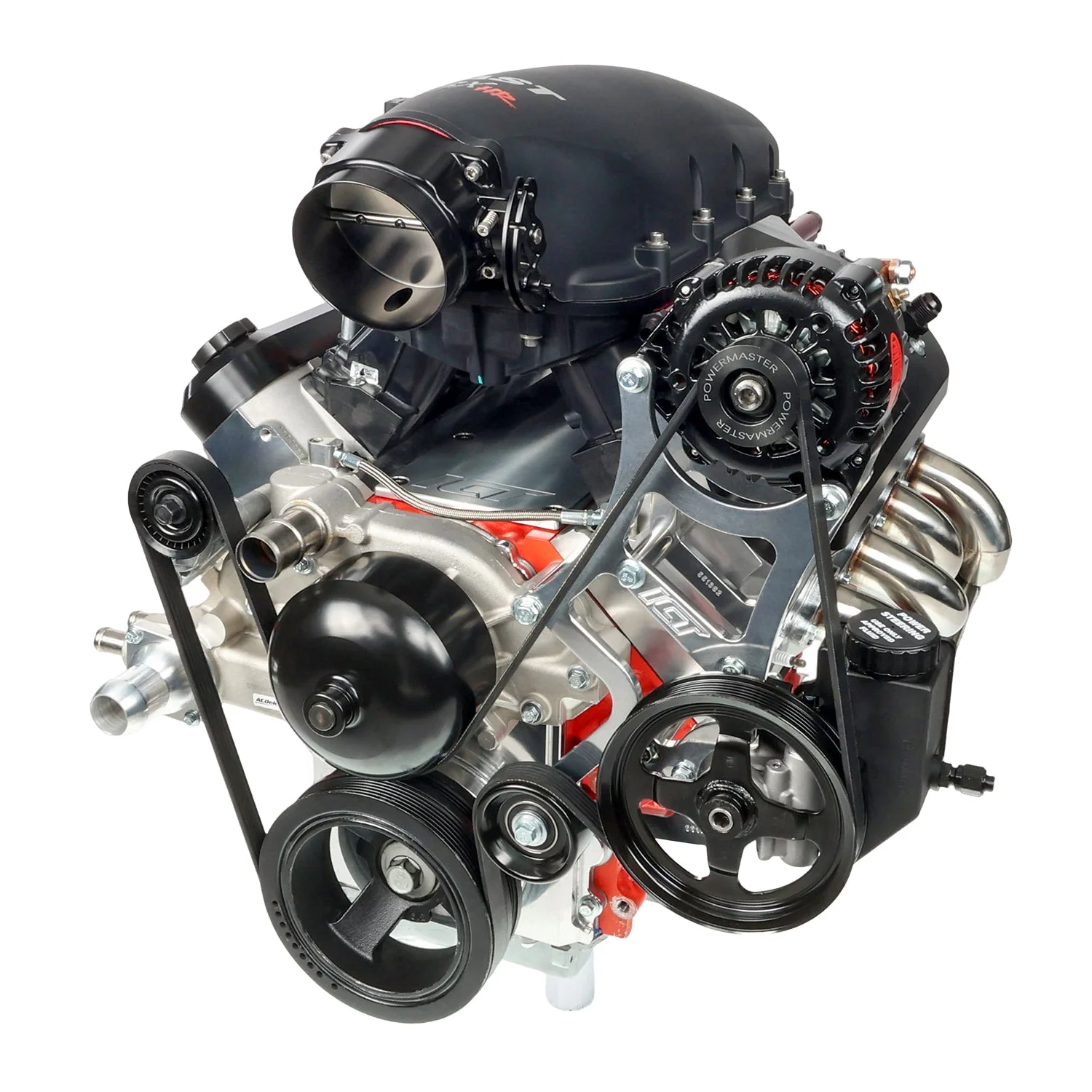

LS1 Camaro - High Mount LS Alternator / Power Steering Pump Bracket Kit
LS Alternator / Power Steering Pump Bracket Kit
Compatible with: 1998-02 Camaro (or GTO any year) crank pulley (ICT # BAL200)
- Compatible with: Jones pump/reservoir or Corvette 97-13 power steering pump & pulley (ICT # PUM401/2 or PUM100 & ICT # PUL100)
-

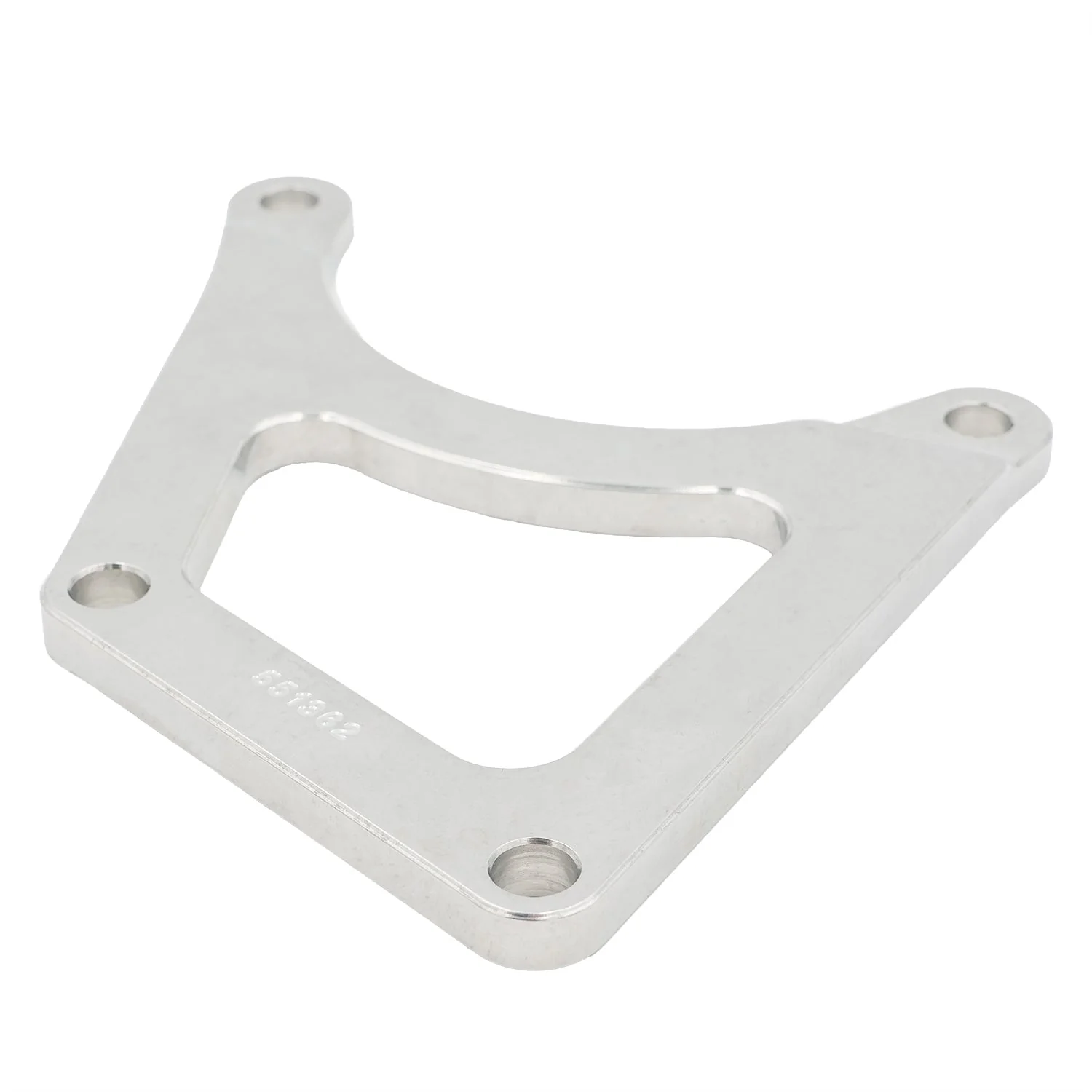

Includes: bracket, idler pulley, and mounting hardware
-
Alternator: Fits any LS alternator such as # ALT300, except Corvette/CTSV or 2010 up Camaro bolt pattern alternators
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Compatible with 845K6 (84.5 inch) belt when used with 105 amp alternator (ICT# ALT300) and factory belt tensioner. Compatible with 850K6 (85.0 inch) belt when used with 145/160 amp alternator and factory belt tensioner
Product Information
Product Information
Shipping & Returns
Shipping & Returns
















LS1 Camaro - High Mount LS Alternator / Power Steering Pump Bracket Kit
LS1 Camaro - High Mount LS Alternator / Power Steering Pump Bracket Kit
LS Alternator / Power Steering Pump Bracket Kit
Compatible with: 1998-02 Camaro (or GTO any year) crank pulley (ICT # BAL200)
- Compatible with: Jones pump/reservoir or Corvette 97-13 power steering pump & pulley (ICT # PUM401/2 or PUM100 & ICT # PUL100)
-
Includes: bracket, idler pulley, and mounting hardware
-
Alternator: Fits any LS alternator such as # ALT300, except Corvette/CTSV or 2010 up Camaro bolt pattern alternators
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Compatible with 845K6 (84.5 inch) belt when used with 105 amp alternator (ICT# ALT300) and factory belt tensioner. Compatible with 850K6 (85.0 inch) belt when used with 145/160 amp alternator and factory belt tensioner
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

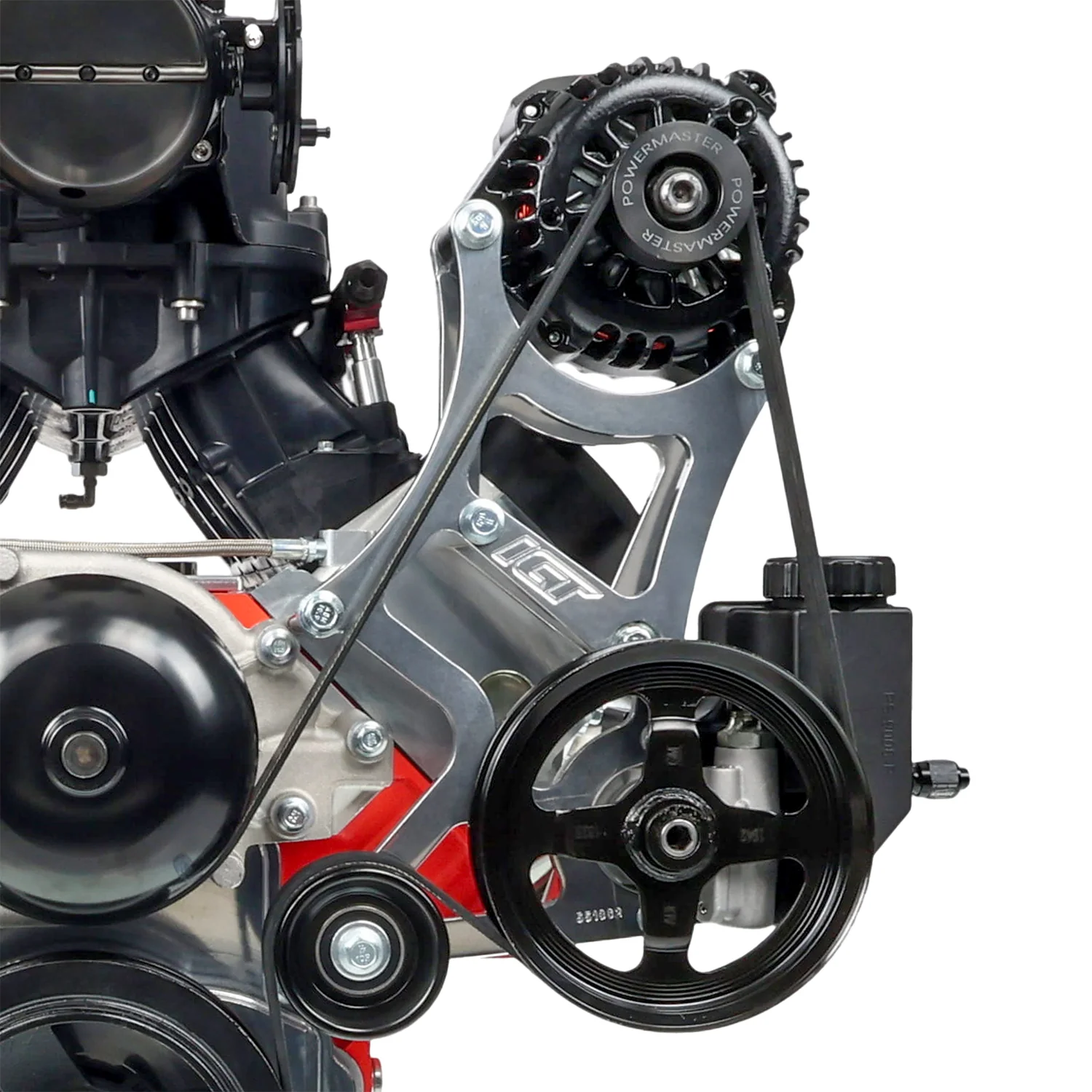

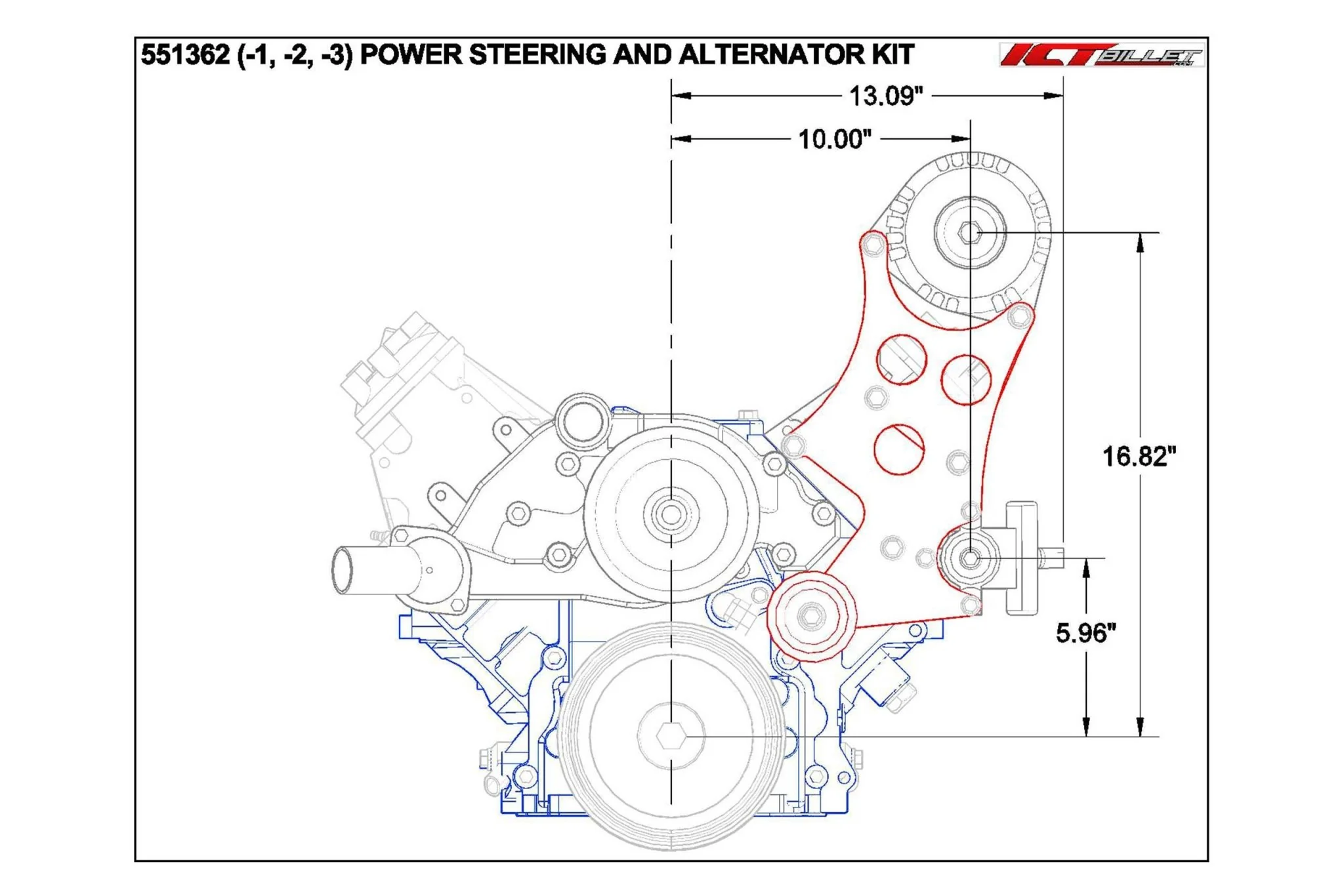

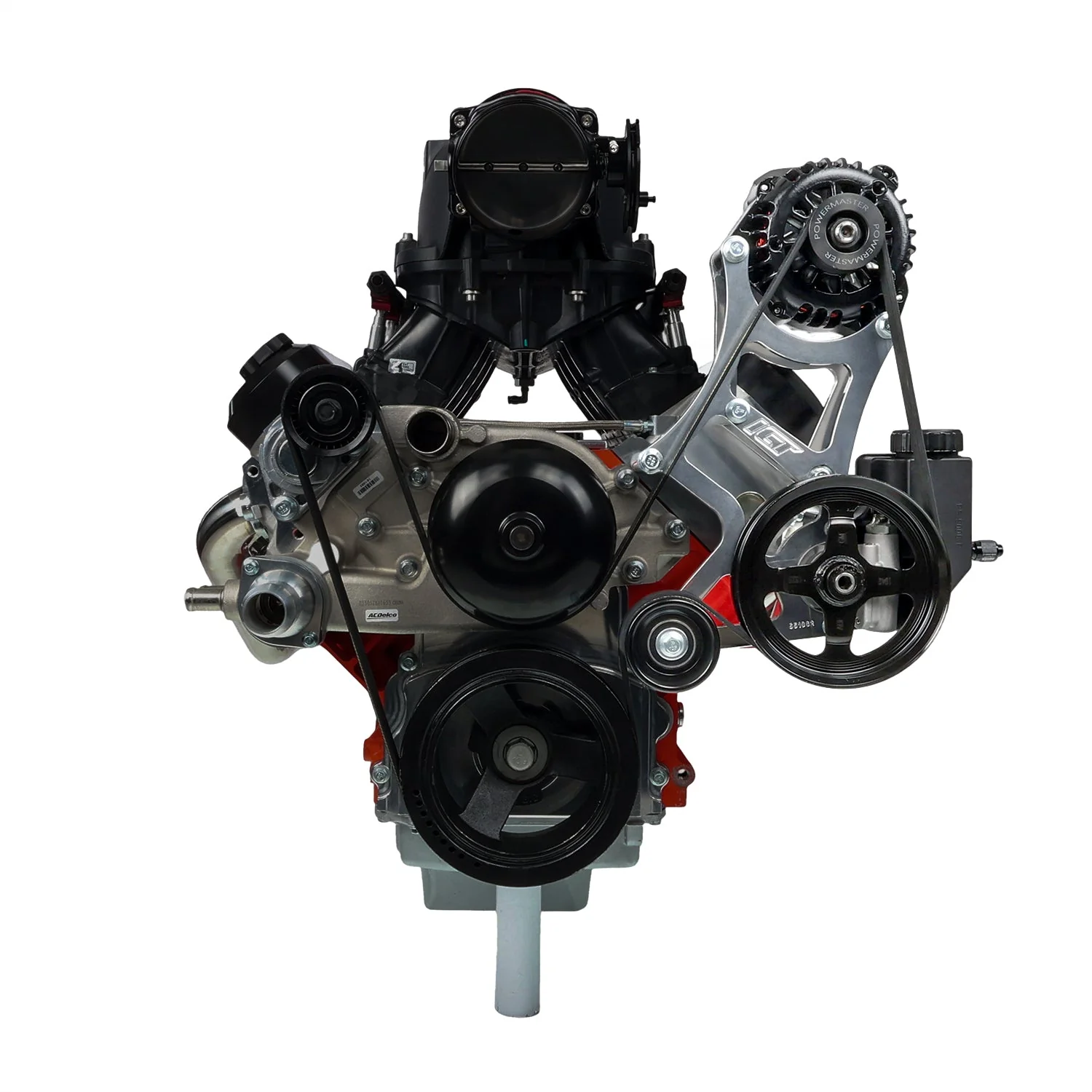

LS Alternator / Power Steering Pump Bracket Kit
Compatible with: 1998-02 Camaro (or GTO any year) crank pulley (ICT # BAL200)
- Compatible with: Jones pump/reservoir or Corvette 97-13 power steering pump & pulley (ICT # PUM401/2 or PUM100 & ICT # PUL100)
-

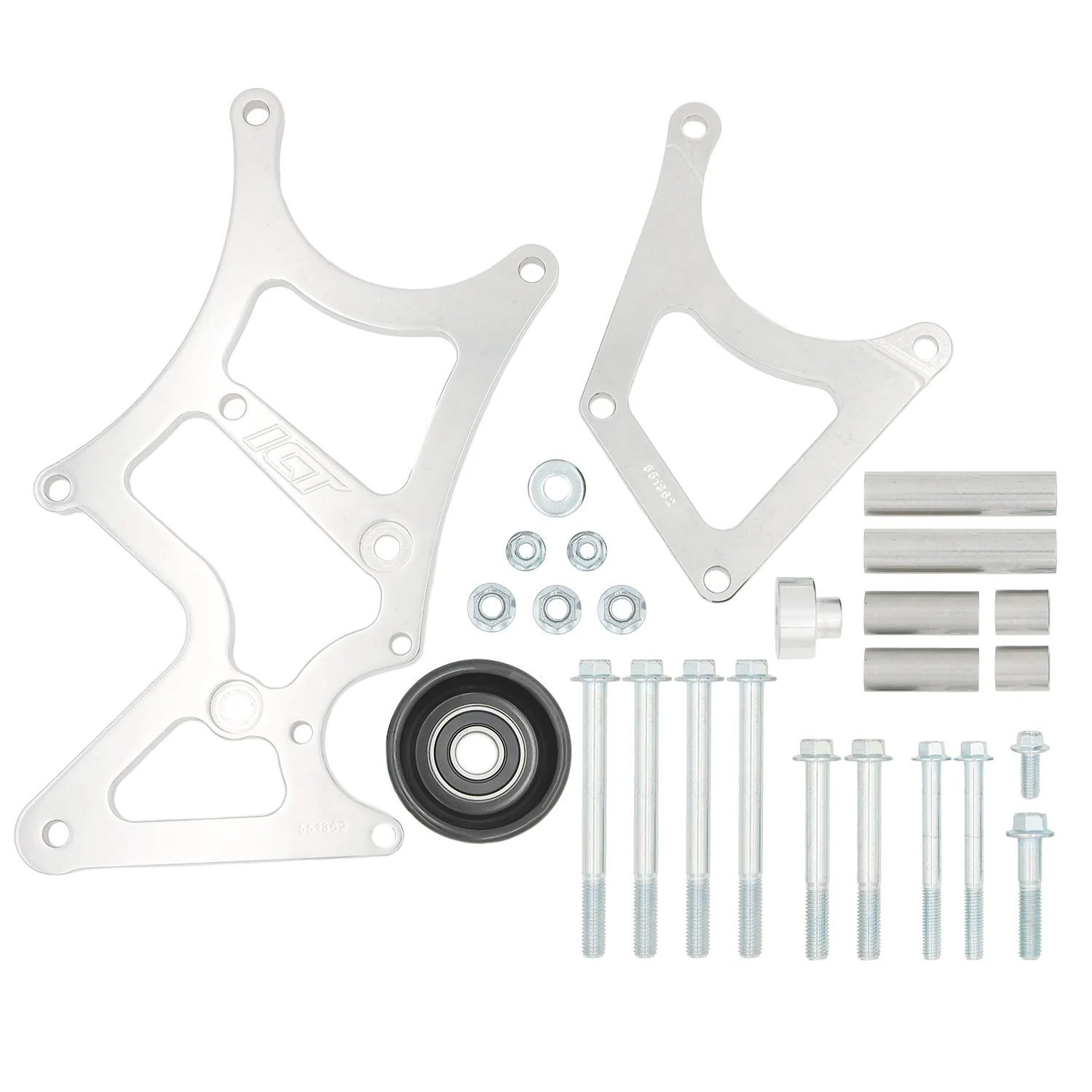

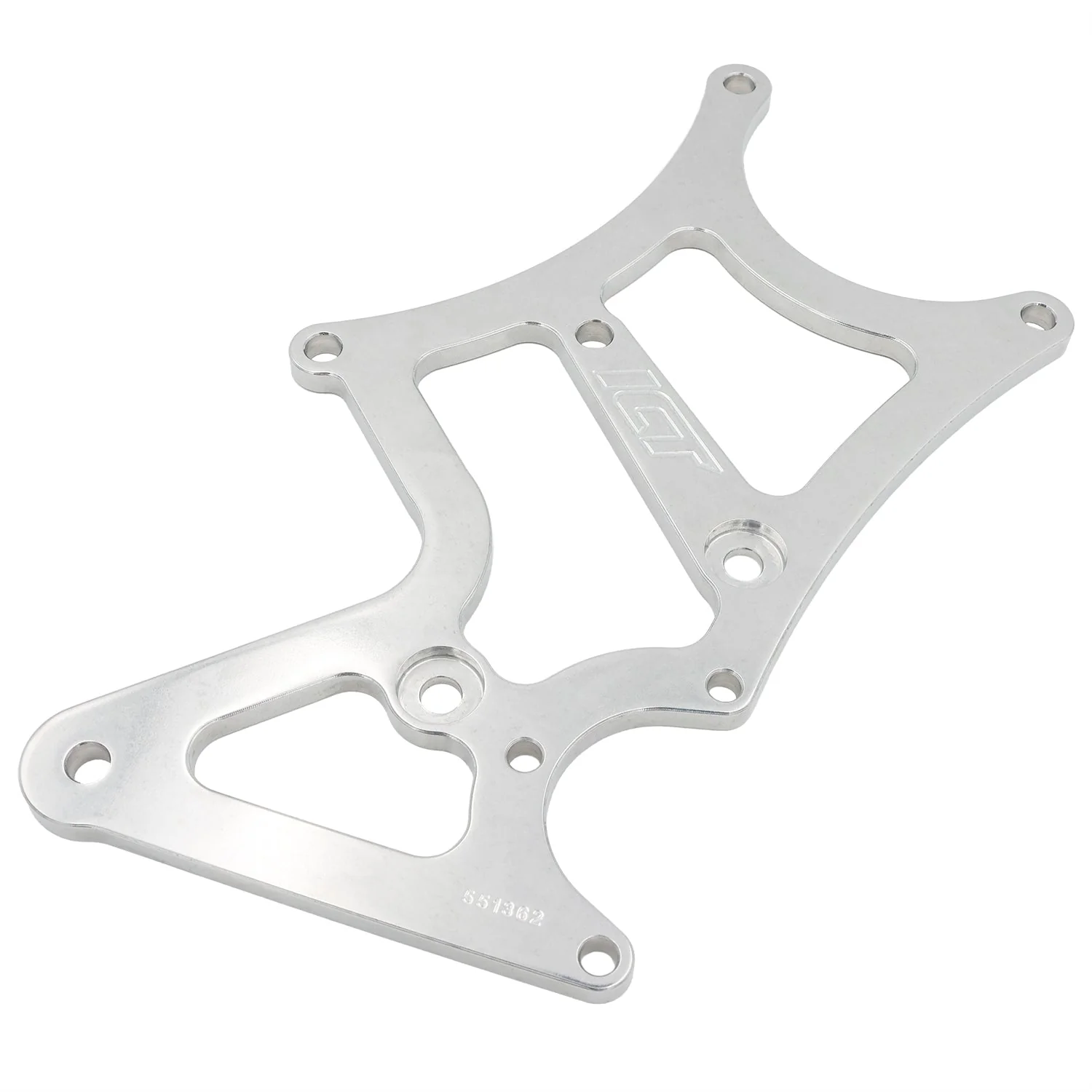

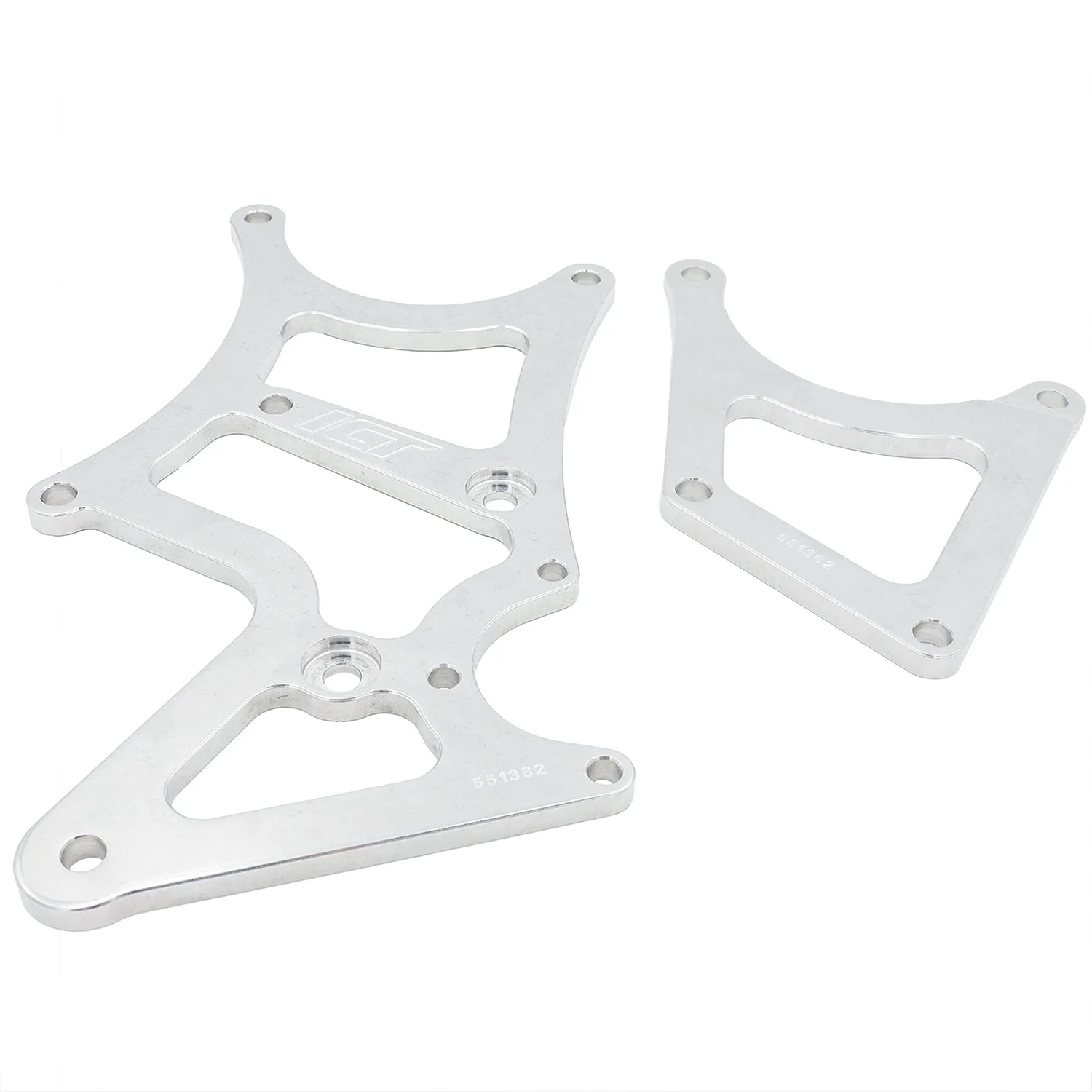

Includes: bracket, idler pulley, and mounting hardware
-
Alternator: Fits any LS alternator such as # ALT300, except Corvette/CTSV or 2010 up Camaro bolt pattern alternators
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Compatible with 845K6 (84.5 inch) belt when used with 105 amp alternator (ICT# ALT300) and factory belt tensioner. Compatible with 850K6 (85.0 inch) belt when used with 145/160 amp alternator and factory belt tensioner
