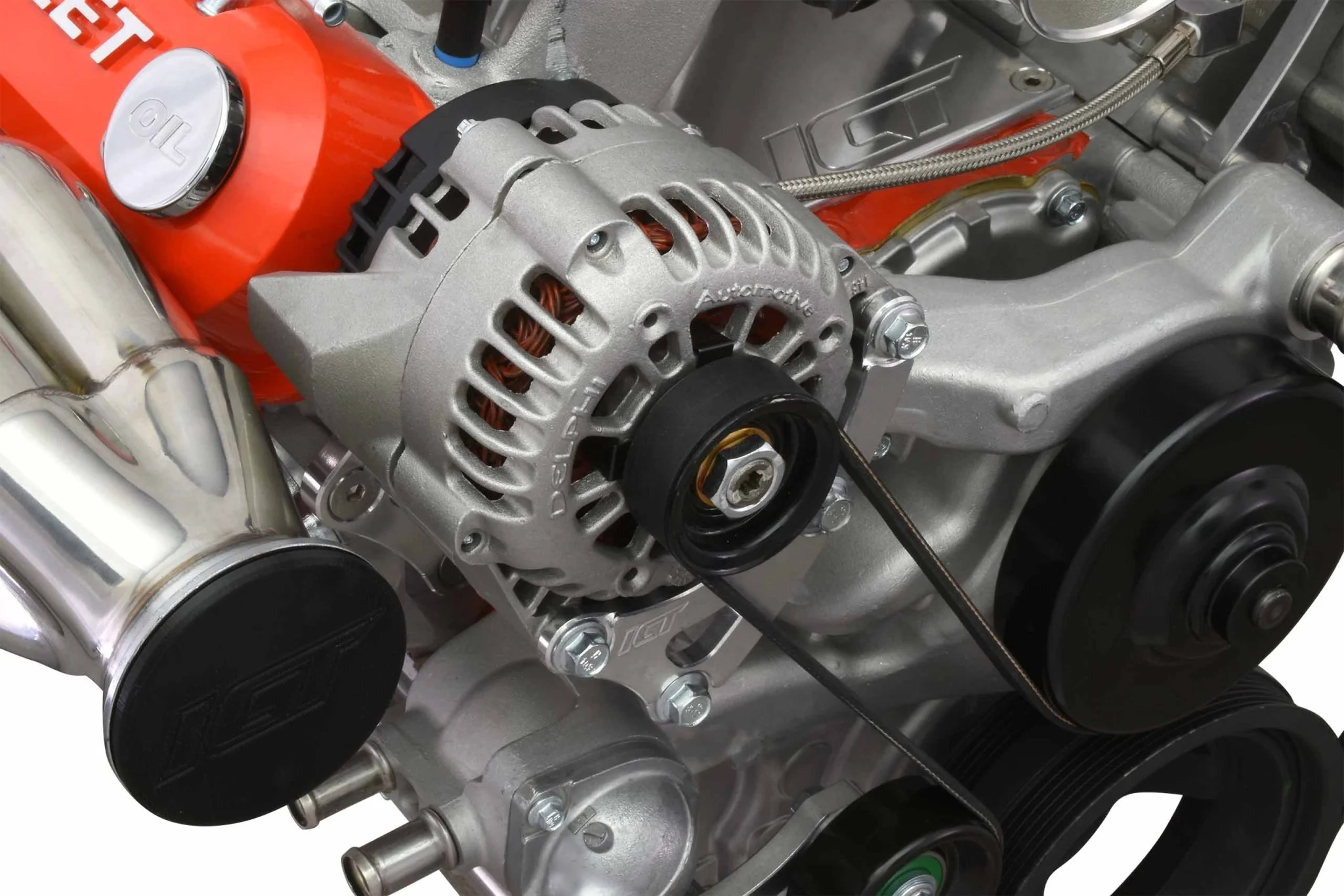

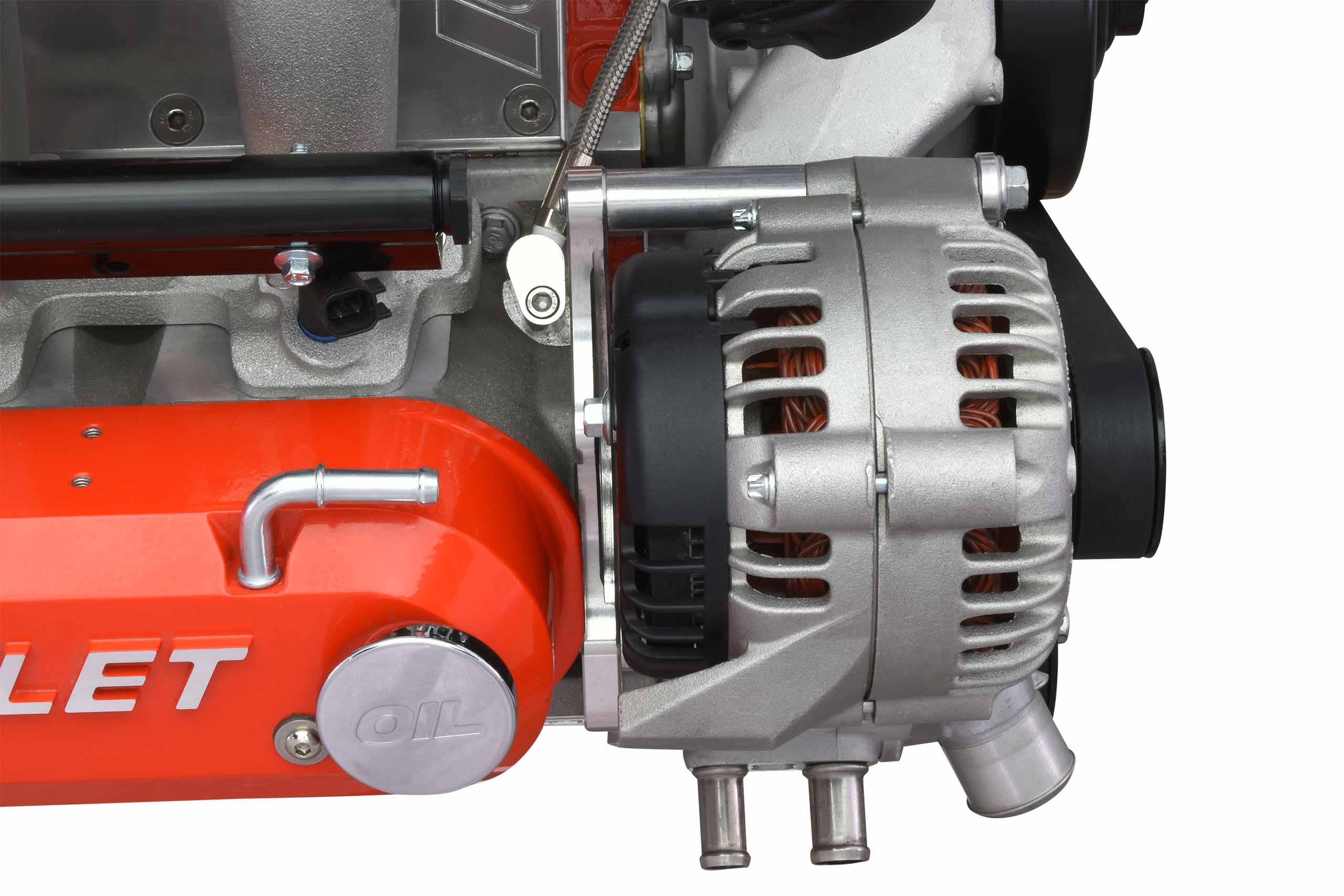

LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump
LS Truck Turbo Alternator Bracket
Water Pump - Compatible with: 1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)

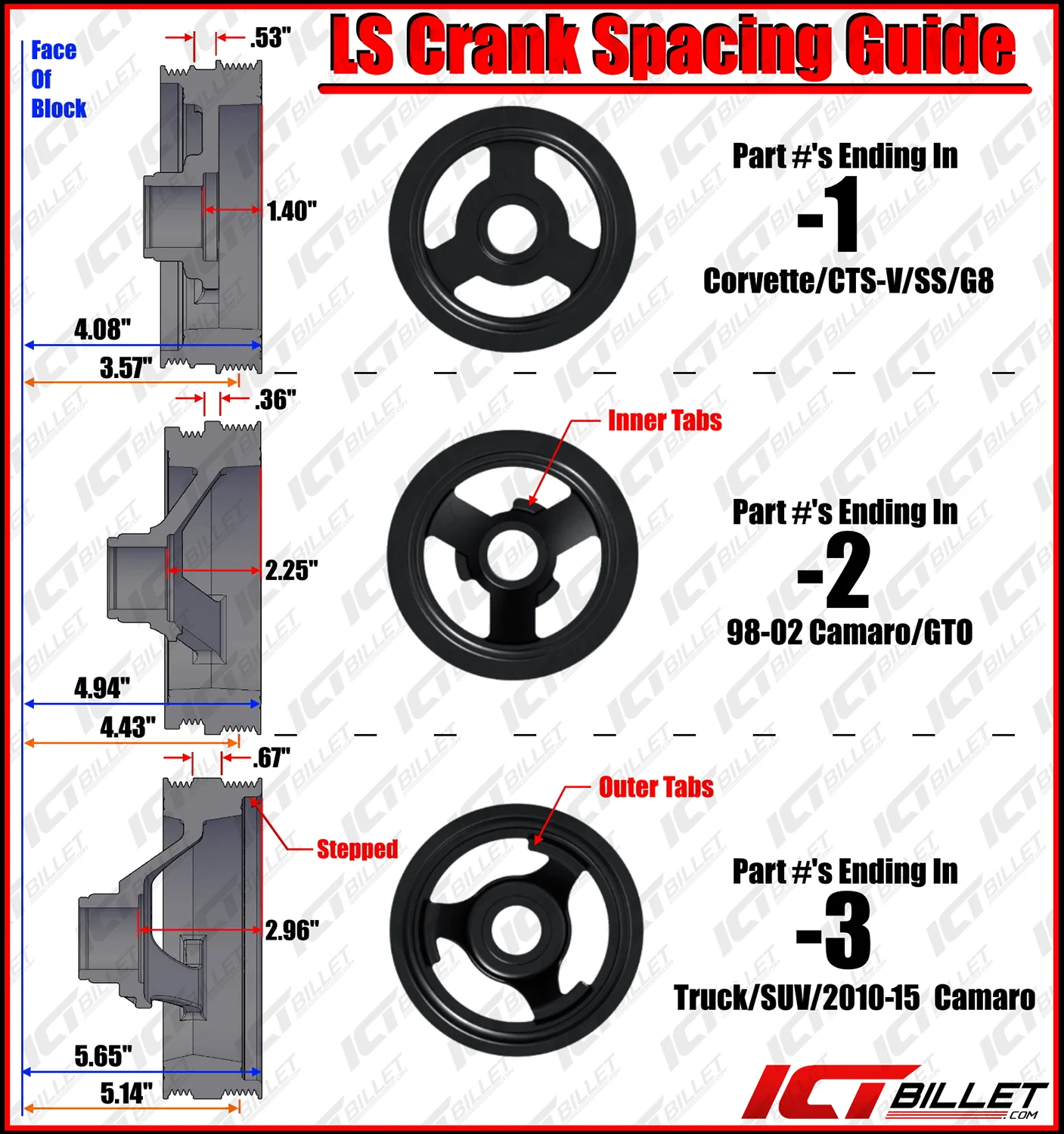

- Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)

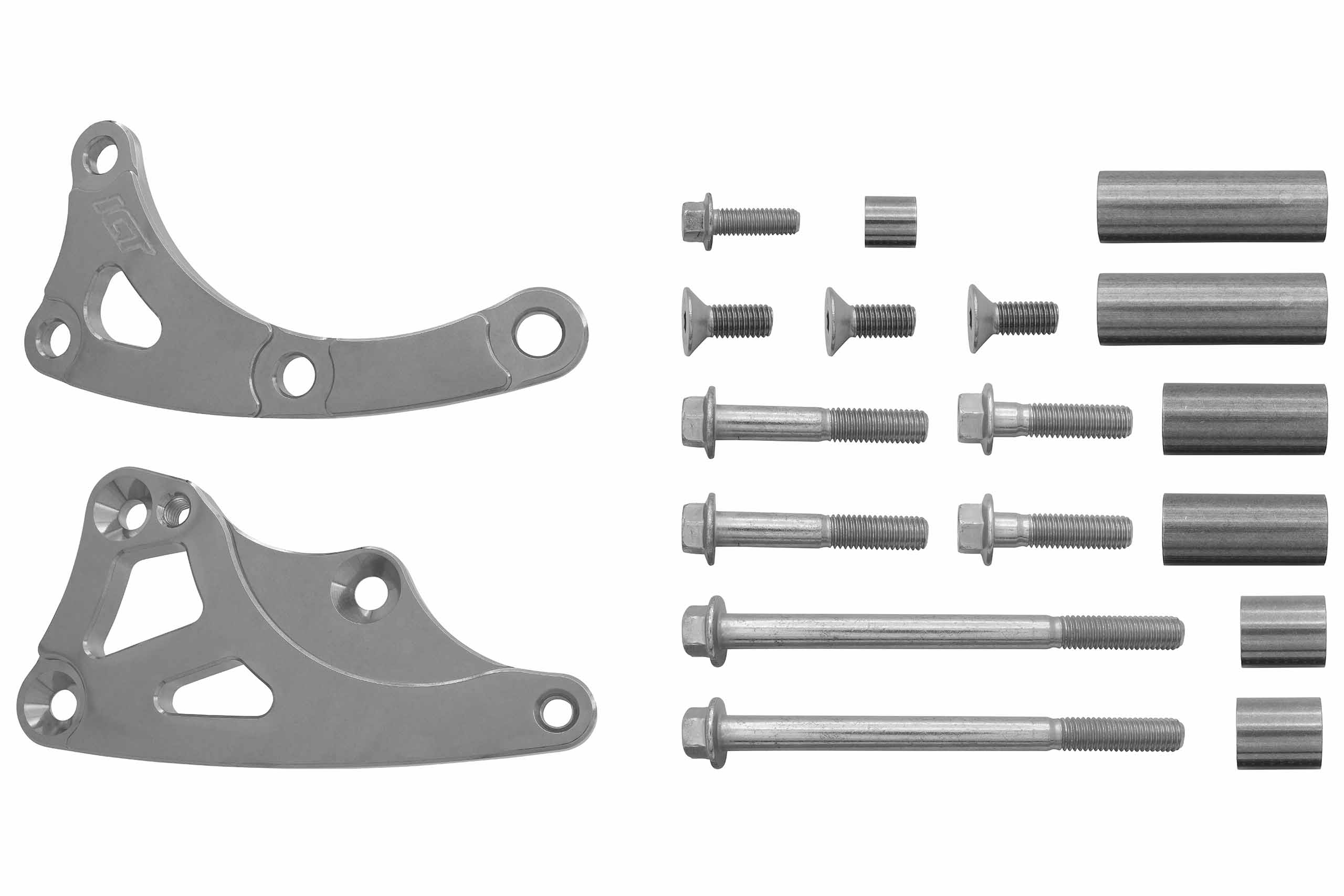

- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
- Compatible with all GM LS series engine cylinder heads
- If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin alternator) or WEALT40 (2-pin)
Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo. For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-LS01WP) *NOT compatible with ICT #551675 coolant crossover kit with steam vent port
Belt lengths when used with:
- 551971-LS3-3 865K6 with 105amp alt
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump
LS Truck Turbo Alternator Relocation Bracket for LS3 LS1 Water Pump
LS Truck Turbo Alternator Bracket
Water Pump - Compatible with: 1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
- Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)
- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
- Compatible with all GM LS series engine cylinder heads
- If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin alternator) or WEALT40 (2-pin)
Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo. For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-LS01WP) *NOT compatible with ICT #551675 coolant crossover kit with steam vent port
Belt lengths when used with:
- 551971-LS3-3 865K6 with 105amp alt
Original: $138.99
-70%$138.99
$41.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

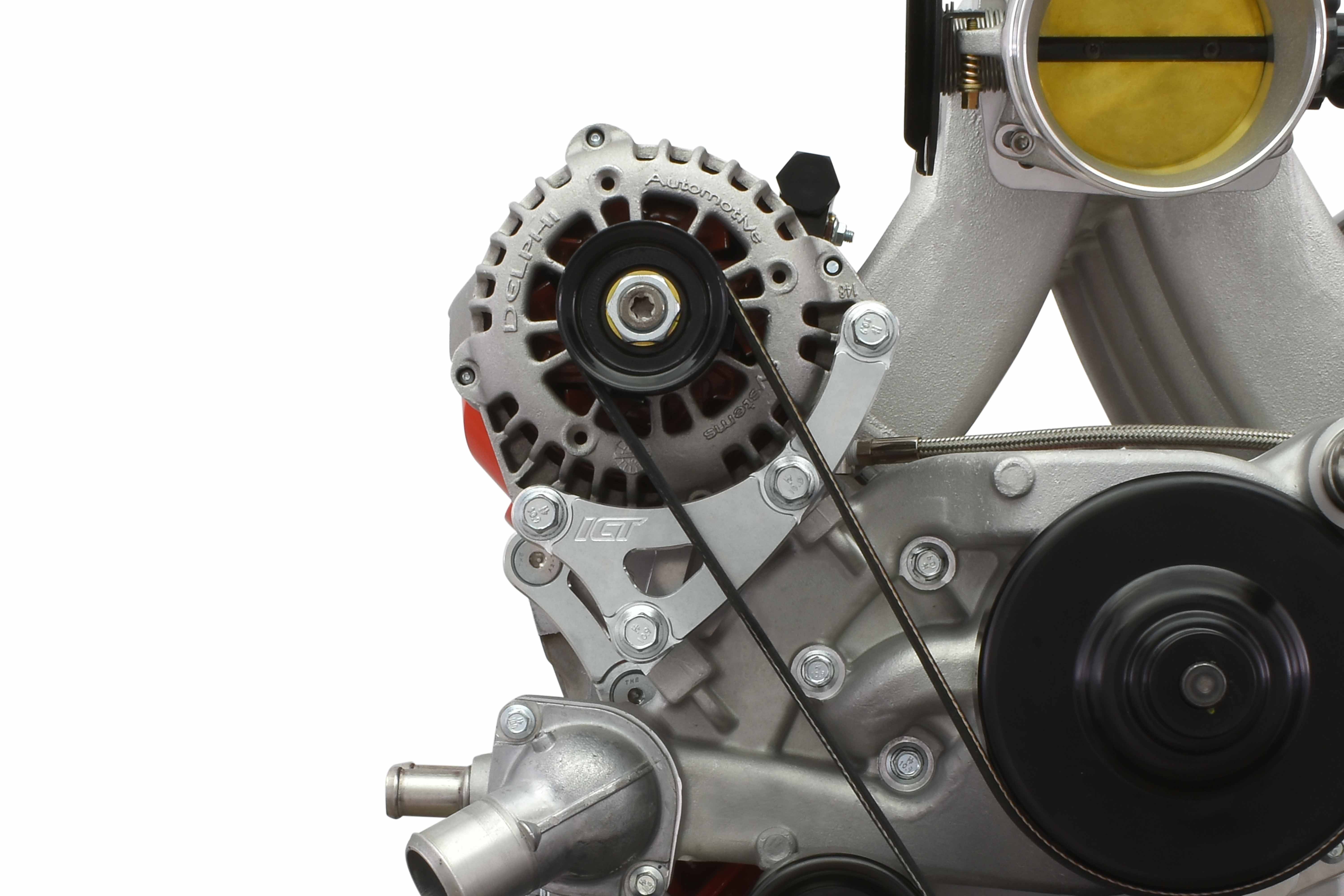

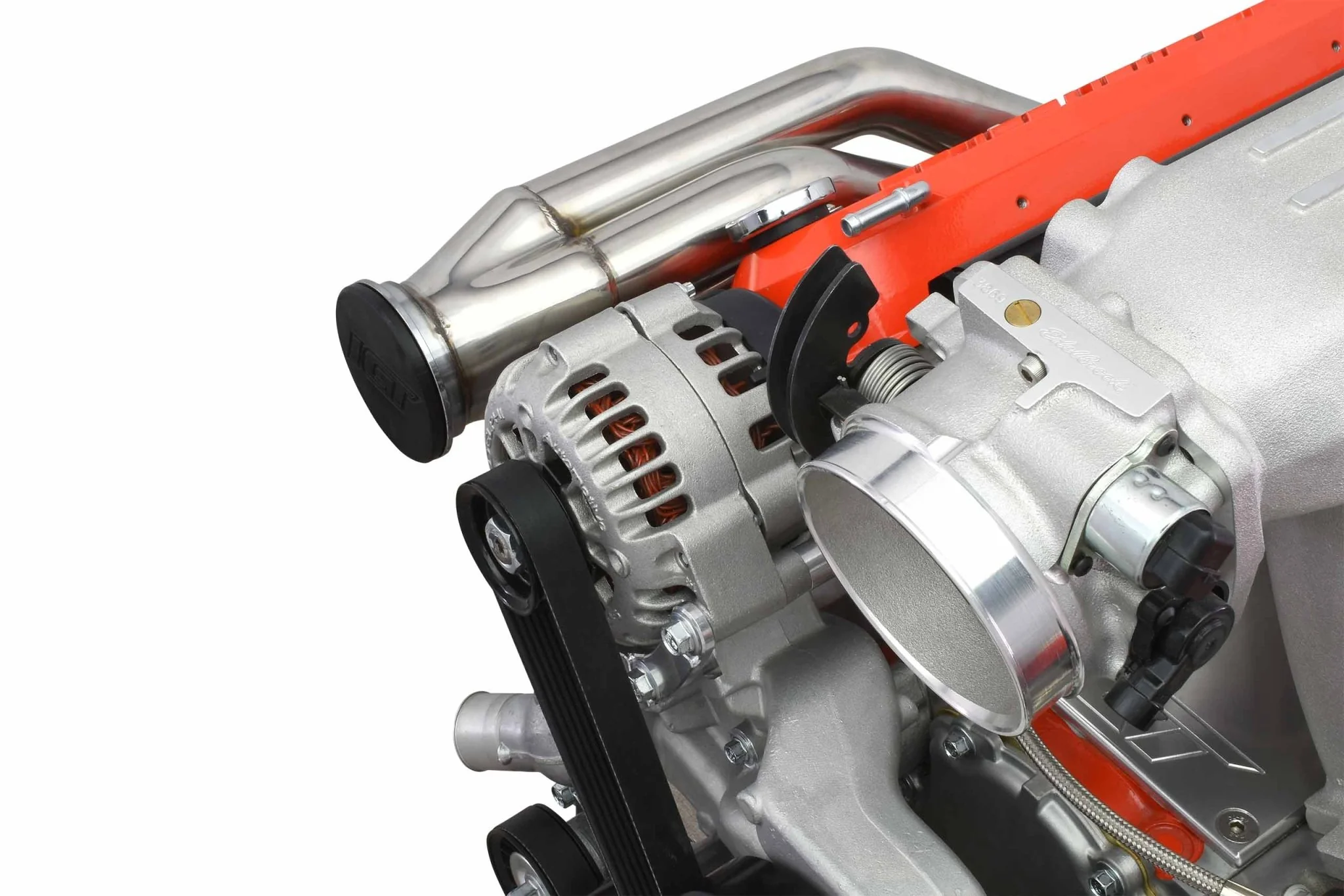

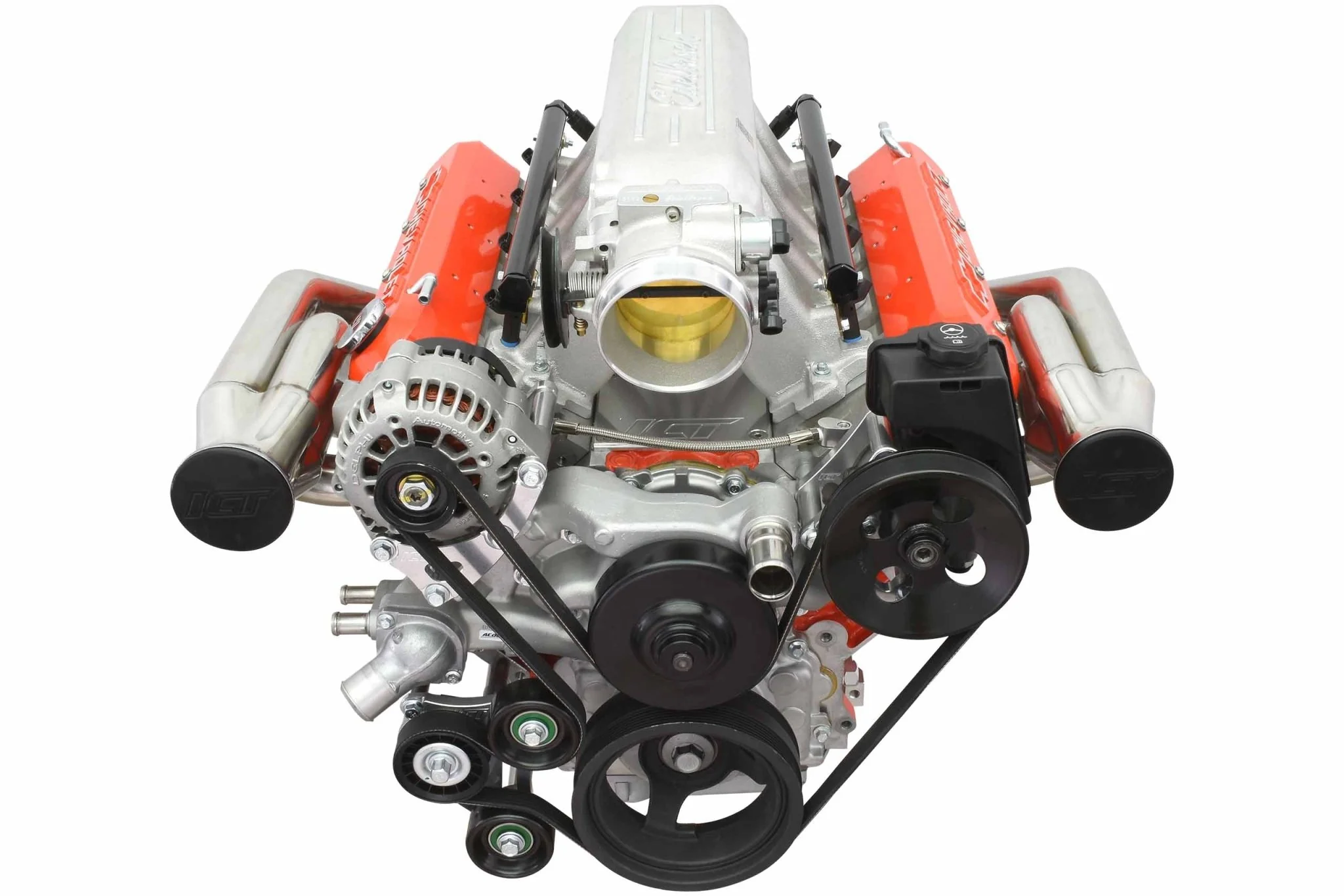

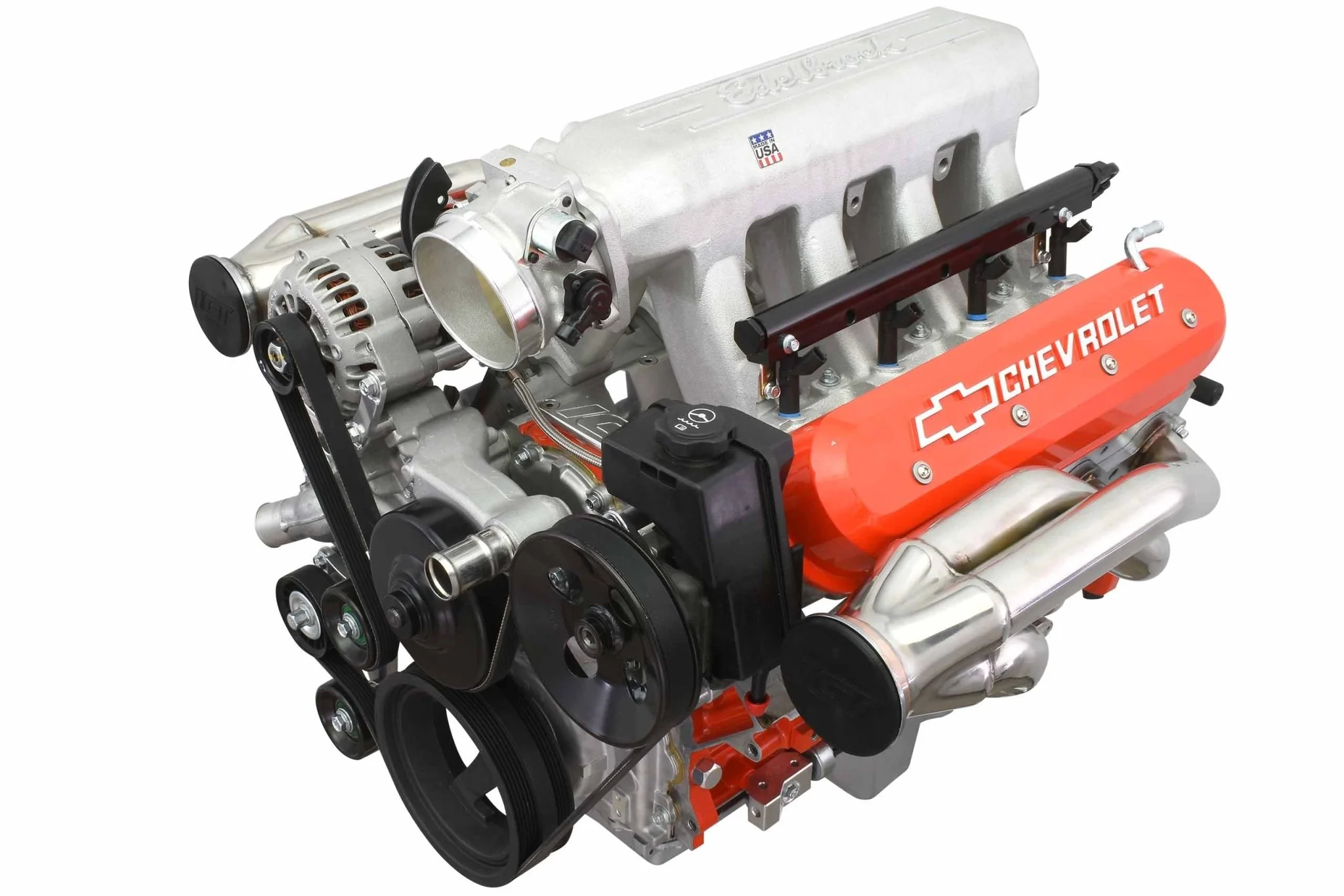

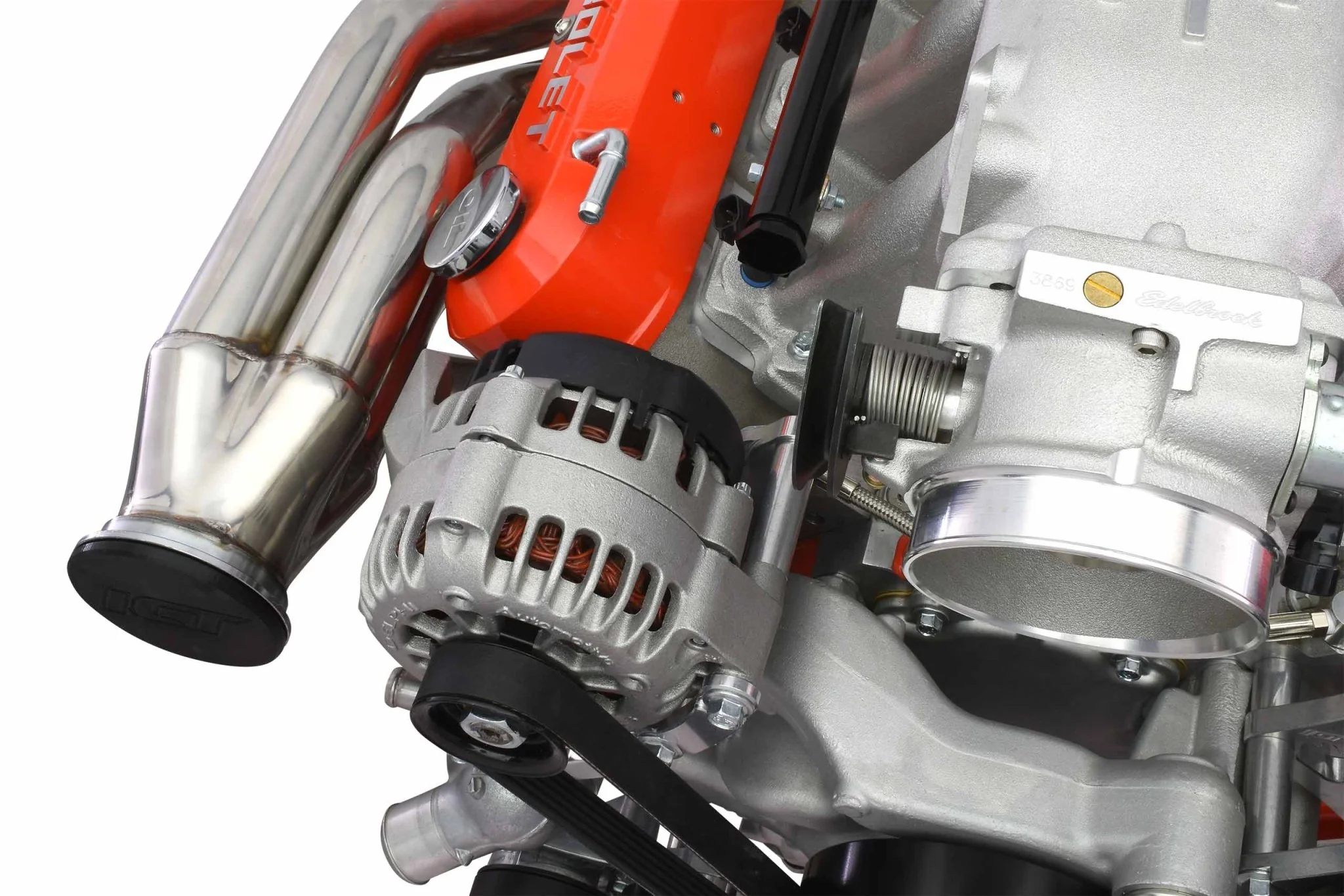

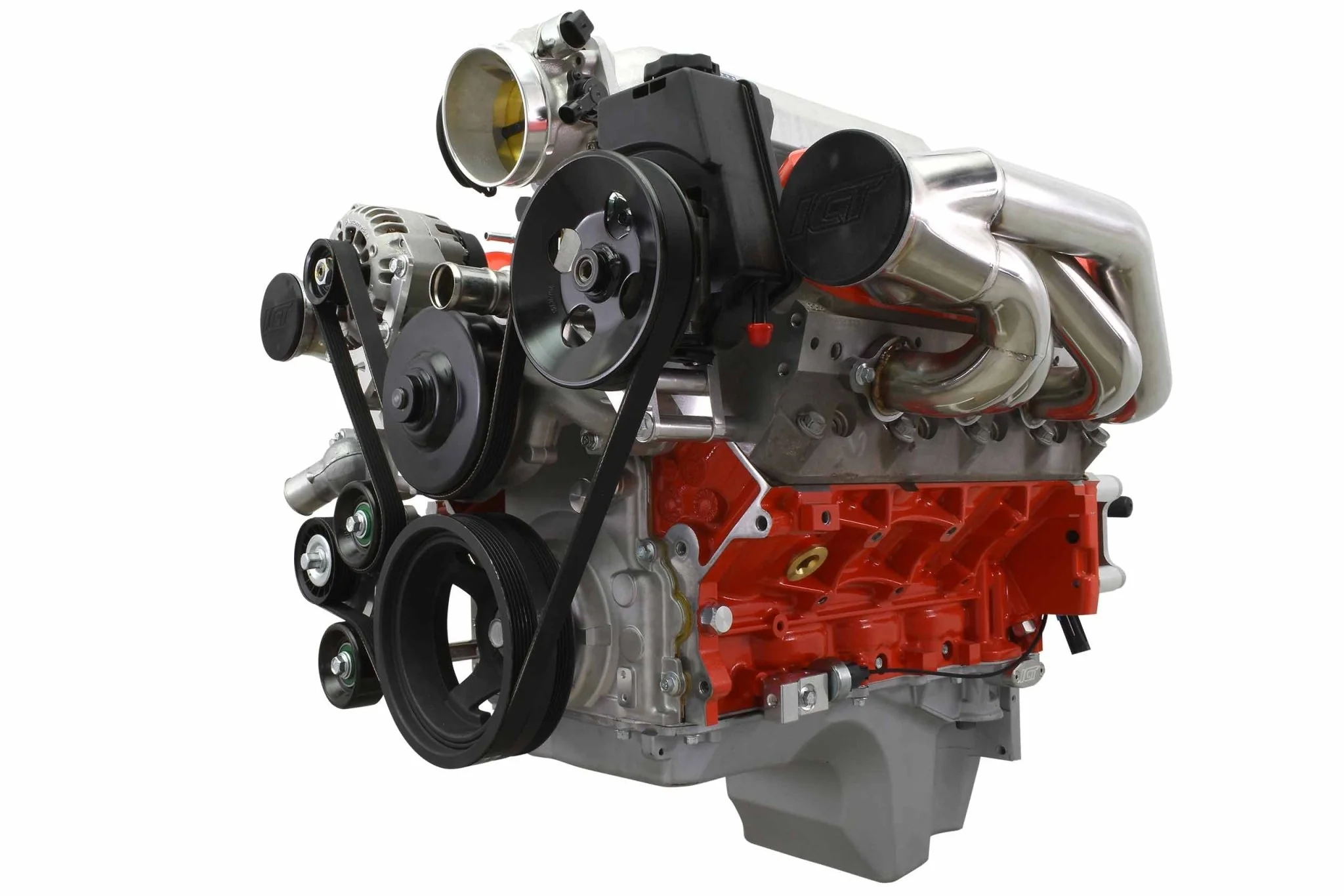

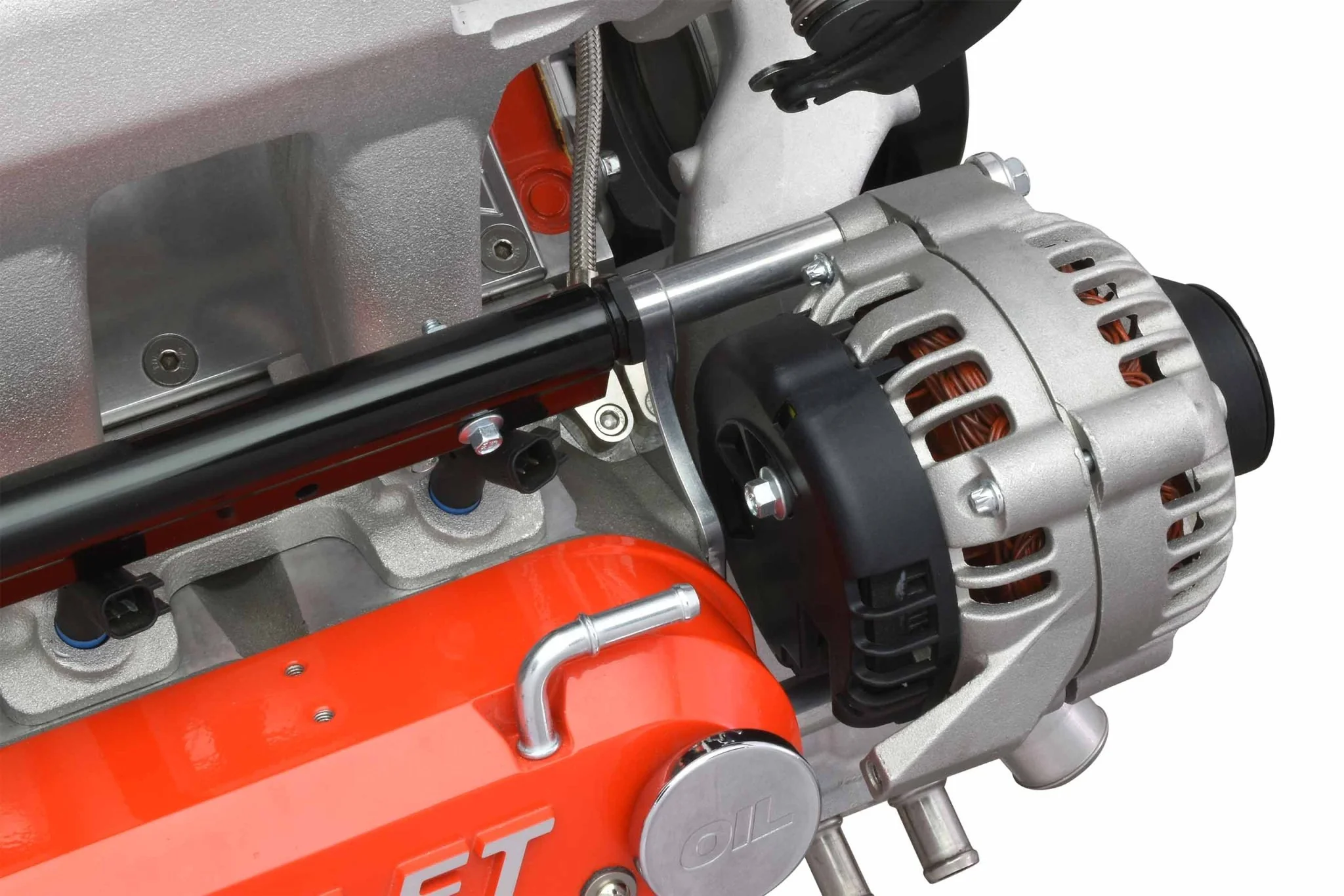

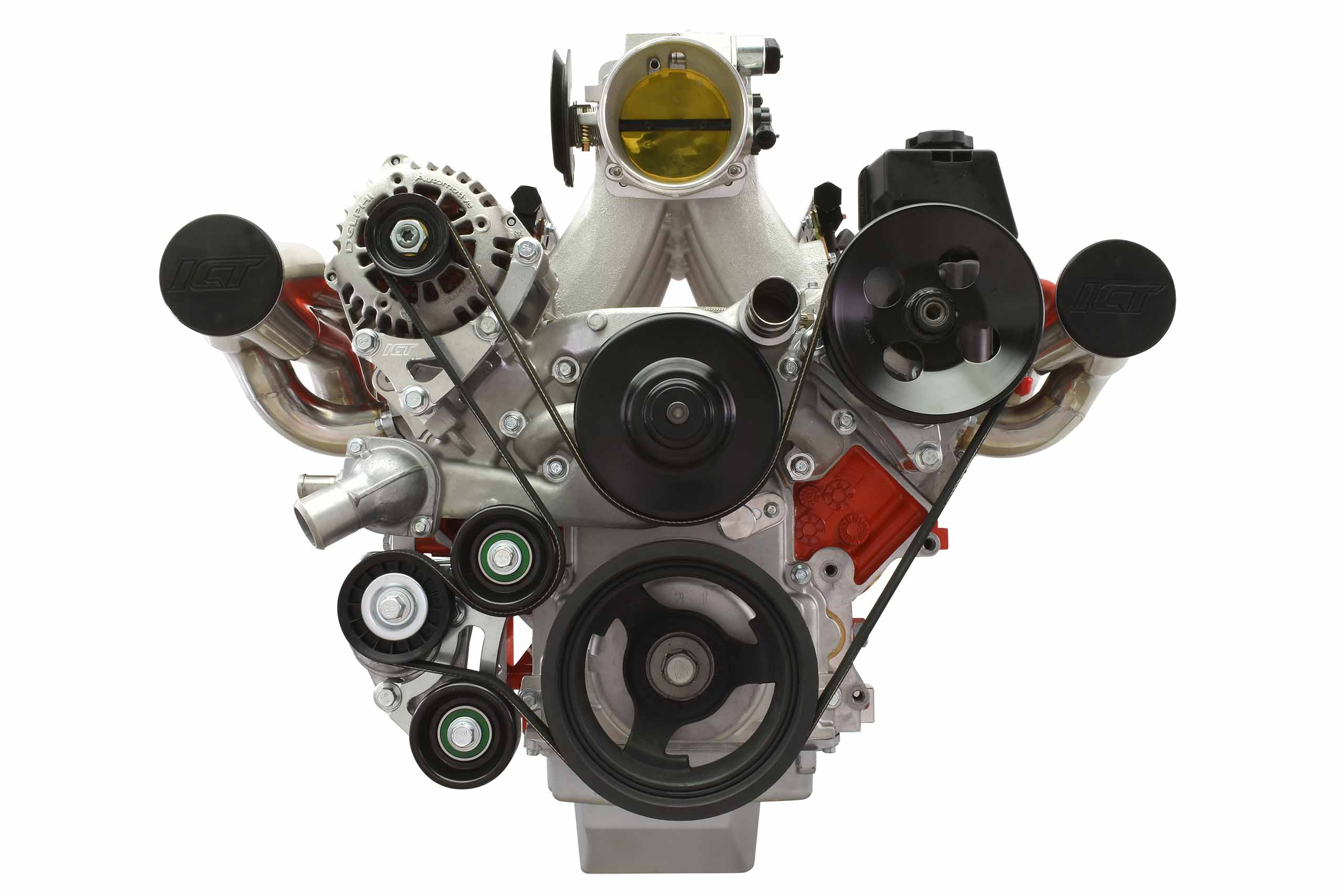

LS Truck Turbo Alternator Bracket
Water Pump - Compatible with: 1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
- Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)
- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
- Compatible with all GM LS series engine cylinder heads
- If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin alternator) or WEALT40 (2-pin)
Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo. For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-LS01WP) *NOT compatible with ICT #551675 coolant crossover kit with steam vent port
Belt lengths when used with:
- 551971-LS3-3 865K6 with 105amp alt
