LS Truck Power Steering Bracket Kit Swap 5.3L 6.0L 4.8L (LS1 Camaro PS Pump)
Power Steering Pump Bracket Kit
Compatible with: all GM LS series engine blocks
- Uses Truck (any year, or LS3 Camaro) crank pulley
- Must use 1998-2002 Camaro LS1 style power steering pump (ICT# PUM200) and pulley (ICT# PUL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

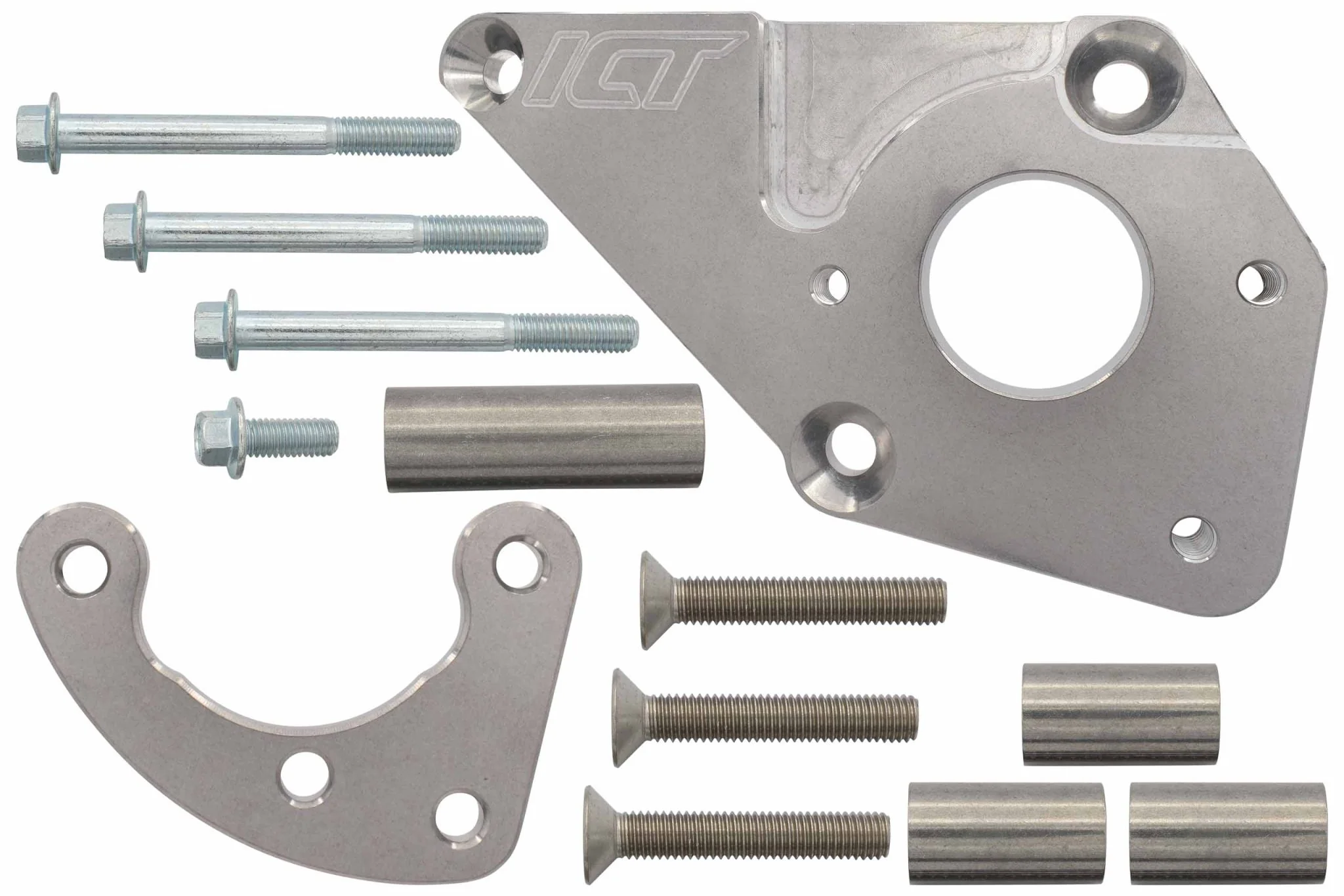

- Package Includes: mounting brackets, spacers, and all mounting bolts

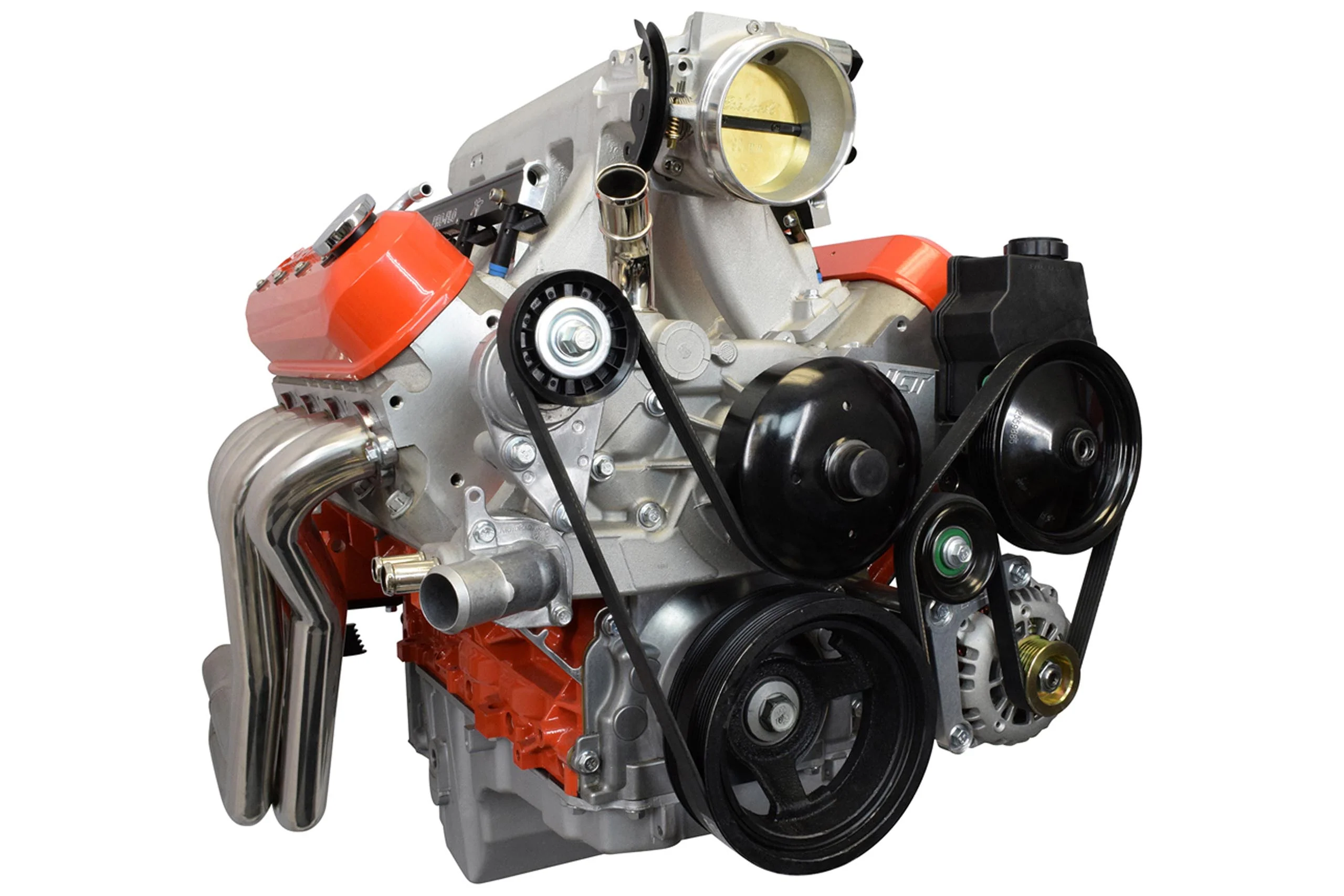

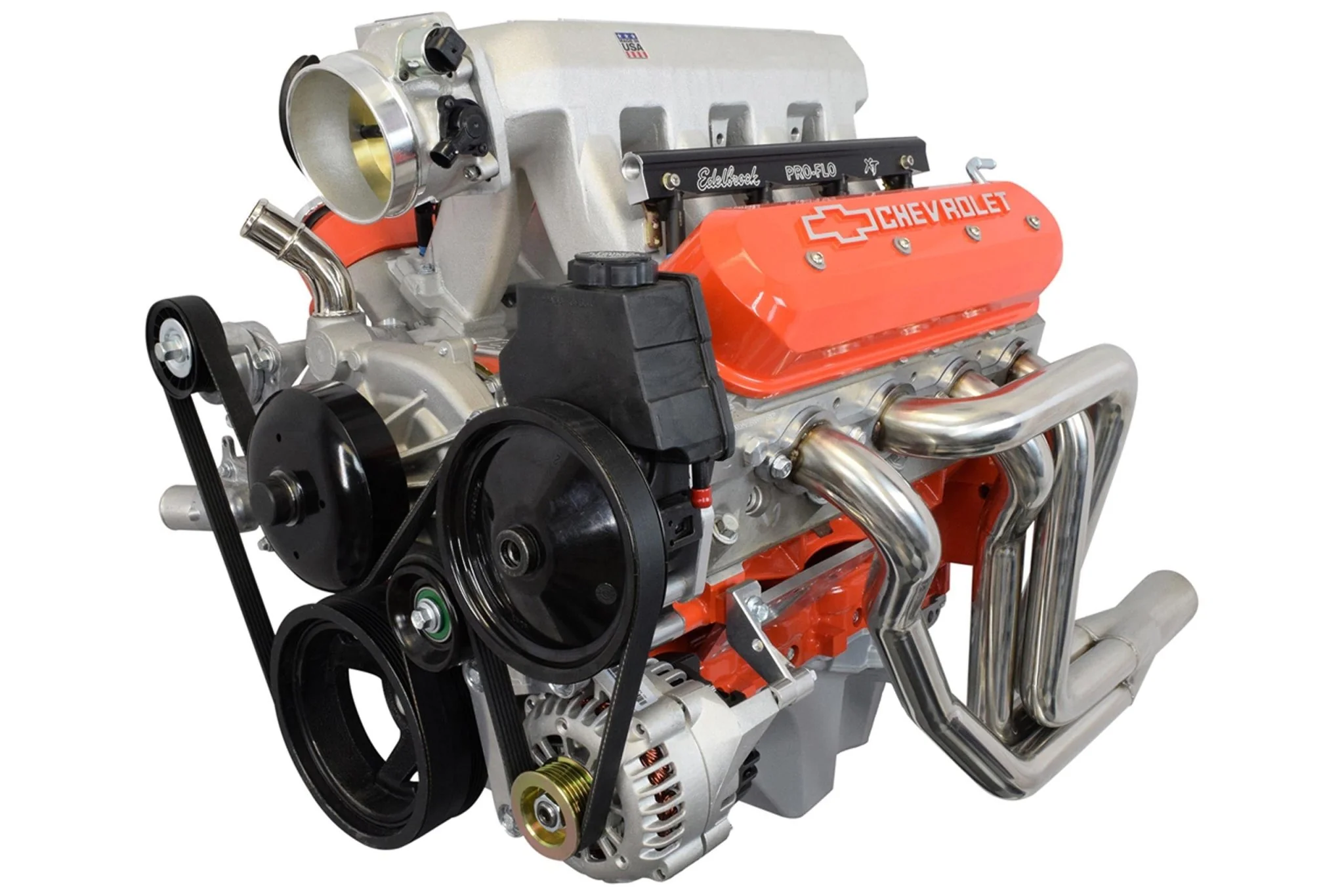

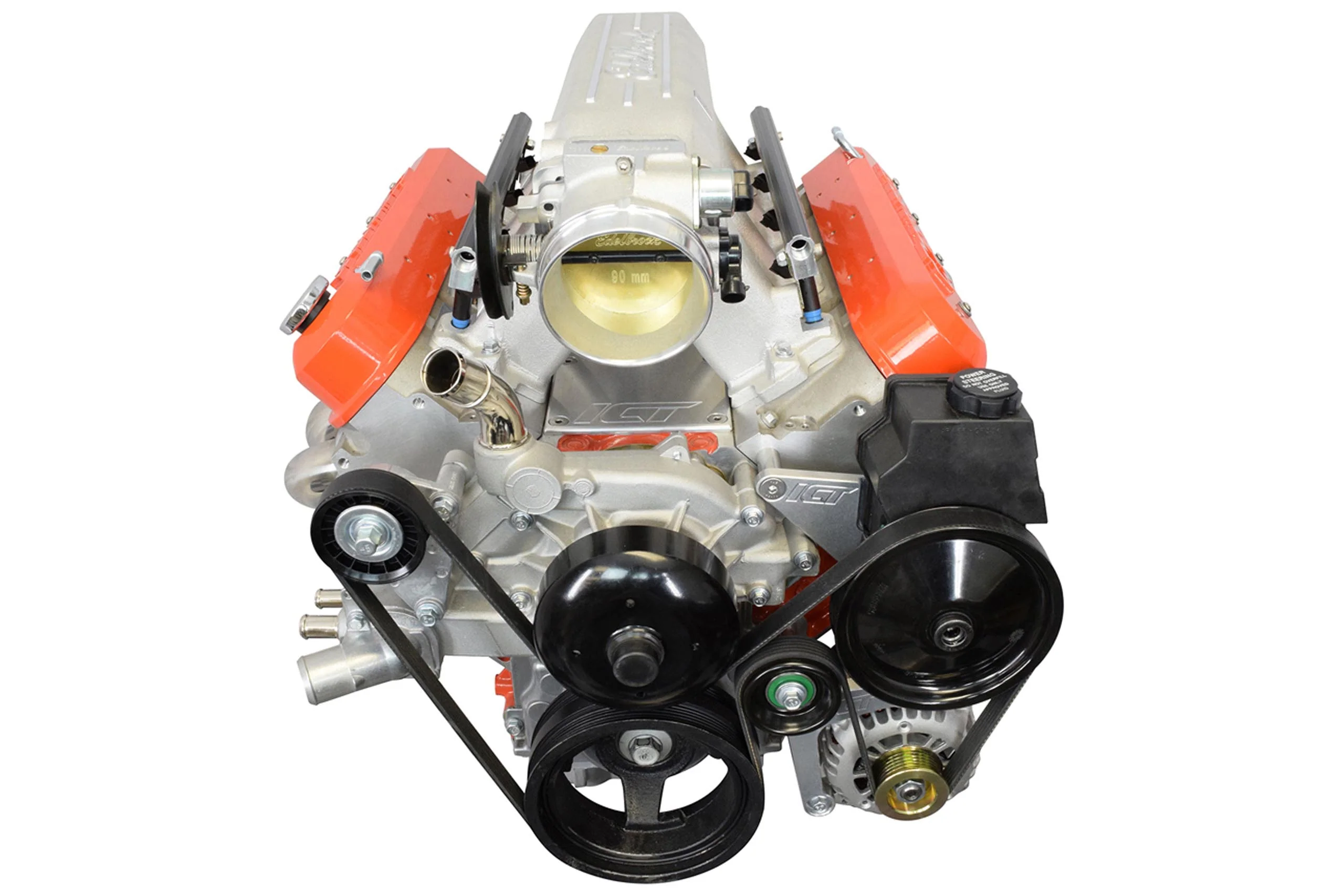

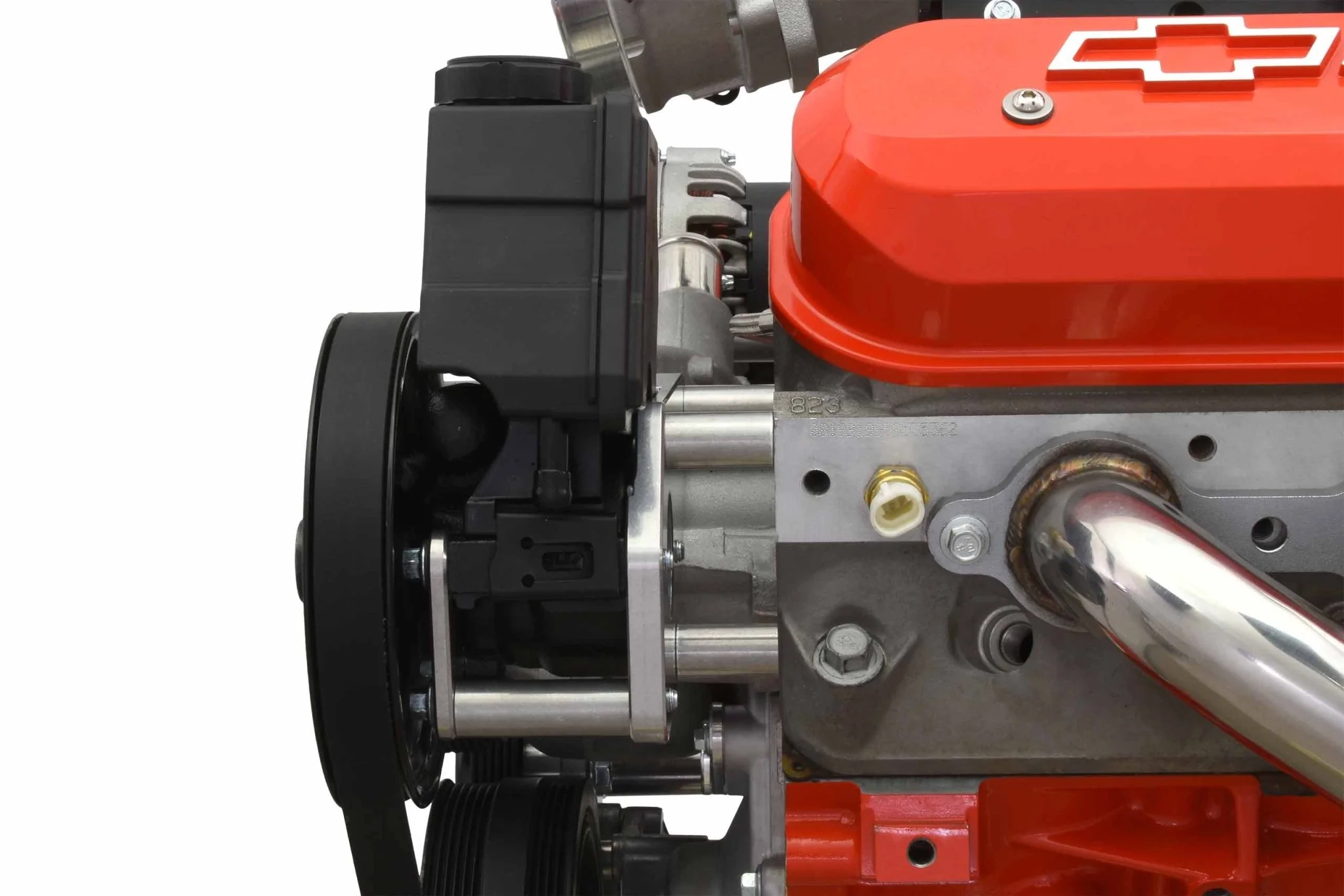

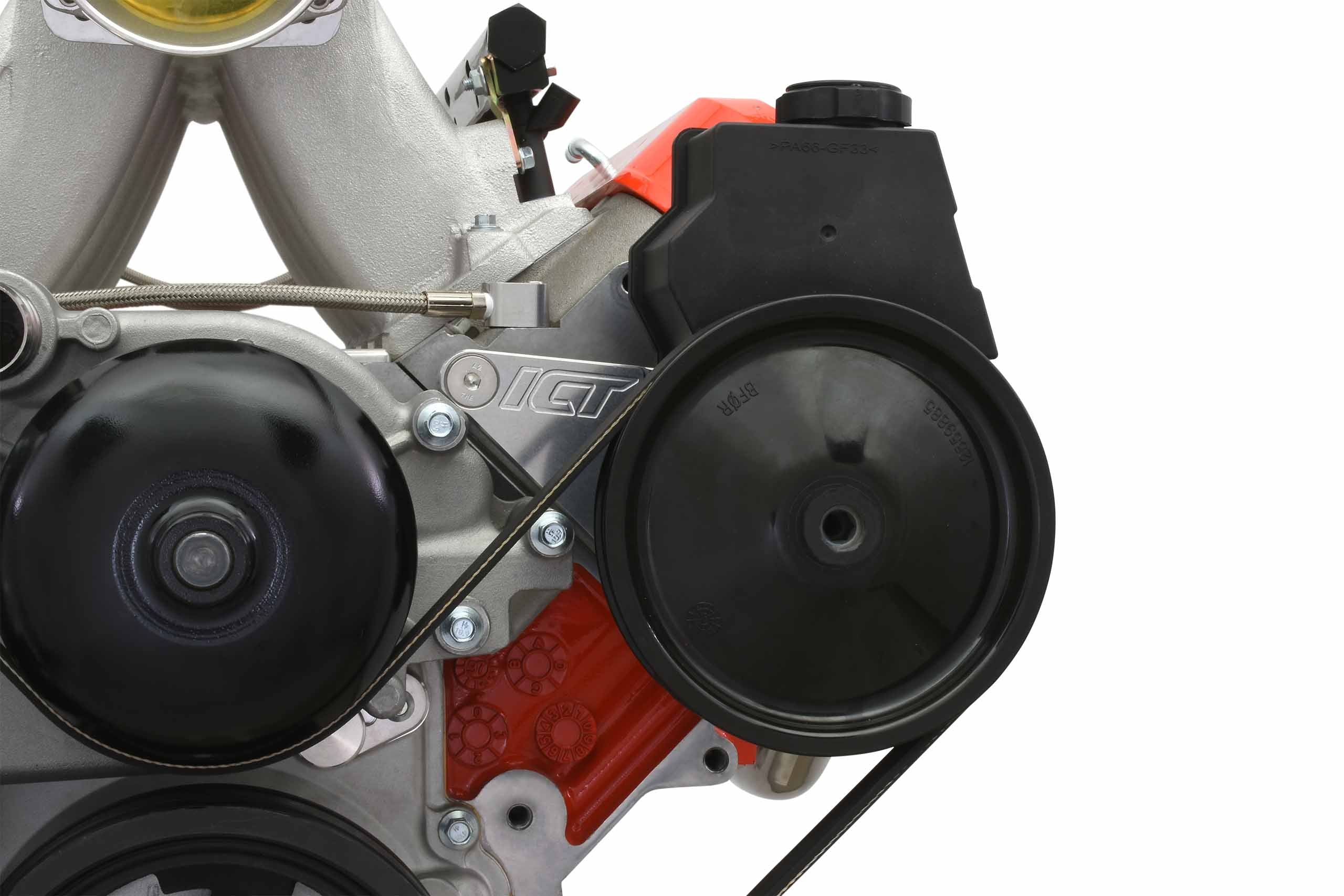

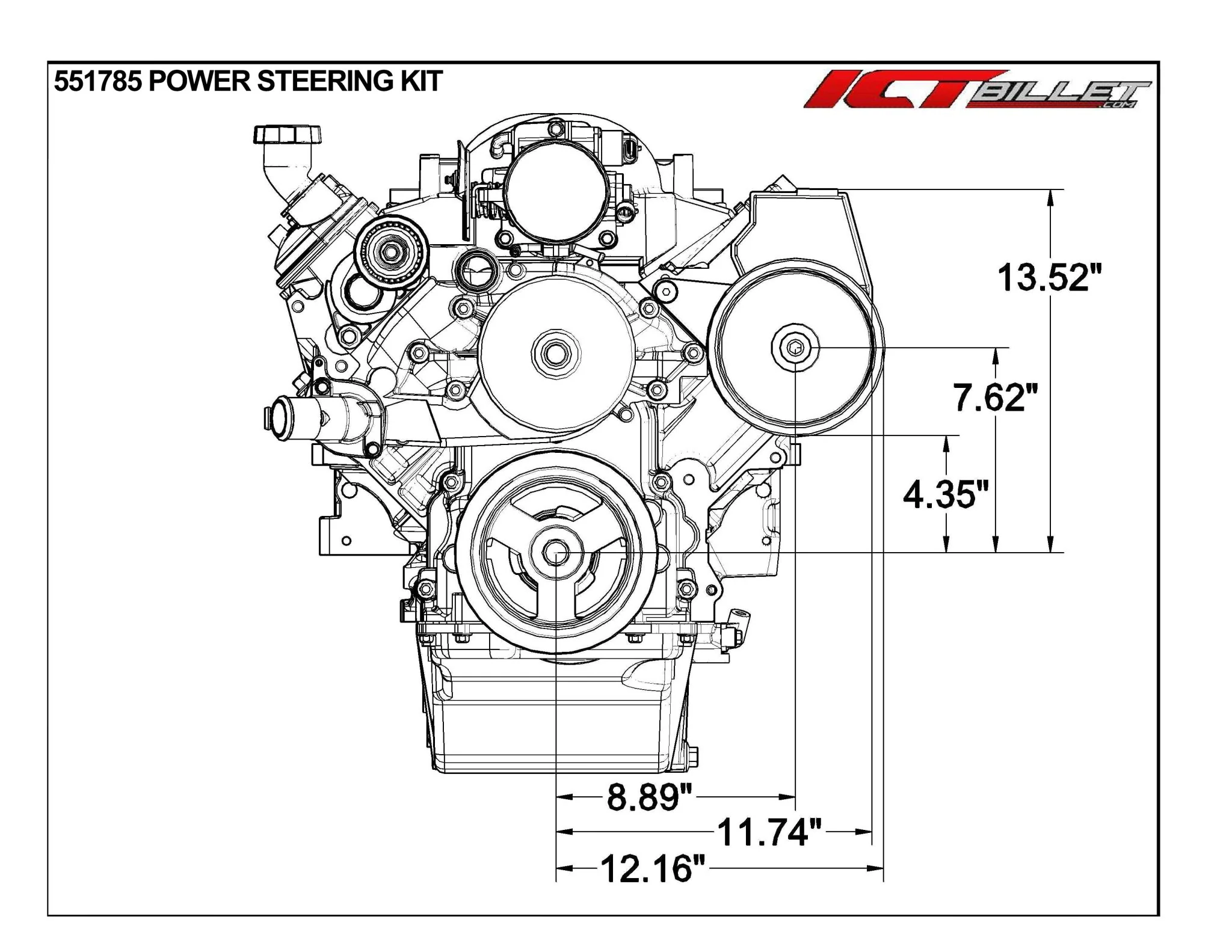

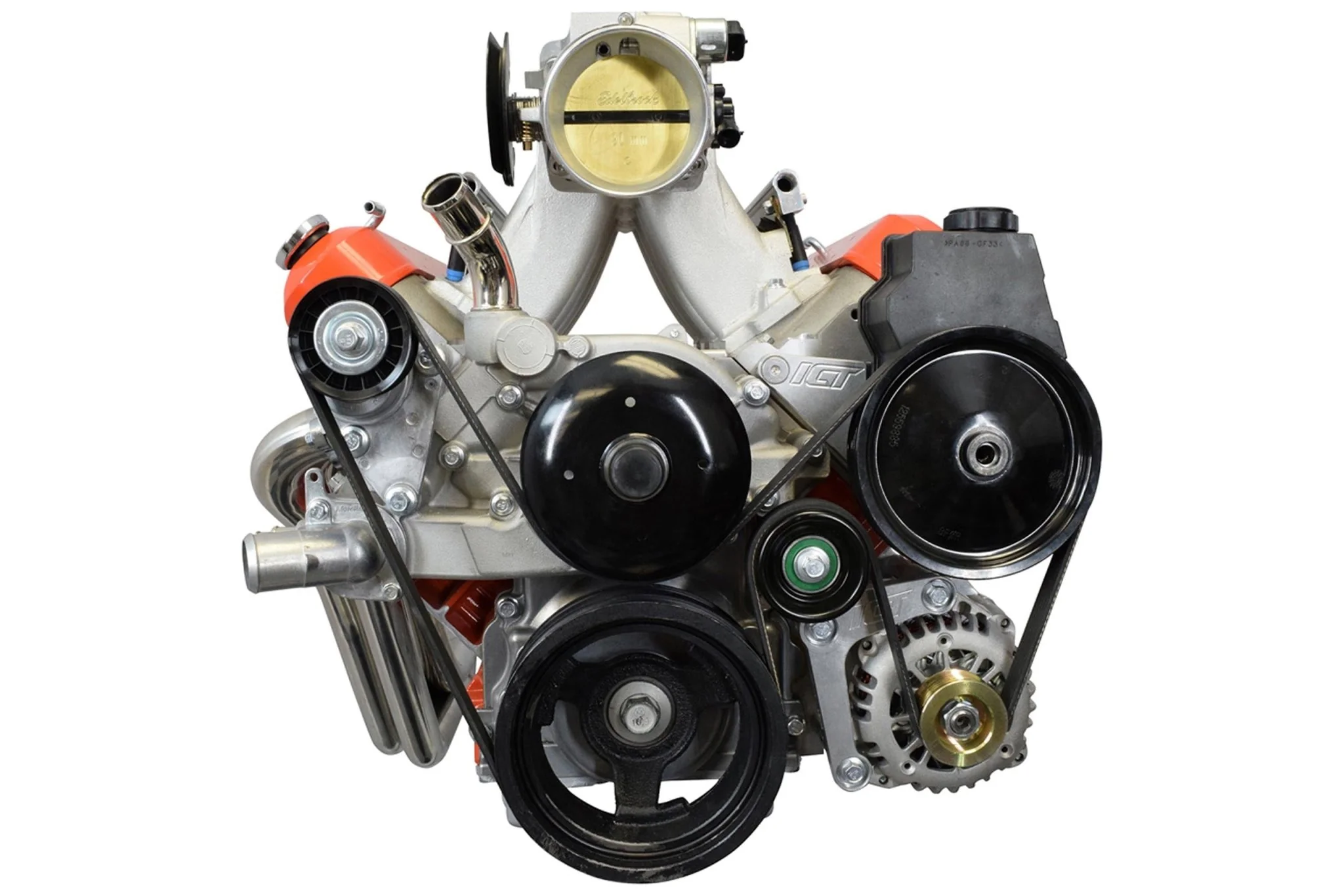

This mounts the power steering pump in the 98-02 Camaro Z28 Factory Location (mounted directly in front of the driver side head) but with the belt position moved forward approximately 3/4 inch Compatible with 670K6 (67.0 inches) when used with 105 amp alternator and ICT Billet kits numbered 551398, 551399, 551399LS3. 790K6 (79.0 inches) when used with 105 amp alternator and ICT Billet 551750-2. Larger amp (145/160 amp) alternators will require approx. 3/4" longer belt.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Truck Power Steering Bracket Kit Swap 5.3L 6.0L 4.8L (LS1 Camaro PS Pump)
LS Truck Power Steering Bracket Kit Swap 5.3L 6.0L 4.8L (LS1 Camaro PS Pump)
Power Steering Pump Bracket Kit
Compatible with: all GM LS series engine blocks
- Uses Truck (any year, or LS3 Camaro) crank pulley
- Must use 1998-2002 Camaro LS1 style power steering pump (ICT# PUM200) and pulley (ICT# PUL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Package Includes: mounting brackets, spacers, and all mounting bolts
This mounts the power steering pump in the 98-02 Camaro Z28 Factory Location (mounted directly in front of the driver side head) but with the belt position moved forward approximately 3/4 inch Compatible with 670K6 (67.0 inches) when used with 105 amp alternator and ICT Billet kits numbered 551398, 551399, 551399LS3. 790K6 (79.0 inches) when used with 105 amp alternator and ICT Billet 551750-2. Larger amp (145/160 amp) alternators will require approx. 3/4" longer belt.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Power Steering Pump Bracket Kit
Compatible with: all GM LS series engine blocks
- Uses Truck (any year, or LS3 Camaro) crank pulley
- Must use 1998-2002 Camaro LS1 style power steering pump (ICT# PUM200) and pulley (ICT# PUL200)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Package Includes: mounting brackets, spacers, and all mounting bolts
This mounts the power steering pump in the 98-02 Camaro Z28 Factory Location (mounted directly in front of the driver side head) but with the belt position moved forward approximately 3/4 inch Compatible with 670K6 (67.0 inches) when used with 105 amp alternator and ICT Billet kits numbered 551398, 551399, 551399LS3. 790K6 (79.0 inches) when used with 105 amp alternator and ICT Billet 551750-2. Larger amp (145/160 amp) alternators will require approx. 3/4" longer belt.
