LS Corvette Spacing Low Mount Alternator Bracket for Electric or Remote Water Pump
LS Low Mount Alternator Bracket (Electric or Remote Water Pump or Motor Plate) - for Corvette Crank Pulley Spacing
Compatible with: Corvette Crank Spacing LS Series Engines

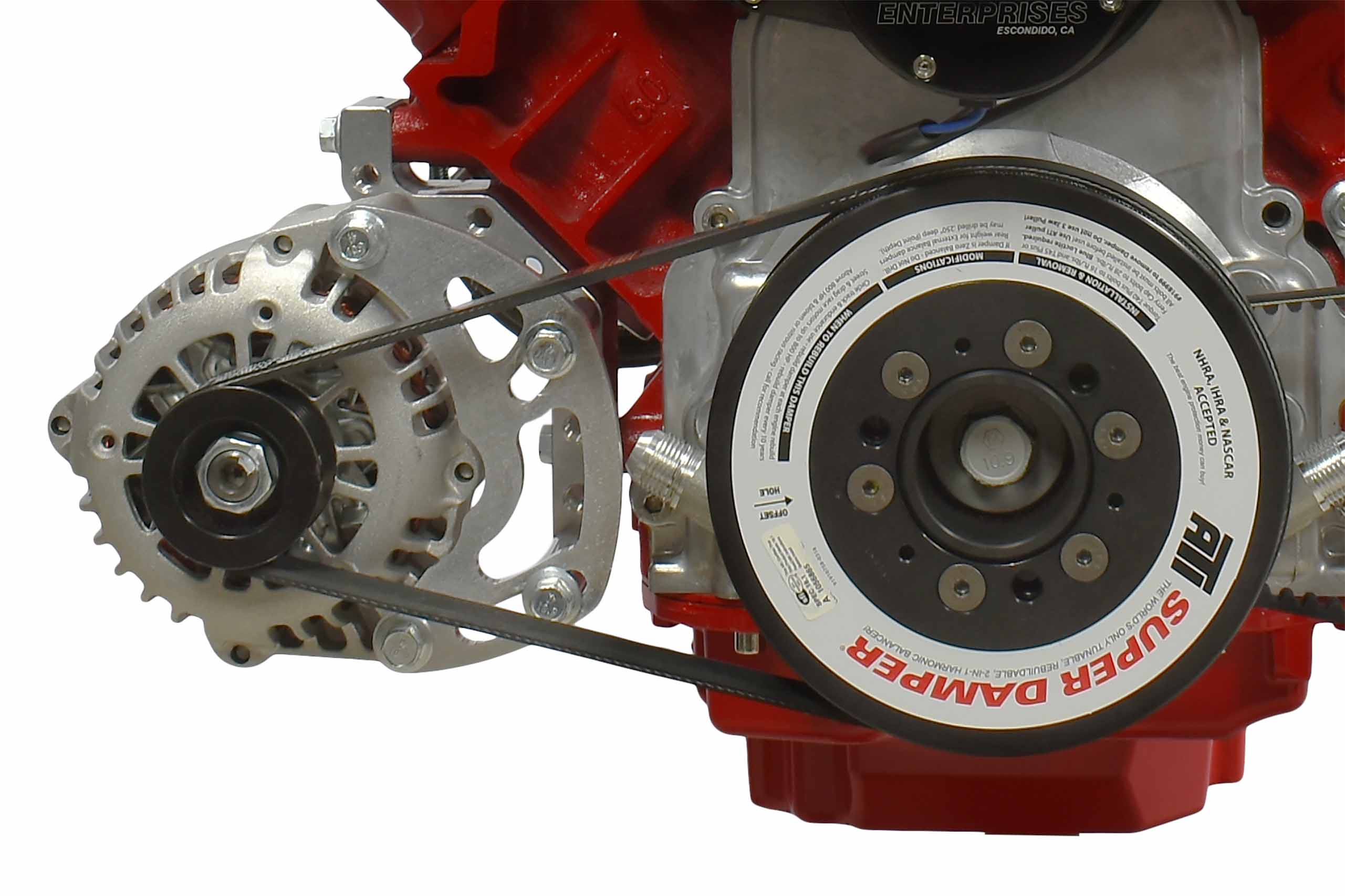

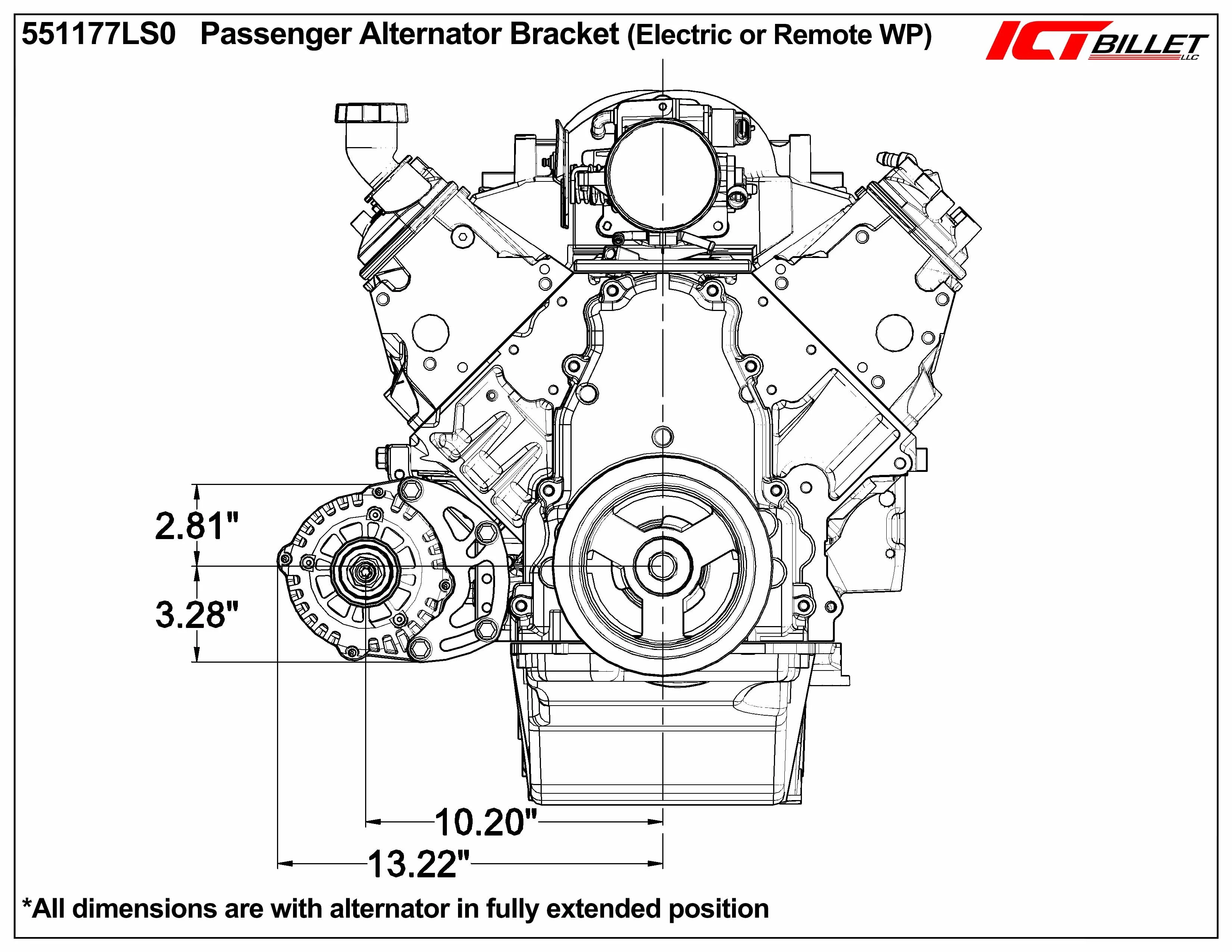

Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only
- Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
- Compatible with: LS Corvette (any year) crank pulley (ICT# BAL100)
- Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

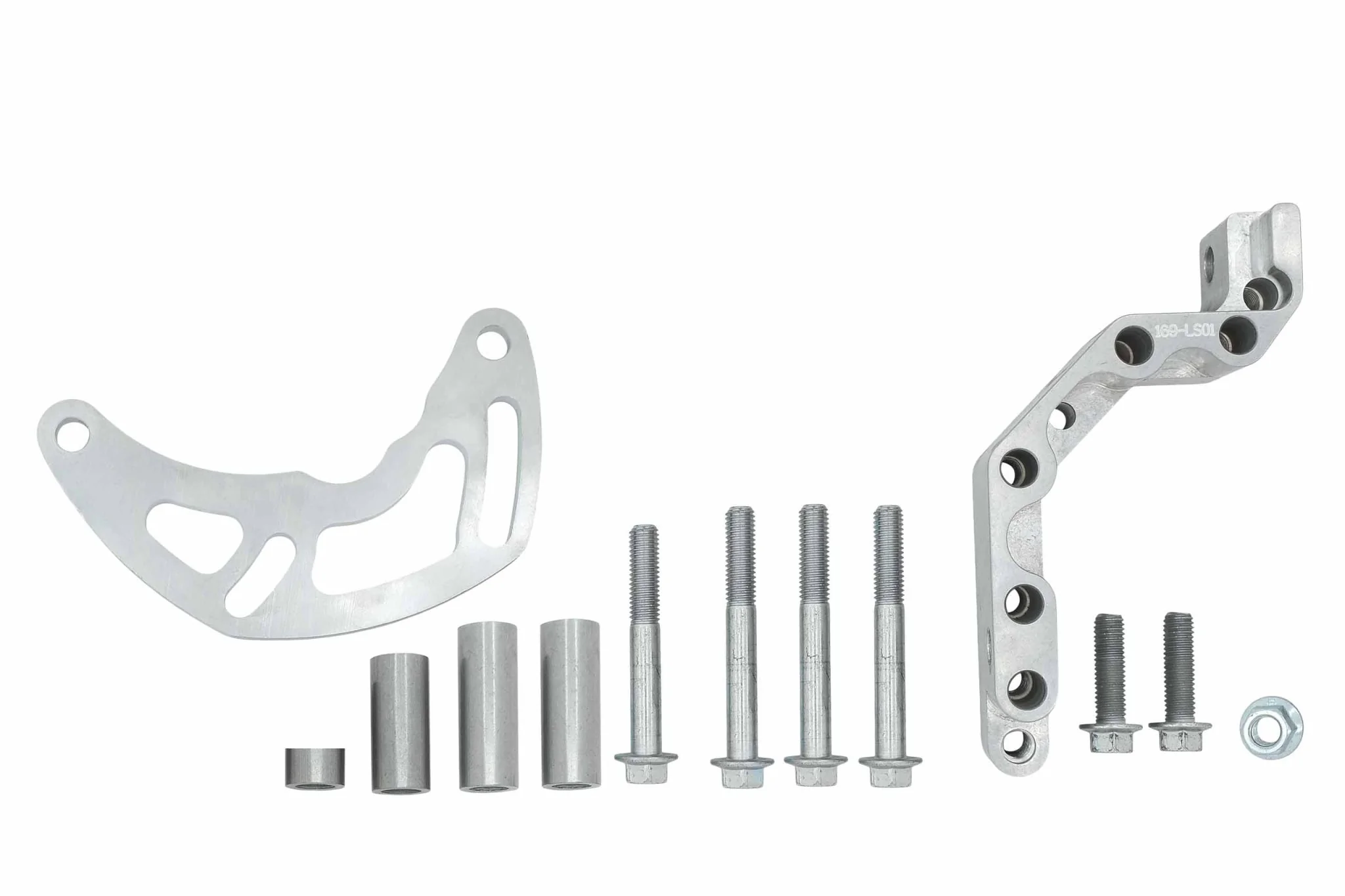

- Includes: alternator bracket and mounting hardware
- Made from aerospace-grade billet aluminum
- Made in the USA
Belt Lengths:
(105 Amp-130 Amp Alternator) 36.0” PN 360K6
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Corvette Spacing Low Mount Alternator Bracket for Electric or Remote Water Pump
LS Corvette Spacing Low Mount Alternator Bracket for Electric or Remote Water Pump
LS Low Mount Alternator Bracket (Electric or Remote Water Pump or Motor Plate) - for Corvette Crank Pulley Spacing
Compatible with: Corvette Crank Spacing LS Series Engines
Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only
- Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
- Compatible with: LS Corvette (any year) crank pulley (ICT# BAL100)
- Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Includes: alternator bracket and mounting hardware
- Made from aerospace-grade billet aluminum
- Made in the USA
Belt Lengths:
(105 Amp-130 Amp Alternator) 36.0” PN 360K6
$79.20
Original: $263.99
-70%LS Corvette Spacing Low Mount Alternator Bracket for Electric or Remote Water Pump—
$263.99
$79.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS Low Mount Alternator Bracket (Electric or Remote Water Pump or Motor Plate) - for Corvette Crank Pulley Spacing
Compatible with: Corvette Crank Spacing LS Series Engines
Places the alternator to the passenger side of the crank pulley, designed to clear electric or remote water pumps only
- Compatible with LS front engine plates, but not required (145 amp or 160 amp alternators may not work in some applications when pairing with a front engine plate)
- Compatible with: LS Corvette (any year) crank pulley (ICT# BAL100)
- Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Includes: alternator bracket and mounting hardware
- Made from aerospace-grade billet aluminum
- Made in the USA
Belt Lengths:
(105 Amp-130 Amp Alternator) 36.0” PN 360K6
