LS Alternator Relocation and LS1 Camaro Power Steering Pump Bracket Kit - for LS1 Camaro Water Pump

Used for relocating the alternator to the passenger cylinder head with an integrated turnbuckle tensioner and mounts a LS1 Camaro power steering pump in front of the driver side cylinder head

• Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Compatible with:
  • LS1 ('98-'02) Camaro power steering pump & pulley (ICT# PUM200 and PUL200)
  • LS truck (any year) alternator: 105 amp (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators, 145 amp, or 160 amp truck alternators)
  • LS1 '98-'02 Camaro water pump (WAT200) with spacers (spacers included)
  • Bracket kit not compatible with any other water pump. If wanting to us LS Gen 3 Truck water pump (WAT300), and LS3/L99 Camaro water pump (WAT302), please see Bracket Kit ICT# 551498-LS01
• Compatible with all LS series engines
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Can be used with low mount 4-rib A/C compressor on passenger side, see ICT# 551137-LS74-3
• Compatible with LS3 Throttle Body Rotation Adapter (551781) when using with LS3 Camaro Intake Manifold and Throttle Body
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

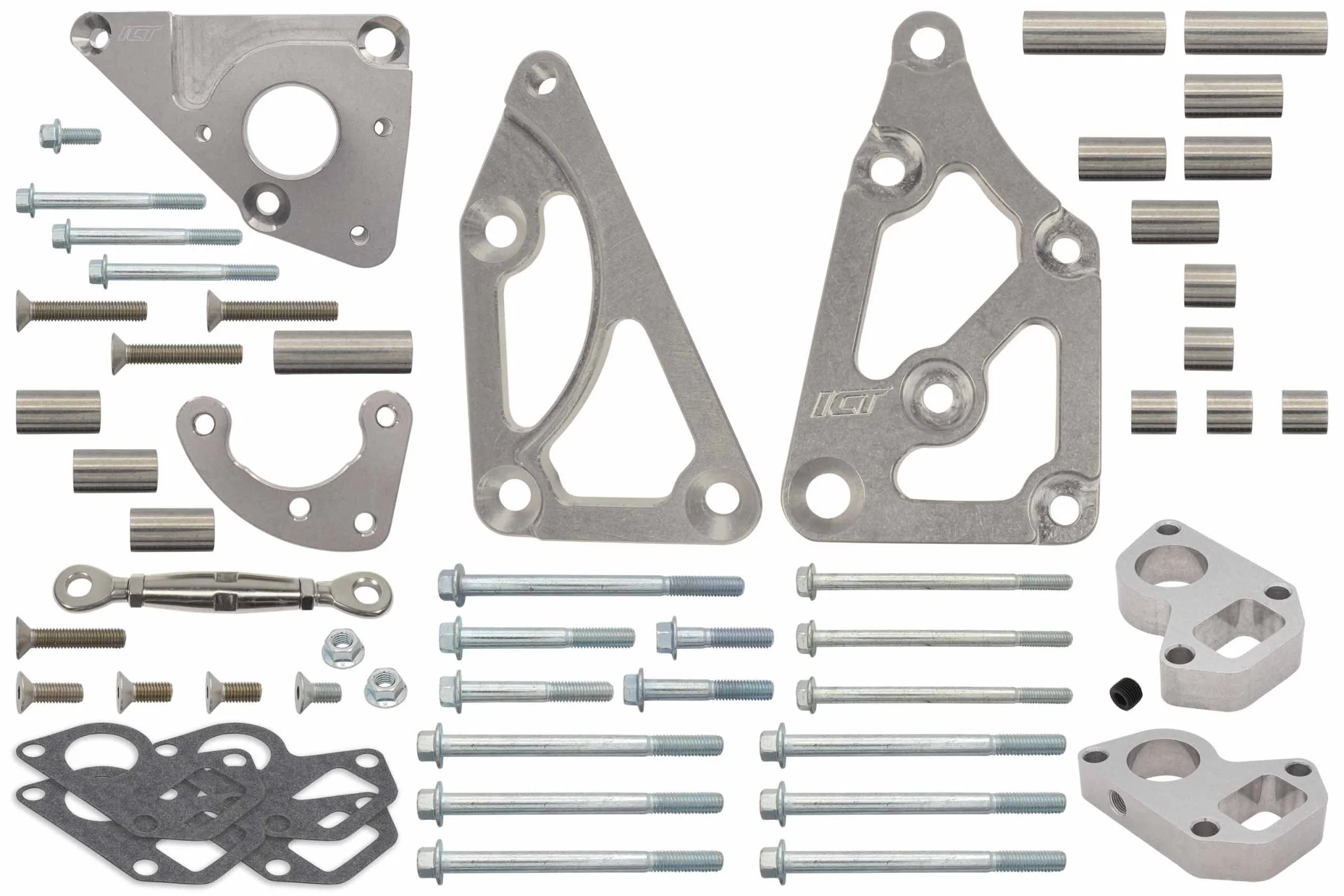

• Kit made up of part #'s 551799-3 and 551581-3 bracket kits
• Belt length with 105amp alternator: 66.0" (660K6)
