LS / LS1 1/8 Dual Outlet Oil Feed Adapter Plate 90 degree
Oil Cooler Port Adapter Plate for LS series GM V8 engines w/ dual(2) TOP EXIT - 1/8-27" NPT ports
Adds two 1/8" NPT supply ports for turbocharger oil feed lines
- Compatible with all LS oil pans, except GTO front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9, etc), and LS4 oil pans
- Torque spec - 106in lbs (DO NOT OVERTIGHTEN)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- 1" thick billet aluminum

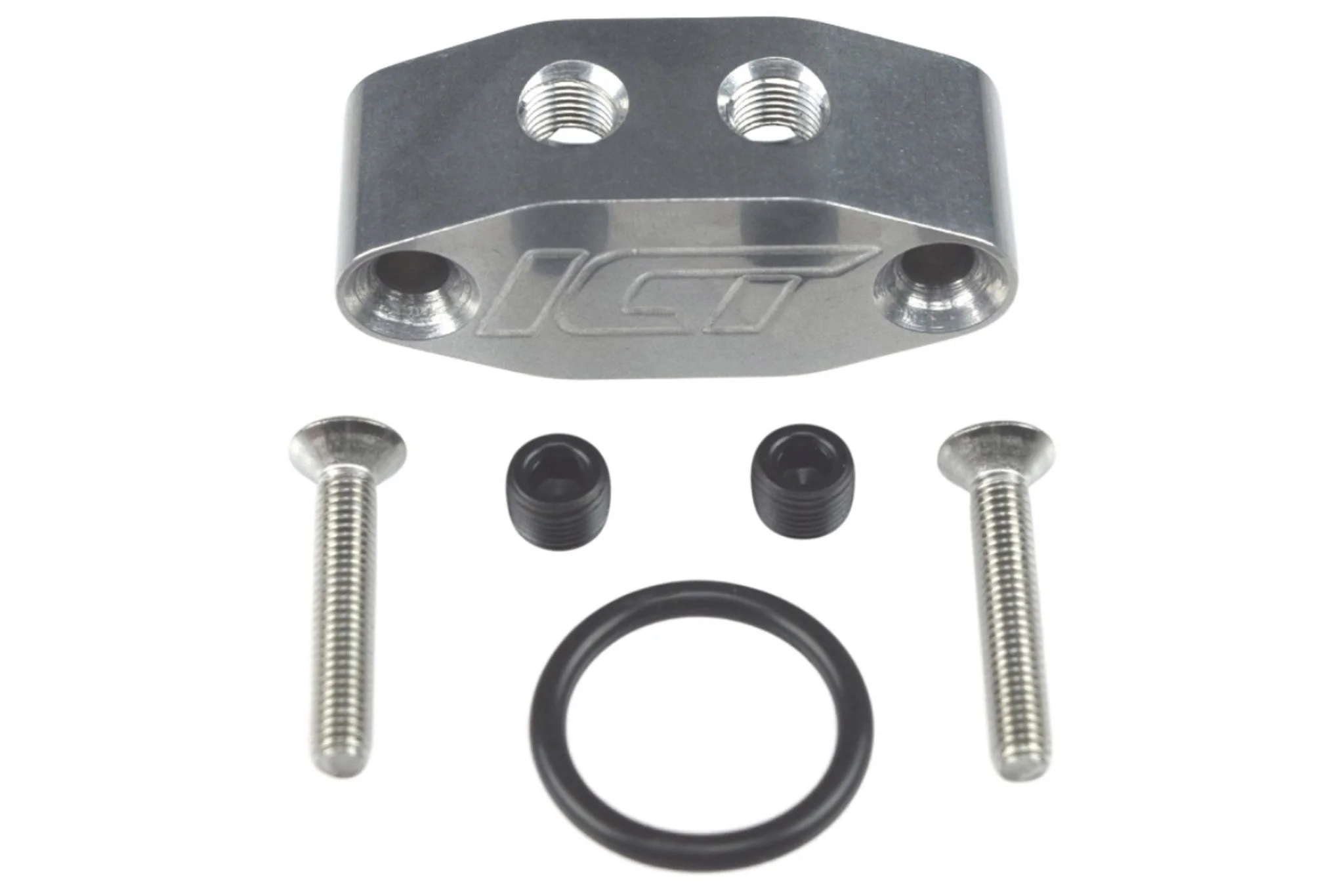

- Includes oil port, oring seal, two 1/8" pipe plugs, and mounting bolts

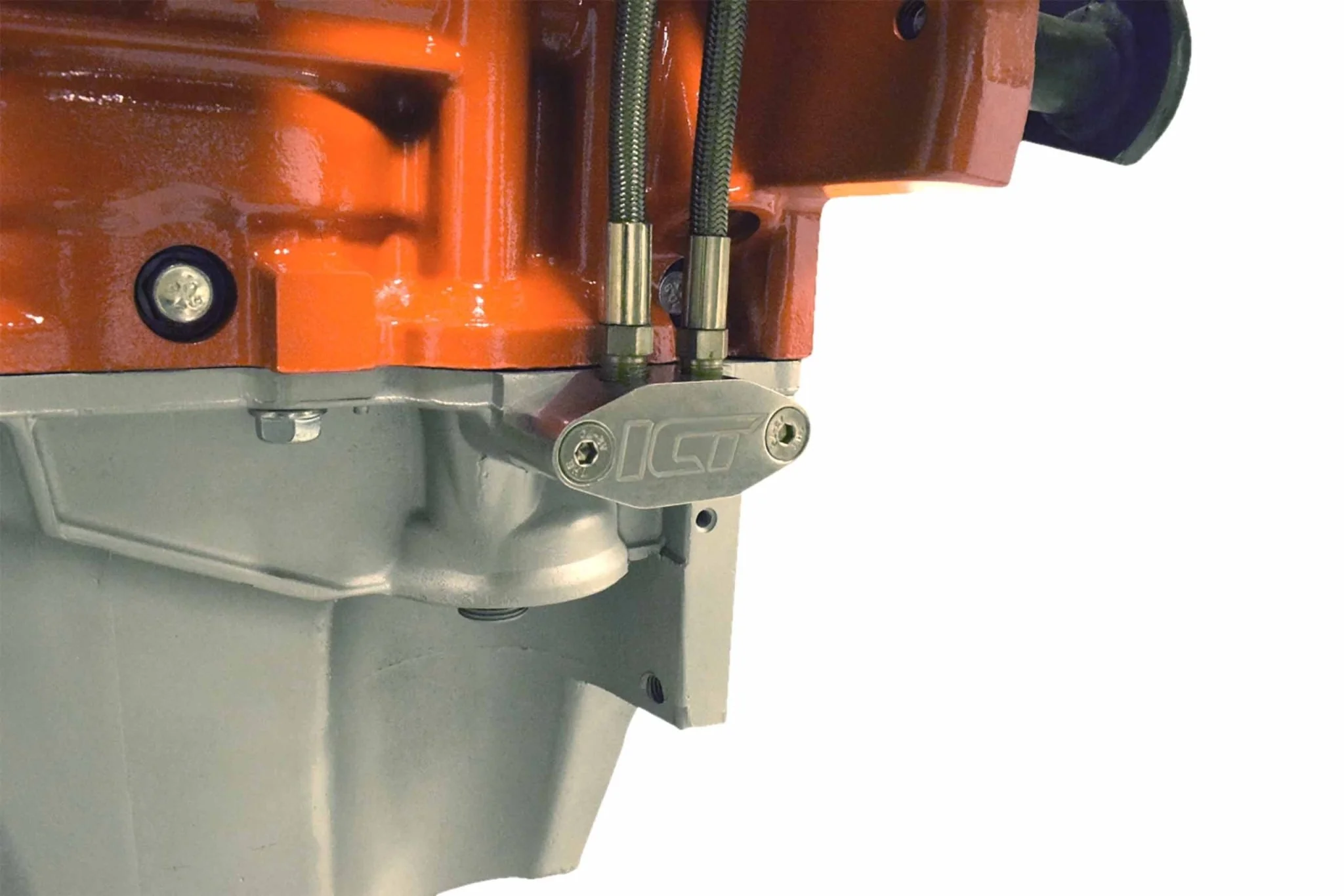

- Ports can be faced straight up or straight down
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS / LS1 1/8 Dual Outlet Oil Feed Adapter Plate 90 degree
LS / LS1 1/8 Dual Outlet Oil Feed Adapter Plate 90 degree
Oil Cooler Port Adapter Plate for LS series GM V8 engines w/ dual(2) TOP EXIT - 1/8-27" NPT ports
Adds two 1/8" NPT supply ports for turbocharger oil feed lines
- Compatible with all LS oil pans, except GTO front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9, etc), and LS4 oil pans
- Torque spec - 106in lbs (DO NOT OVERTIGHTEN)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- 1" thick billet aluminum
- Includes oil port, oring seal, two 1/8" pipe plugs, and mounting bolts
- Ports can be faced straight up or straight down
$10.50
Original: $34.99
-70%LS / LS1 1/8 Dual Outlet Oil Feed Adapter Plate 90 degree—
$34.99
$10.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Oil Cooler Port Adapter Plate for LS series GM V8 engines w/ dual(2) TOP EXIT - 1/8-27" NPT ports
Adds two 1/8" NPT supply ports for turbocharger oil feed lines
- Compatible with all LS oil pans, except GTO front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9, etc), and LS4 oil pans
- Torque spec - 106in lbs (DO NOT OVERTIGHTEN)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- 1" thick billet aluminum
- Includes oil port, oring seal, two 1/8" pipe plugs, and mounting bolts
- Ports can be faced straight up or straight down
