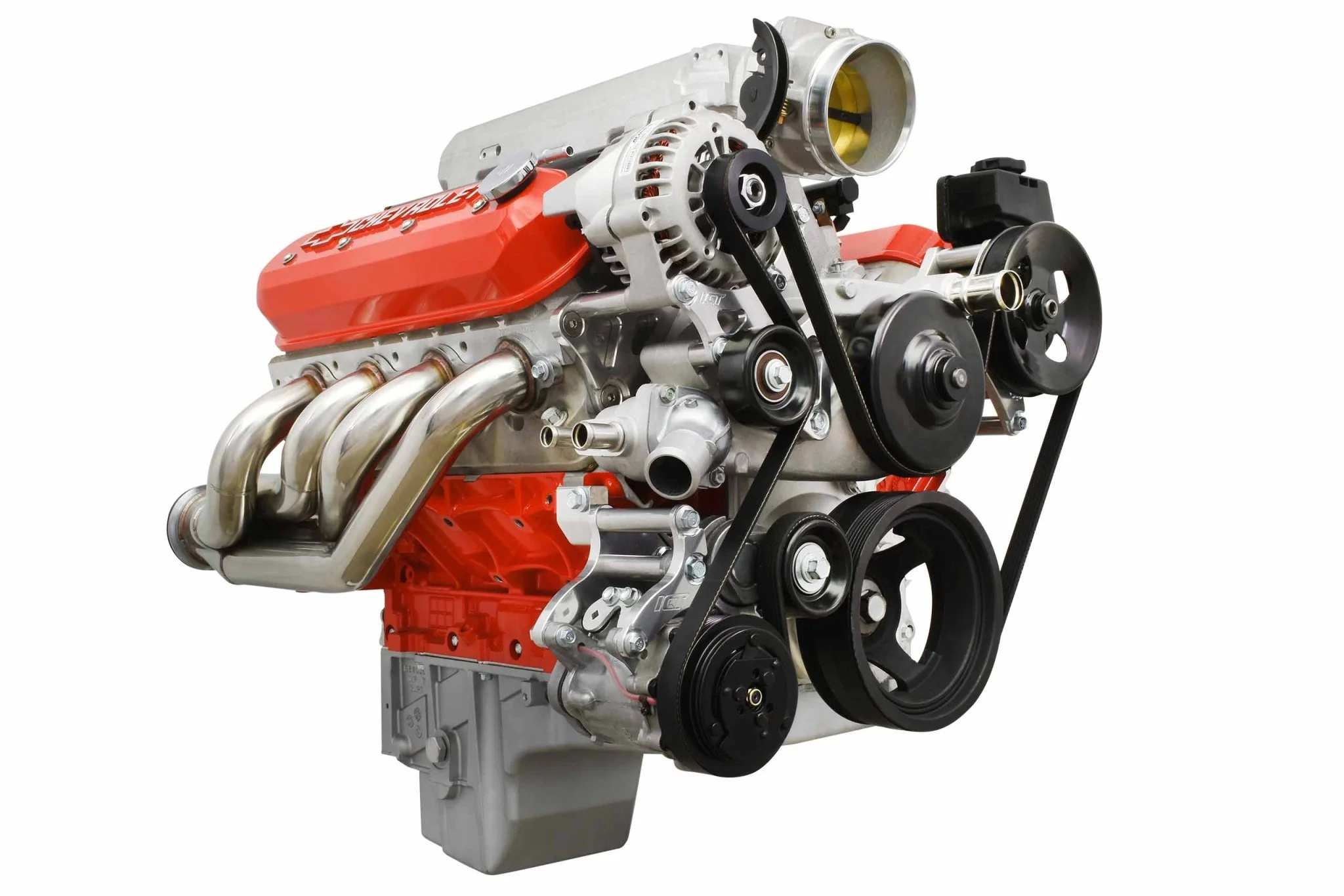

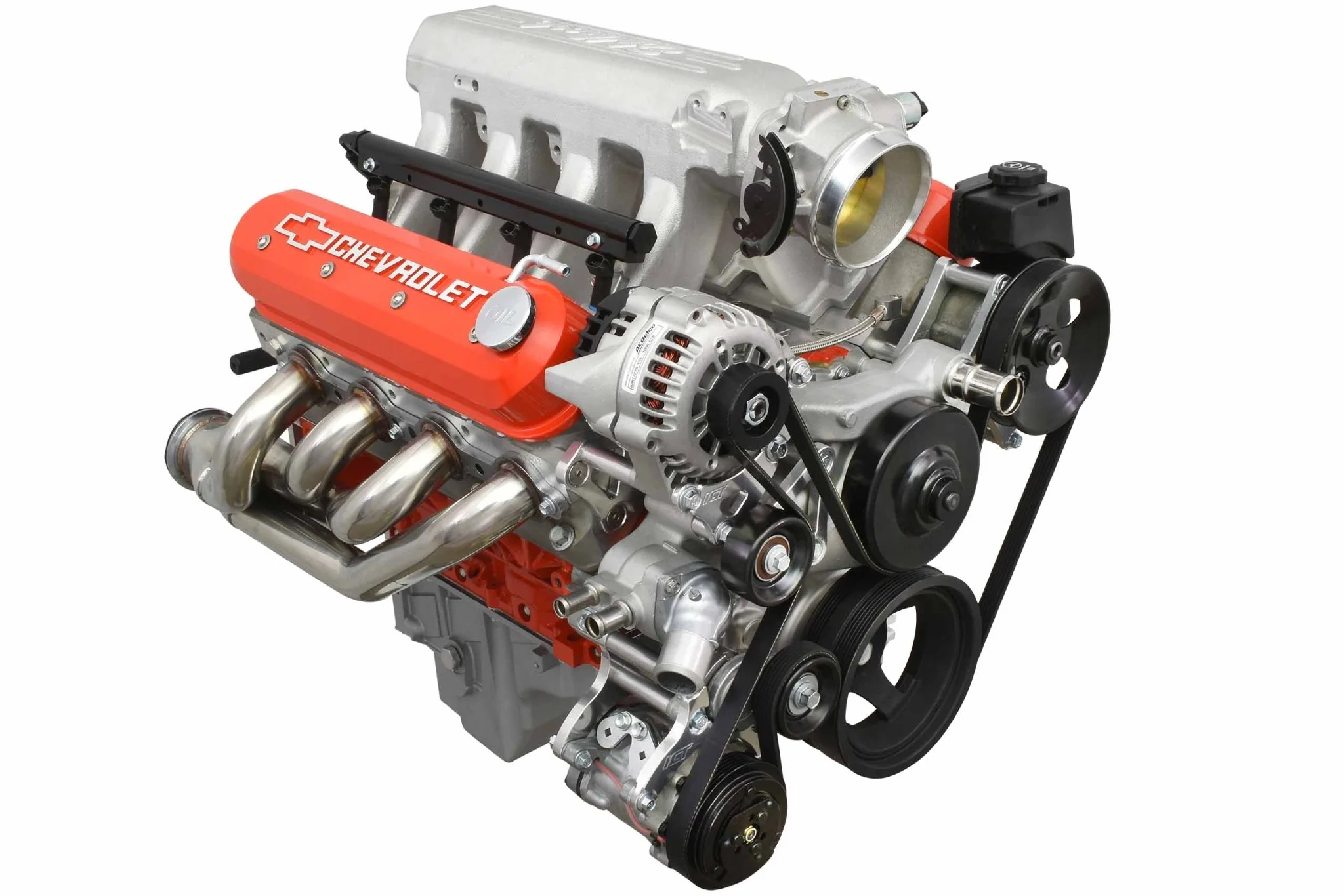

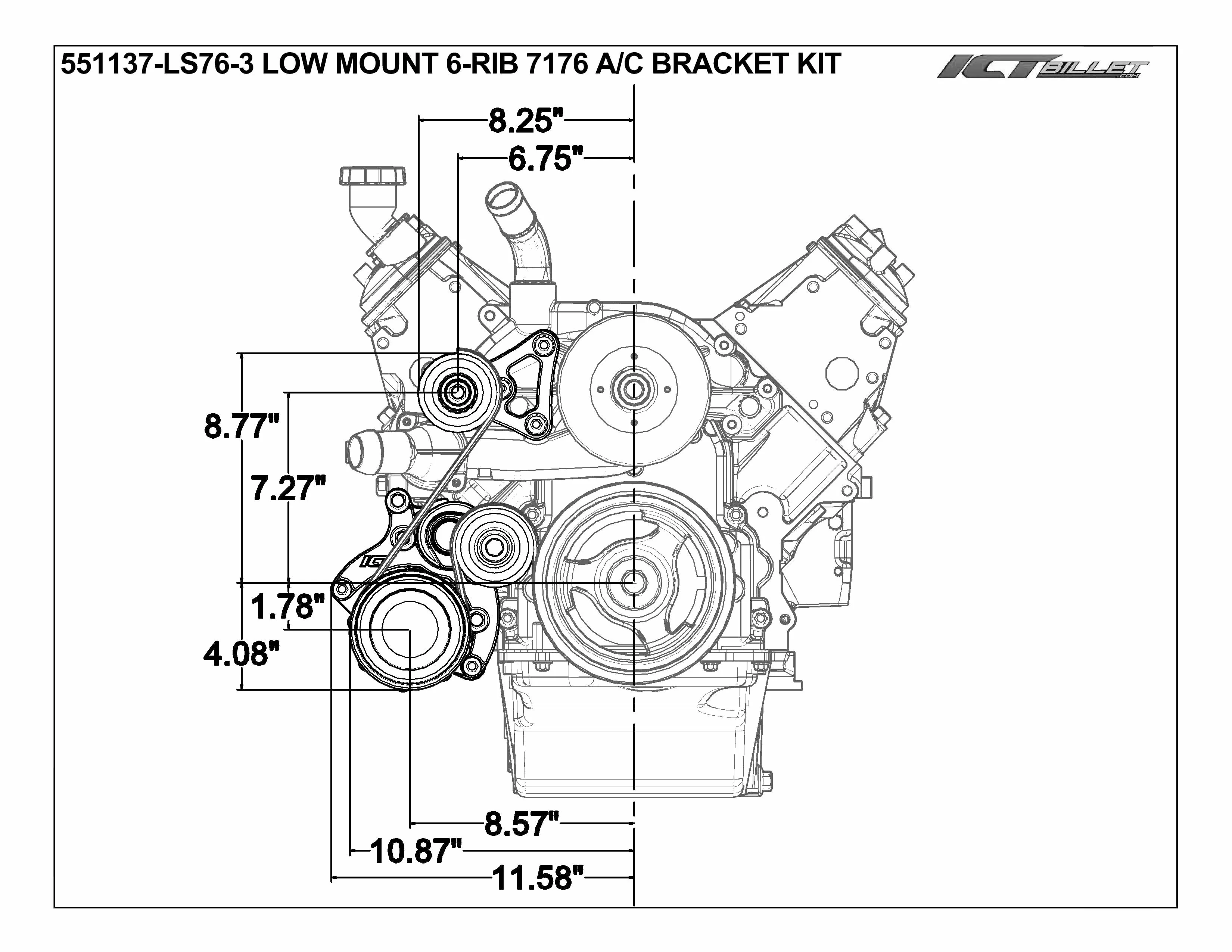

LS Truck Low Mount 6-Rib Sanden 7176 A/C Compressor Bracket
LS Truck 6-Rib Sanden 7176 A/C Compressor Bracket Kit
Fits LSX 4.8L 5.3L 6.0L 6.2L Engines

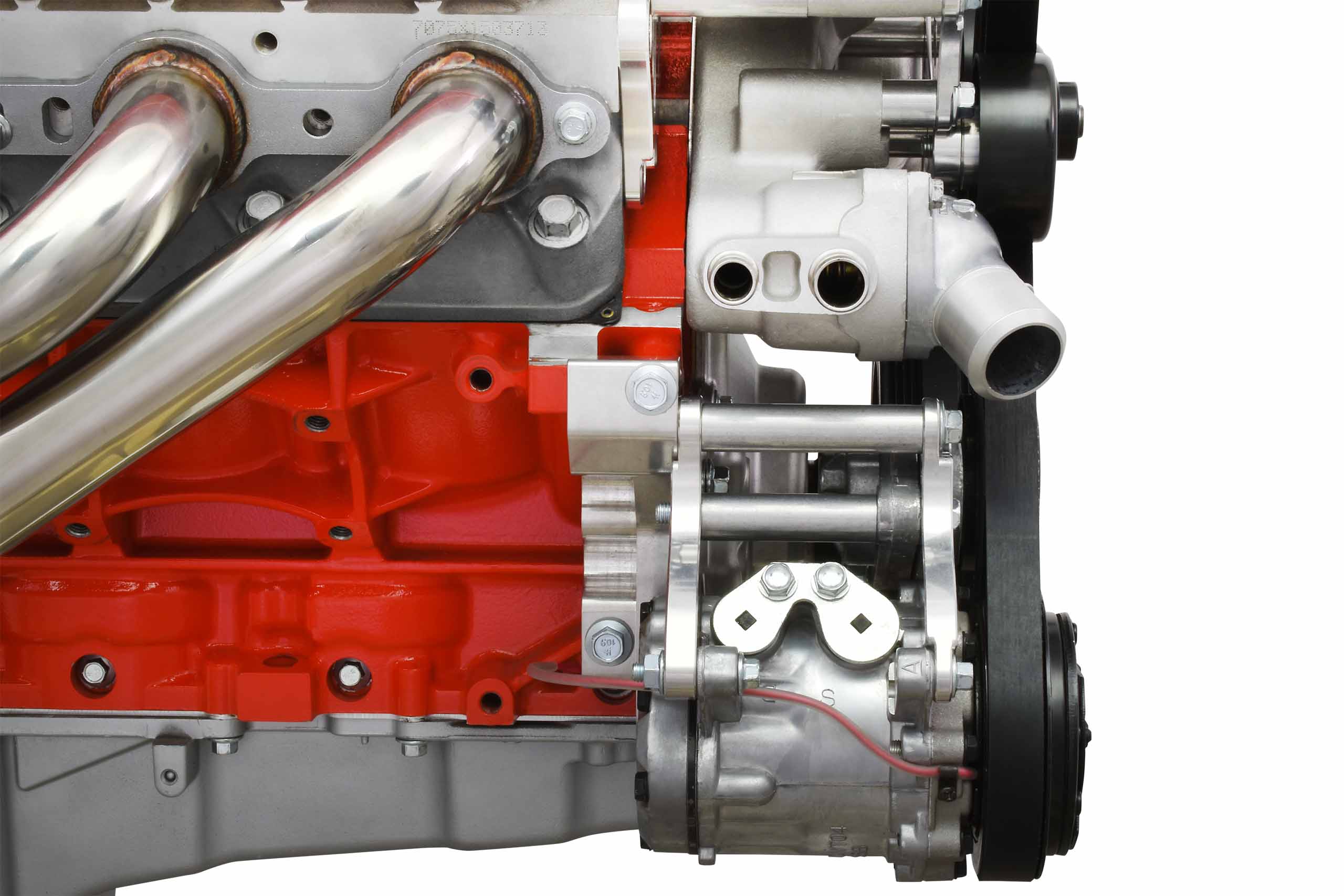

- Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

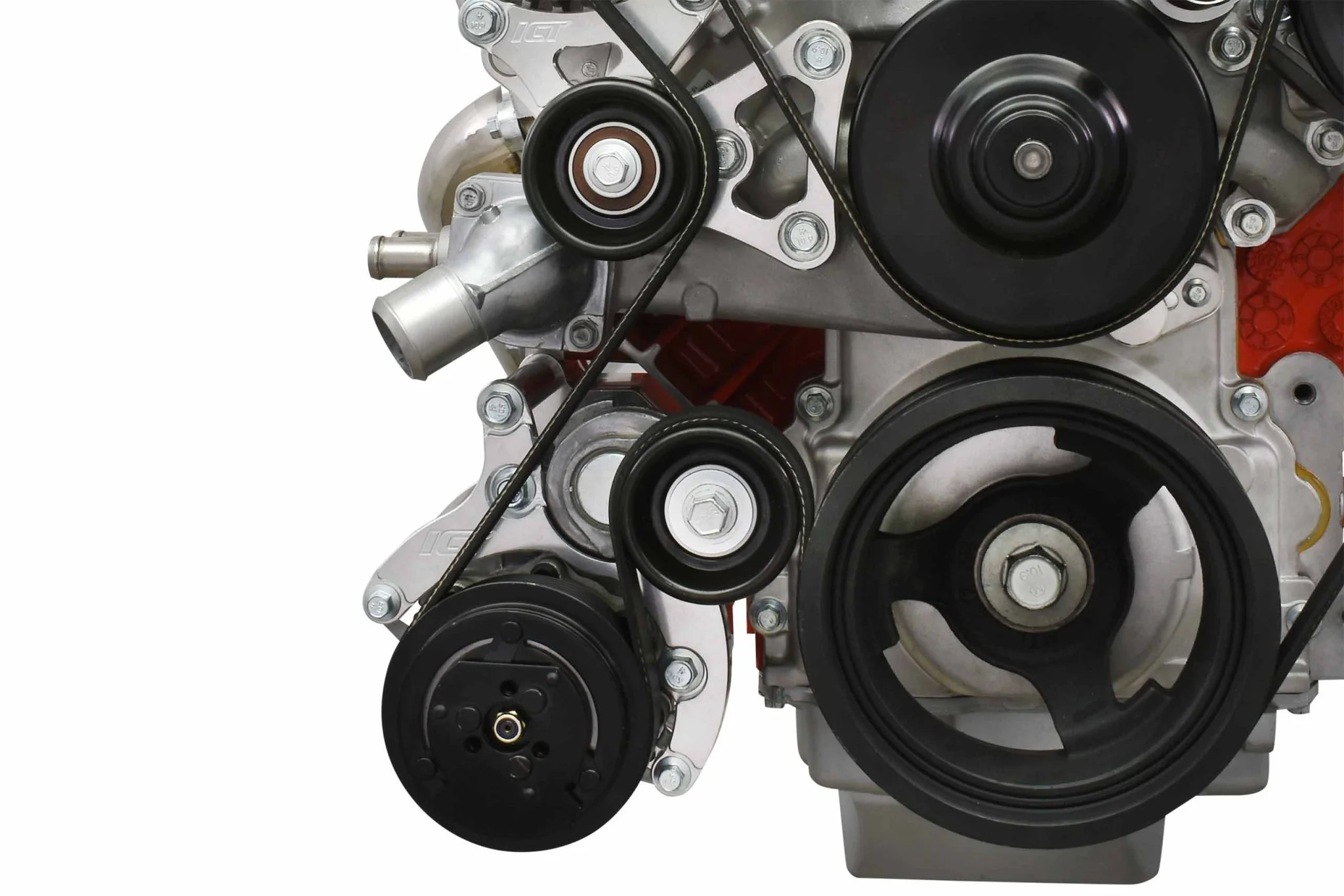

- Aligns compressor with the main, 6-rib belt on the crankshaft pulley
- Primarily used when mounting an alternator in front of passenger cylinder head with non-integrated belt tensioner.

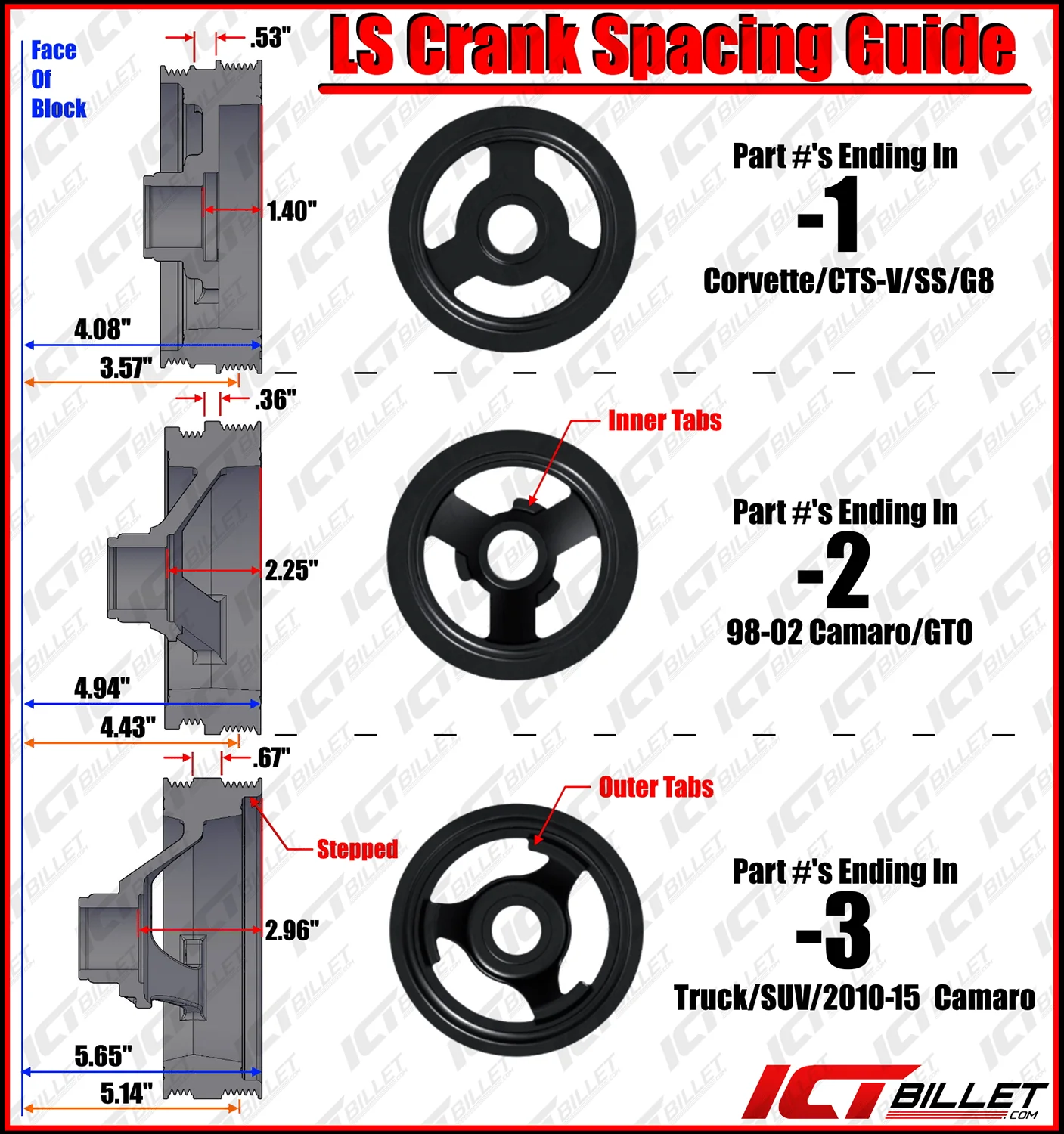

- Compatible with all LS series engines with Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Compatible with all truck-spacing water pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)
- Compatible with factory small block Chevy motor mount location using ICT Billet LS swap plates (ICT# 51628 and 51928)

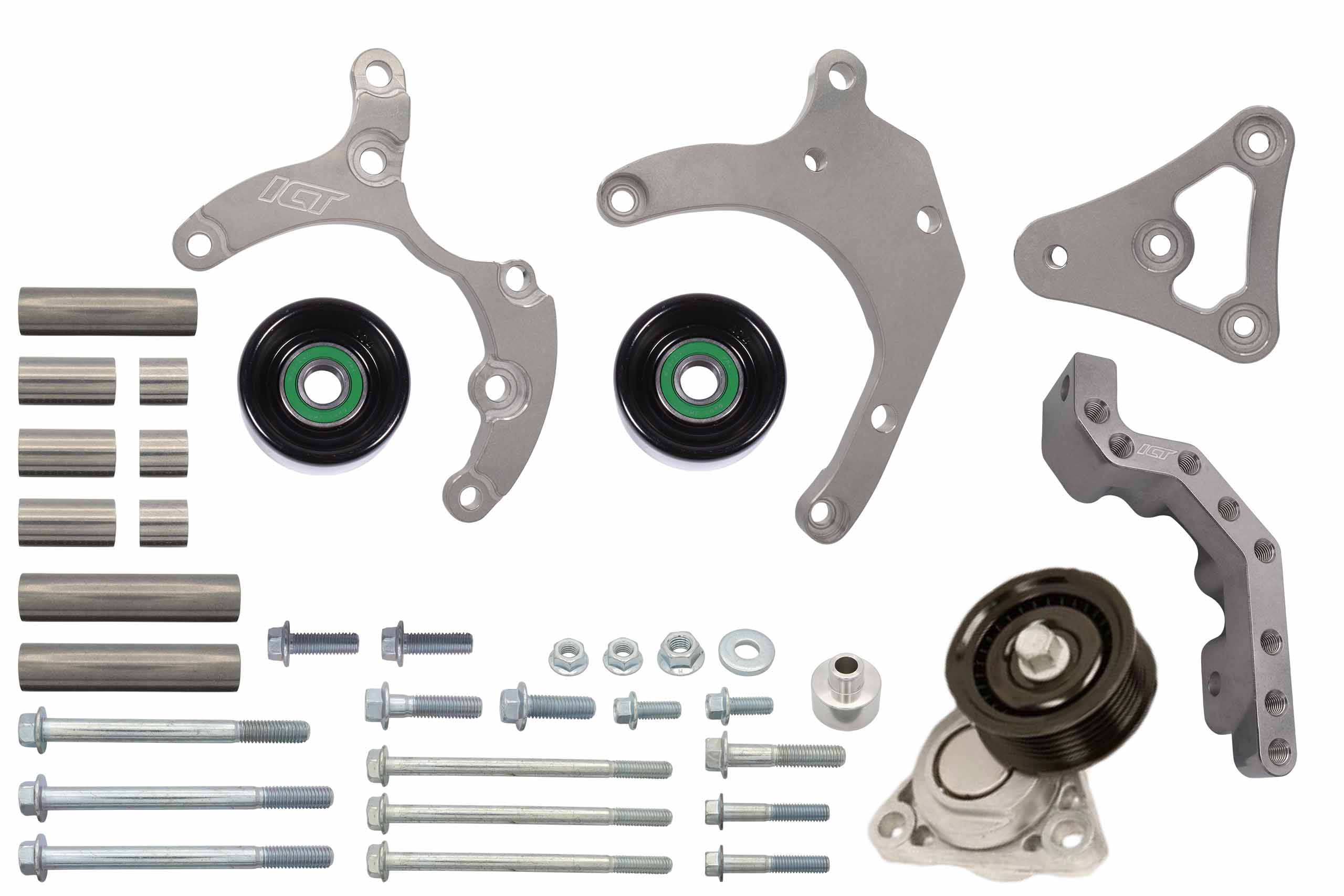

- Includes: Brackets, Idler Pulleys, Hardware, and Belt Tensioner
- Made from aerospace-grade billet aluminum
- Made in the USA
*NOTE THIS DOES NOT FIT FACTORY STYLE LS VEHICLE A/C COMPRESSORS
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Truck Low Mount 6-Rib Sanden 7176 A/C Compressor Bracket
LS Truck Low Mount 6-Rib Sanden 7176 A/C Compressor Bracket
LS Truck 6-Rib Sanden 7176 A/C Compressor Bracket Kit
Fits LSX 4.8L 5.3L 6.0L 6.2L Engines
- Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location
- Aligns compressor with the main, 6-rib belt on the crankshaft pulley
- Primarily used when mounting an alternator in front of passenger cylinder head with non-integrated belt tensioner.
- Compatible with all LS series engines with Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Compatible with all truck-spacing water pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)
- Compatible with factory small block Chevy motor mount location using ICT Billet LS swap plates (ICT# 51628 and 51928)
- Includes: Brackets, Idler Pulleys, Hardware, and Belt Tensioner
- Made from aerospace-grade billet aluminum
- Made in the USA
*NOTE THIS DOES NOT FIT FACTORY STYLE LS VEHICLE A/C COMPRESSORS
$359.99
LS Truck Low Mount 6-Rib Sanden 7176 A/C Compressor Bracket—
$359.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS Truck 6-Rib Sanden 7176 A/C Compressor Bracket Kit
Fits LSX 4.8L 5.3L 6.0L 6.2L Engines
- Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location
- Aligns compressor with the main, 6-rib belt on the crankshaft pulley
- Primarily used when mounting an alternator in front of passenger cylinder head with non-integrated belt tensioner.
- Compatible with all LS series engines with Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Compatible with all truck-spacing water pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)
- Compatible with factory small block Chevy motor mount location using ICT Billet LS swap plates (ICT# 51628 and 51928)
- Includes: Brackets, Idler Pulleys, Hardware, and Belt Tensioner
- Made from aerospace-grade billet aluminum
- Made in the USA
*NOTE THIS DOES NOT FIT FACTORY STYLE LS VEHICLE A/C COMPRESSORS
