FuelTech - 8HP Transmissions PCB Board
Fueltech 8HP Transmissions PCB Board

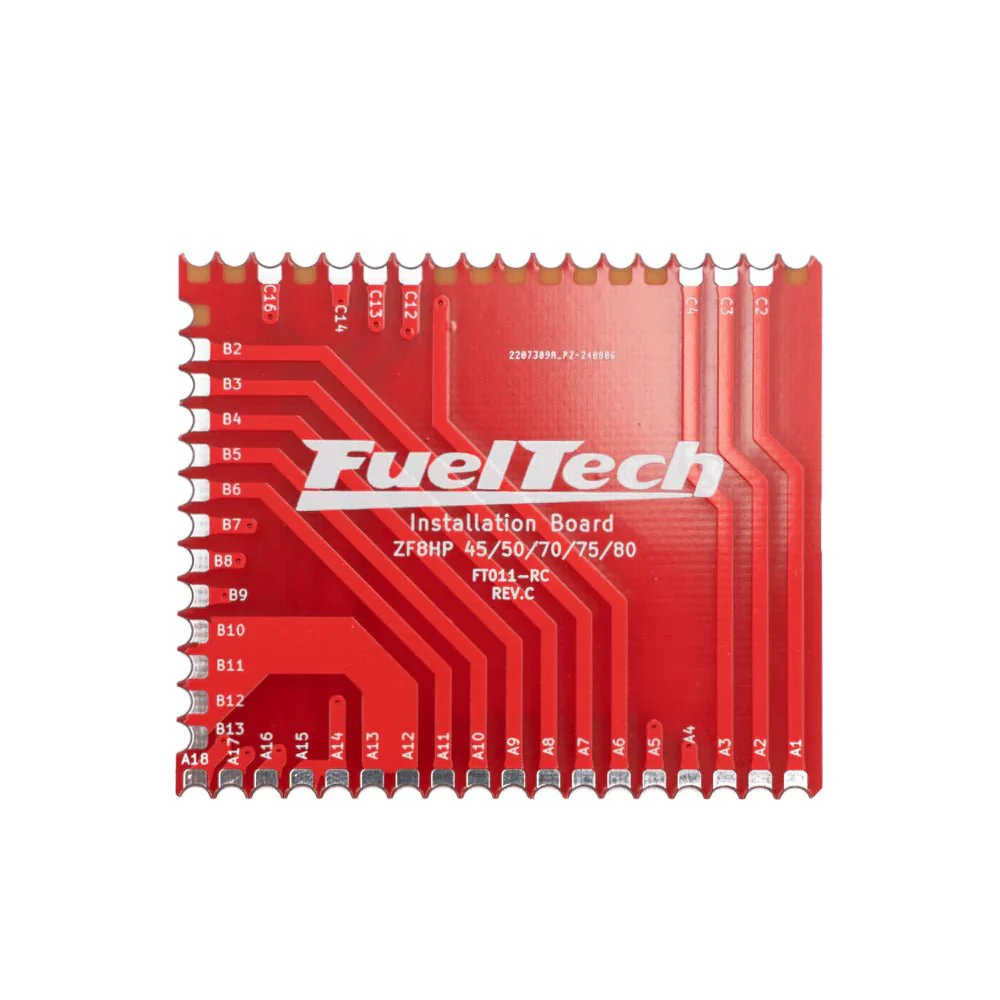

FuelTech 8HP Transmission PCB Board is a dedicated circuit board designed to command the 8HP automatic transmission with a FuelTech ECU
- Compatible with 8HP70/75/80/90
- Required to control the gear changes and transmission pressure according to the programmable map on the FuelTech ECU
- FuelTech ECU and FuelTech Peak and Hold PRO Injector Driver are also required for complete control of the 8HP transmission.
- Reduces the need for complex custom wiring or modifications.
Compatible with front and rear cam sync (1 and 4 pole cam) - Enables custom tuning of shift points, torque management, and response times.
Can be programmed for performance driving, drag racing, or fuel-efficient operation. - Compatible with any standalone ECU on the market
- 3 inputs are required: Inputshaft RPM, Transmission temperature and Driveshaft RPM
- 8 outputs required: Transmission Lockup / Solenoid A / Solenoid B / Solenoid C /
Solenoid D / Solenoid E / Solenoid F / Line pressure
Fueltech ECU and Peak and Hold PRO Injector Driver not included
Product Information
Product Information
Shipping & Returns
Shipping & Returns
FuelTech - 8HP Transmissions PCB Board
FuelTech - 8HP Transmissions PCB Board
Fueltech 8HP Transmissions PCB Board
FuelTech 8HP Transmission PCB Board is a dedicated circuit board designed to command the 8HP automatic transmission with a FuelTech ECU
- Compatible with 8HP70/75/80/90
- Required to control the gear changes and transmission pressure according to the programmable map on the FuelTech ECU
- FuelTech ECU and FuelTech Peak and Hold PRO Injector Driver are also required for complete control of the 8HP transmission.
- Reduces the need for complex custom wiring or modifications.
Compatible with front and rear cam sync (1 and 4 pole cam) - Enables custom tuning of shift points, torque management, and response times.
Can be programmed for performance driving, drag racing, or fuel-efficient operation. - Compatible with any standalone ECU on the market
- 3 inputs are required: Inputshaft RPM, Transmission temperature and Driveshaft RPM
- 8 outputs required: Transmission Lockup / Solenoid A / Solenoid B / Solenoid C /
Solenoid D / Solenoid E / Solenoid F / Line pressure
Fueltech ECU and Peak and Hold PRO Injector Driver not included
$29.70
Original: $99.00
-70%FuelTech - 8HP Transmissions PCB Board—
$99.00
$29.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fueltech 8HP Transmissions PCB Board
FuelTech 8HP Transmission PCB Board is a dedicated circuit board designed to command the 8HP automatic transmission with a FuelTech ECU
- Compatible with 8HP70/75/80/90
- Required to control the gear changes and transmission pressure according to the programmable map on the FuelTech ECU
- FuelTech ECU and FuelTech Peak and Hold PRO Injector Driver are also required for complete control of the 8HP transmission.
- Reduces the need for complex custom wiring or modifications.
Compatible with front and rear cam sync (1 and 4 pole cam) - Enables custom tuning of shift points, torque management, and response times.
Can be programmed for performance driving, drag racing, or fuel-efficient operation. - Compatible with any standalone ECU on the market
- 3 inputs are required: Inputshaft RPM, Transmission temperature and Driveshaft RPM
- 8 outputs required: Transmission Lockup / Solenoid A / Solenoid B / Solenoid C /
Solenoid D / Solenoid E / Solenoid F / Line pressure
Fueltech ECU and Peak and Hold PRO Injector Driver not included
