Camaro/CTS-V LT4 Supercharger to LS3/LSA Head Adapter Kit – 16 Injector Ports

Complete Adapter Kit for Camaro/CTS-V LT4 Superchargers on LS3/LSA Heads. Fits any LS engine (4.8L, 5.3L, 6.0L, 6.2L) that has "rectangle" port heads (engine RPO codes: LS3, L99, LSA, L94, L76, L77, L96, L98, L92, L9H, LY6, LFA, LZ1, LS9, and some LSX).

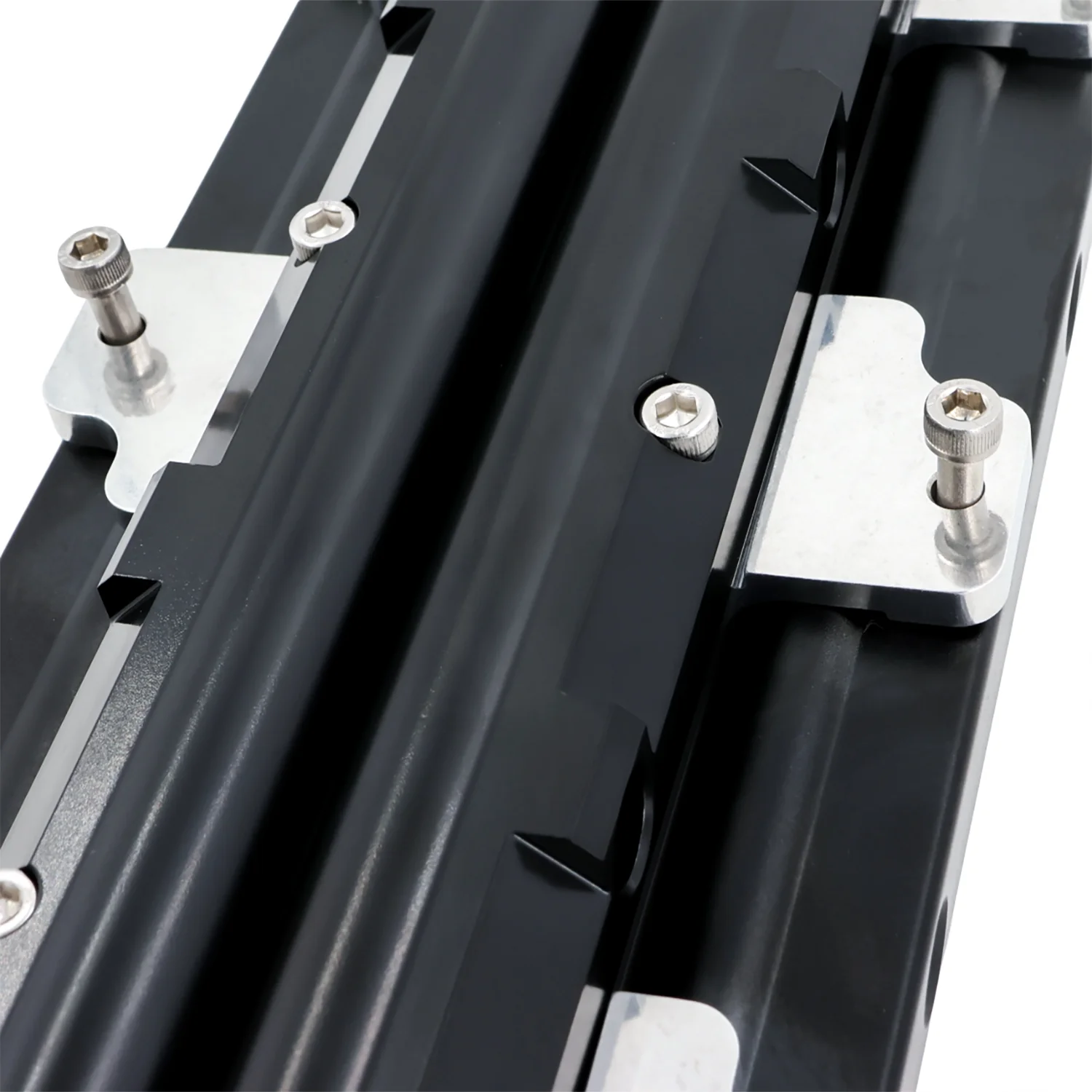

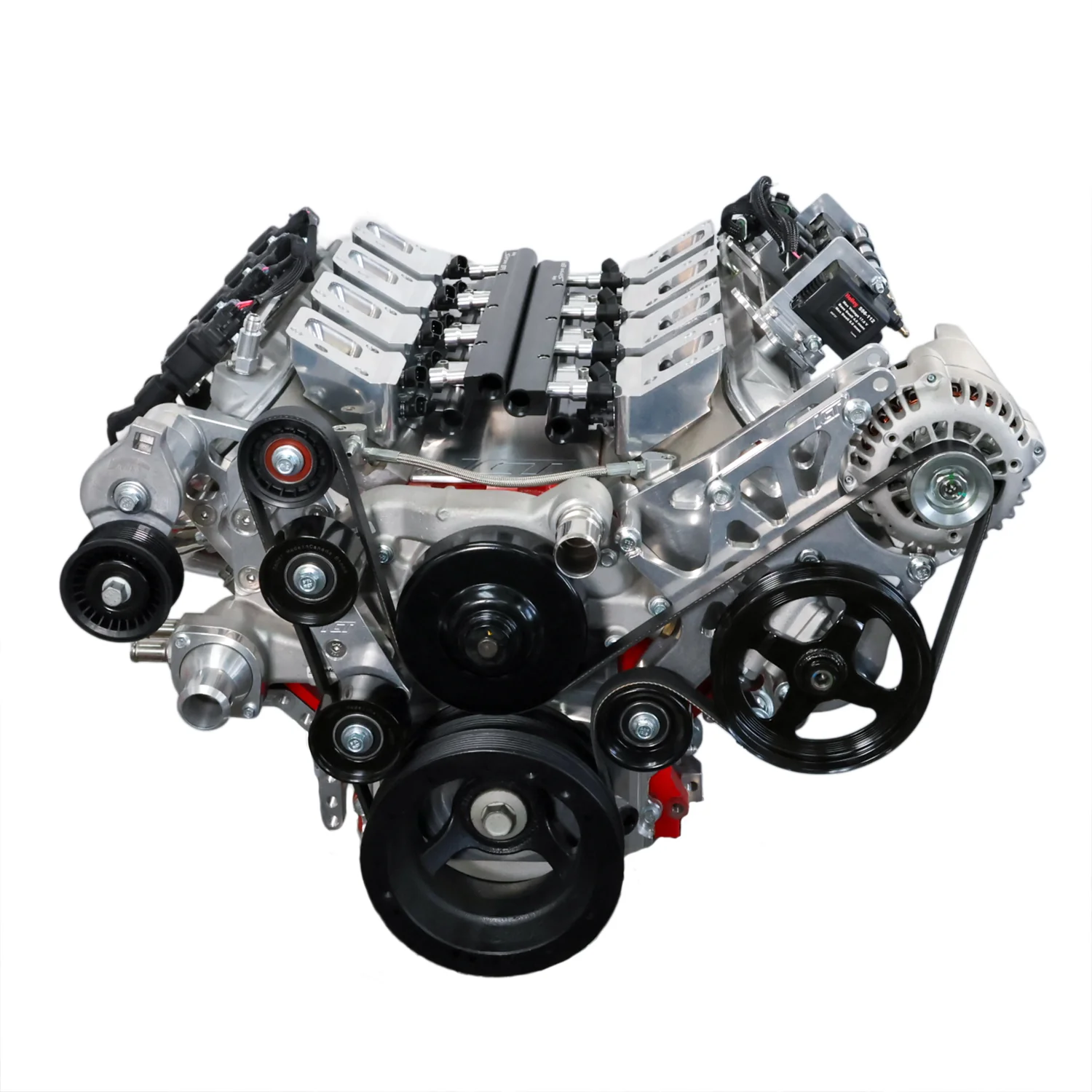

This adapter kit lets you mount a Camaro or CTS-V LT4 supercharger to LS3 or LSA square-port heads with 16 injector ports for dual-stage fueling. Each cylinder receives two injectors, supported by four billet fuel rails and spacers. Designed for high-performance applications, this kit includes a specific hub and pulley adapter to ensure proper blower alignment to LSA balancer spacing.

• Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)
• Measures 10.125" from top of engine block to top of Camaro supercharger lid (13.0" for Escalade V supercharger)

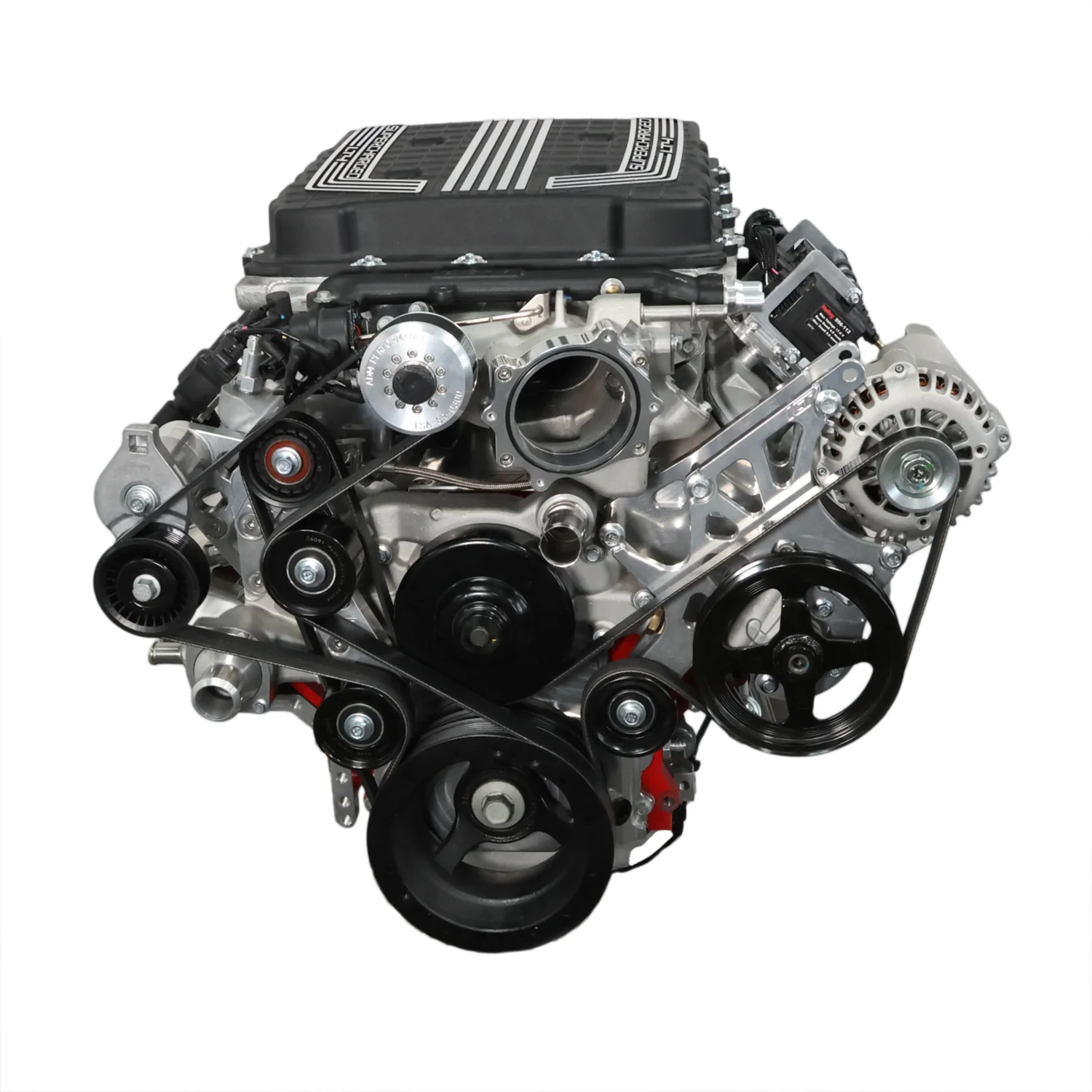

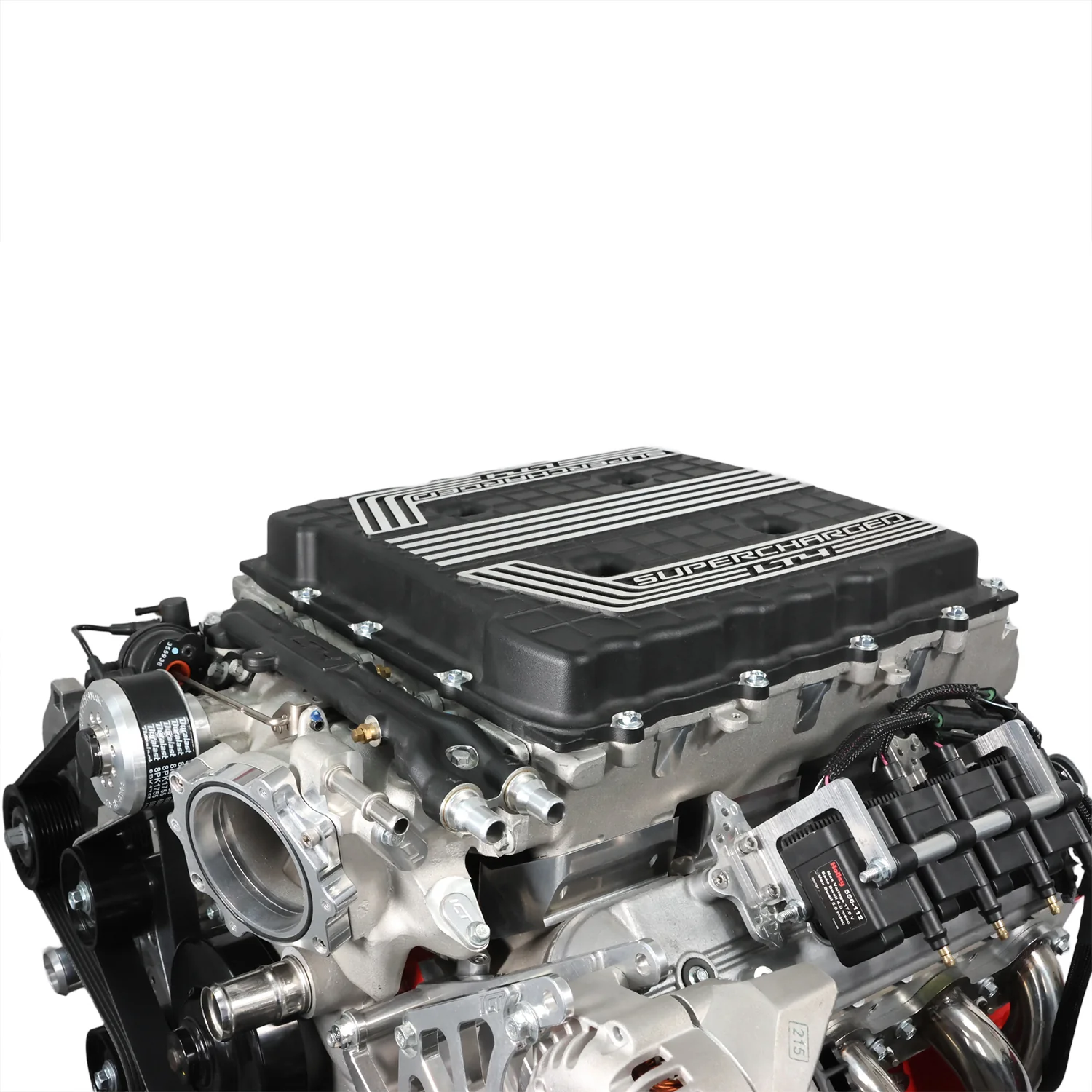

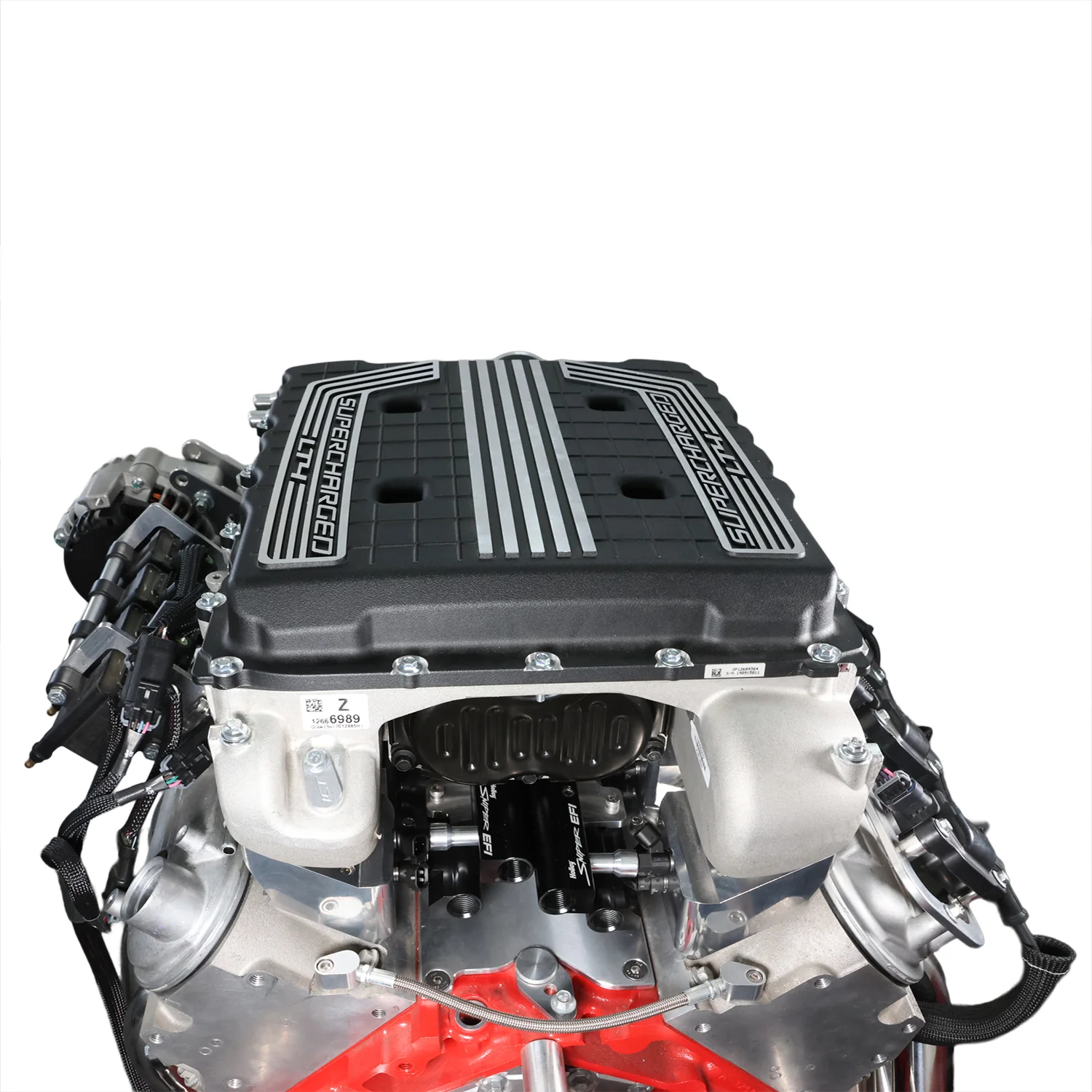

• Mounts Camaro/CTS-V LT4 supercharger to LS3/LSA heads

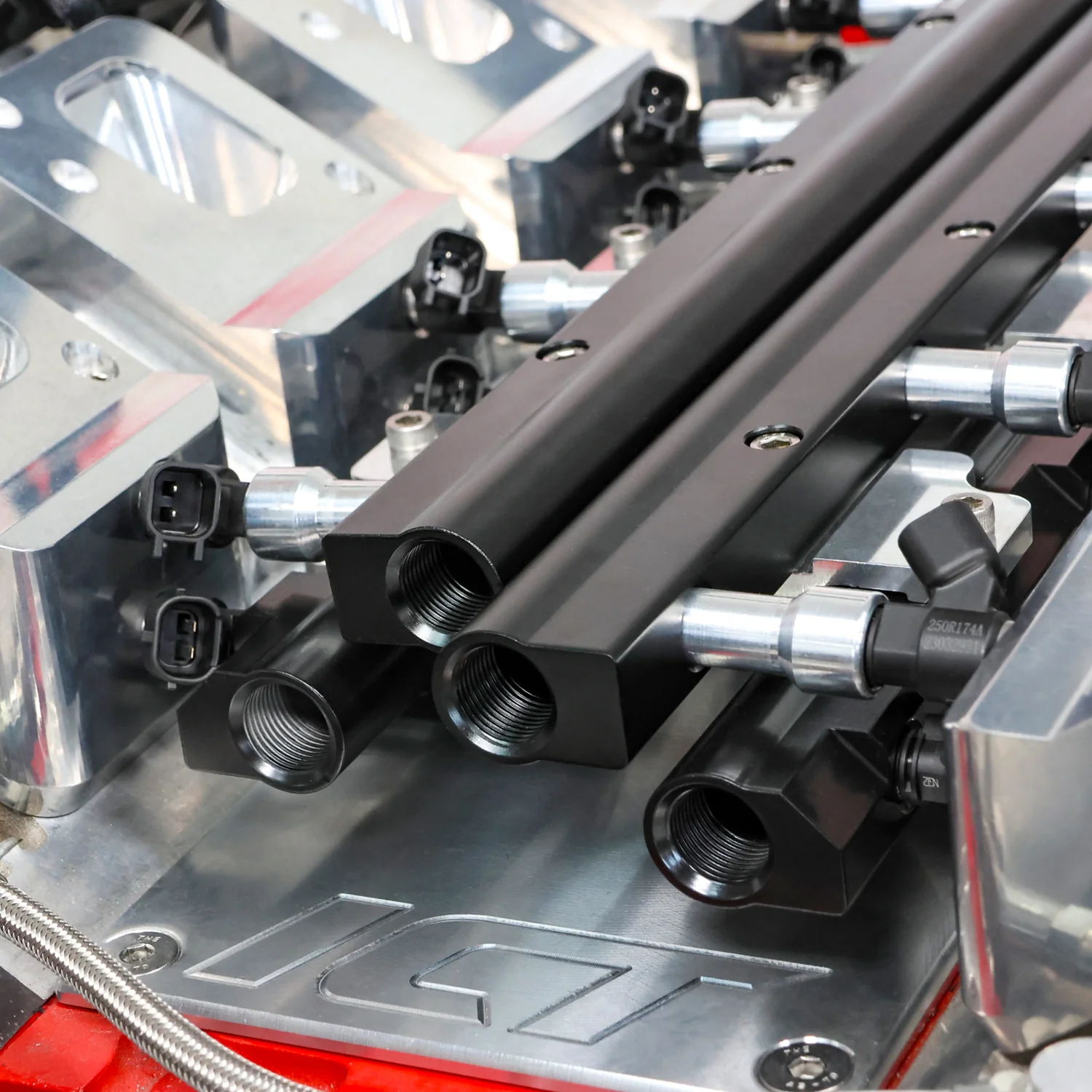

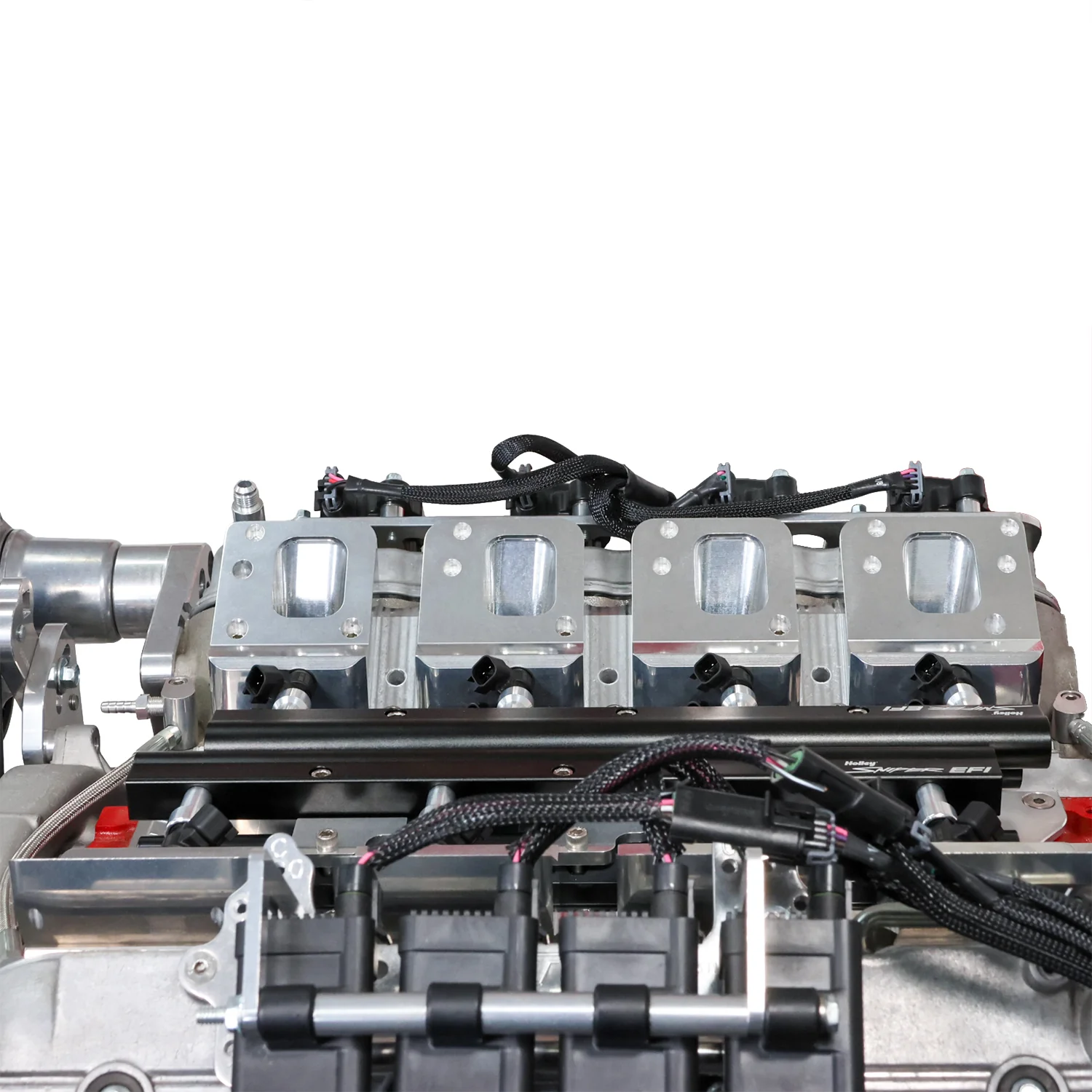

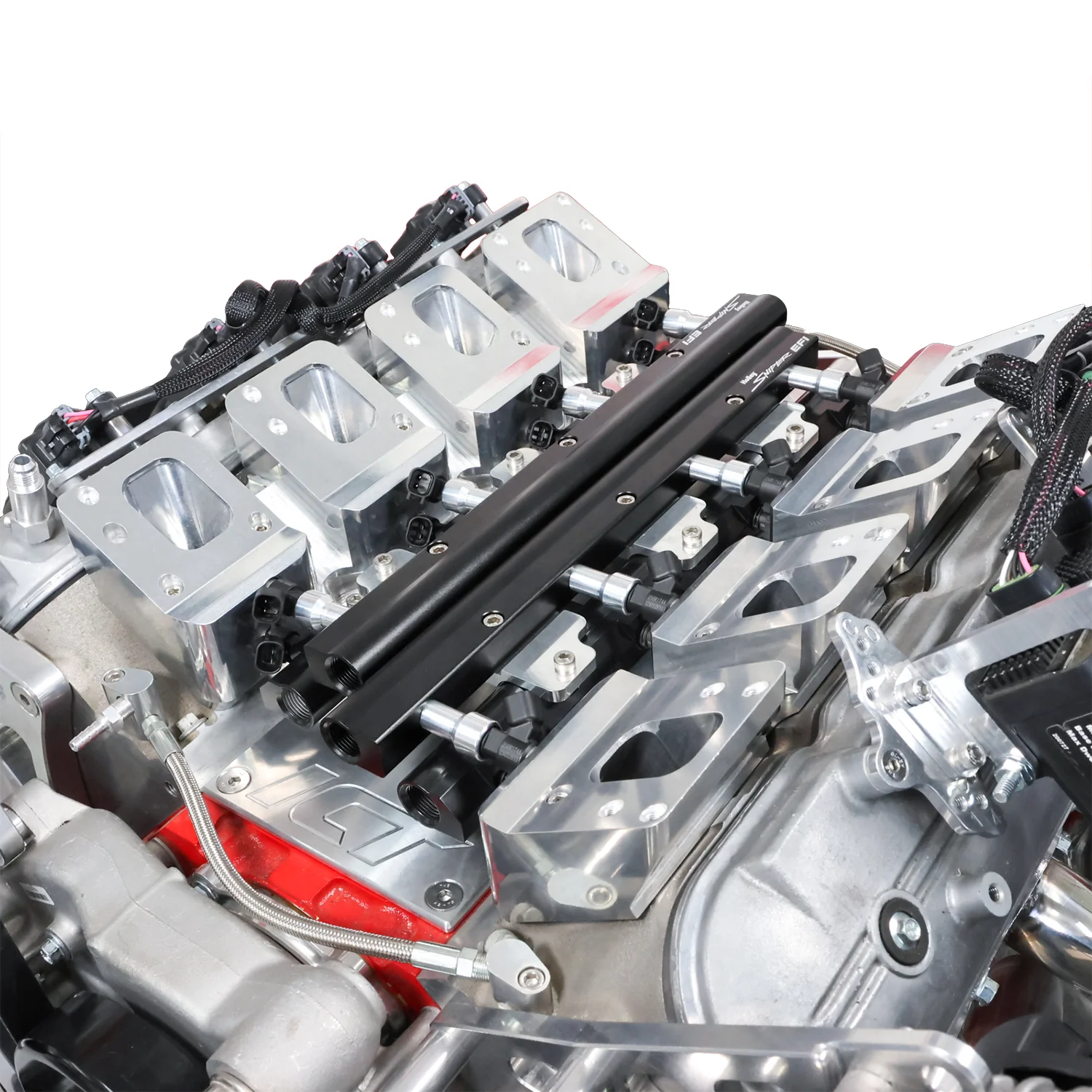

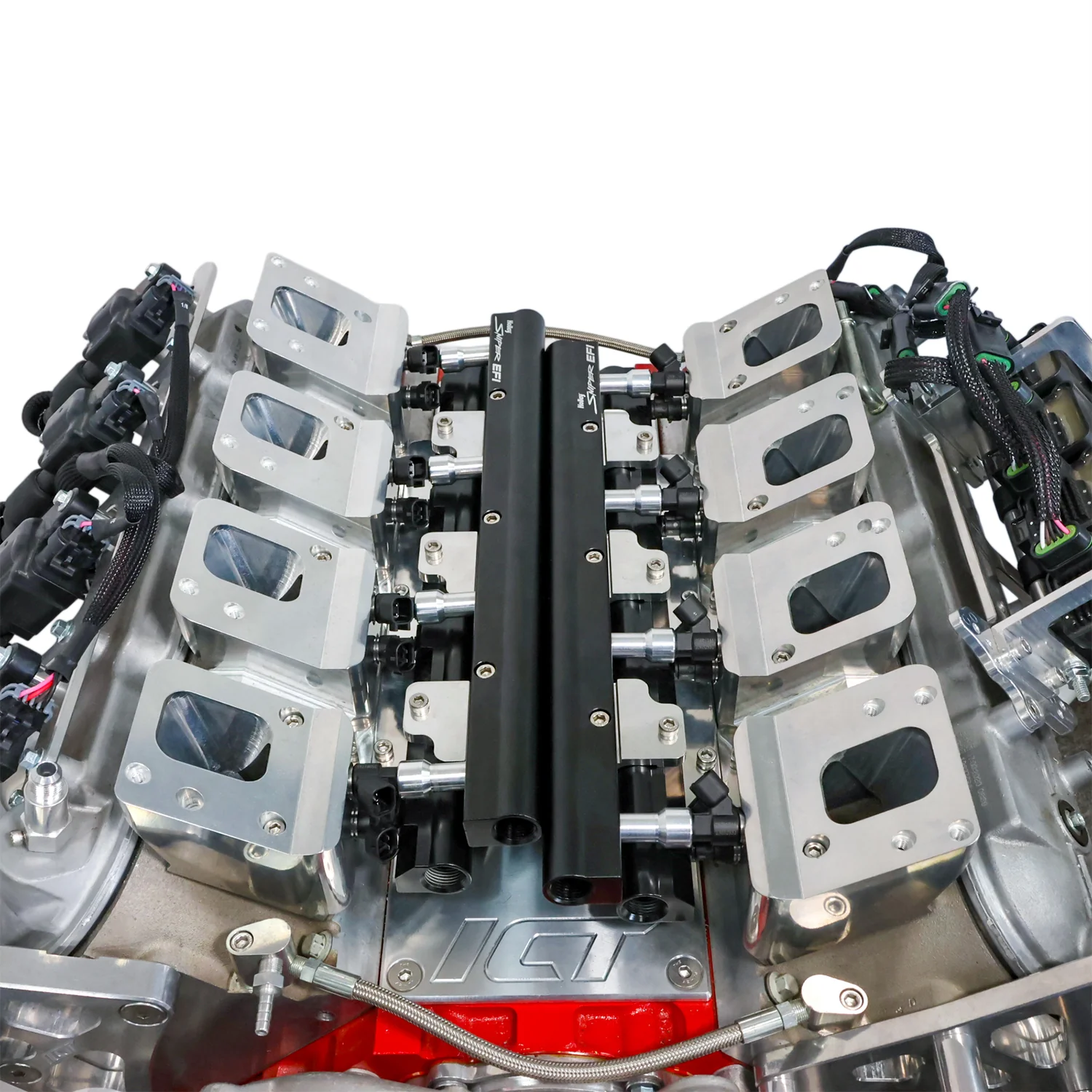

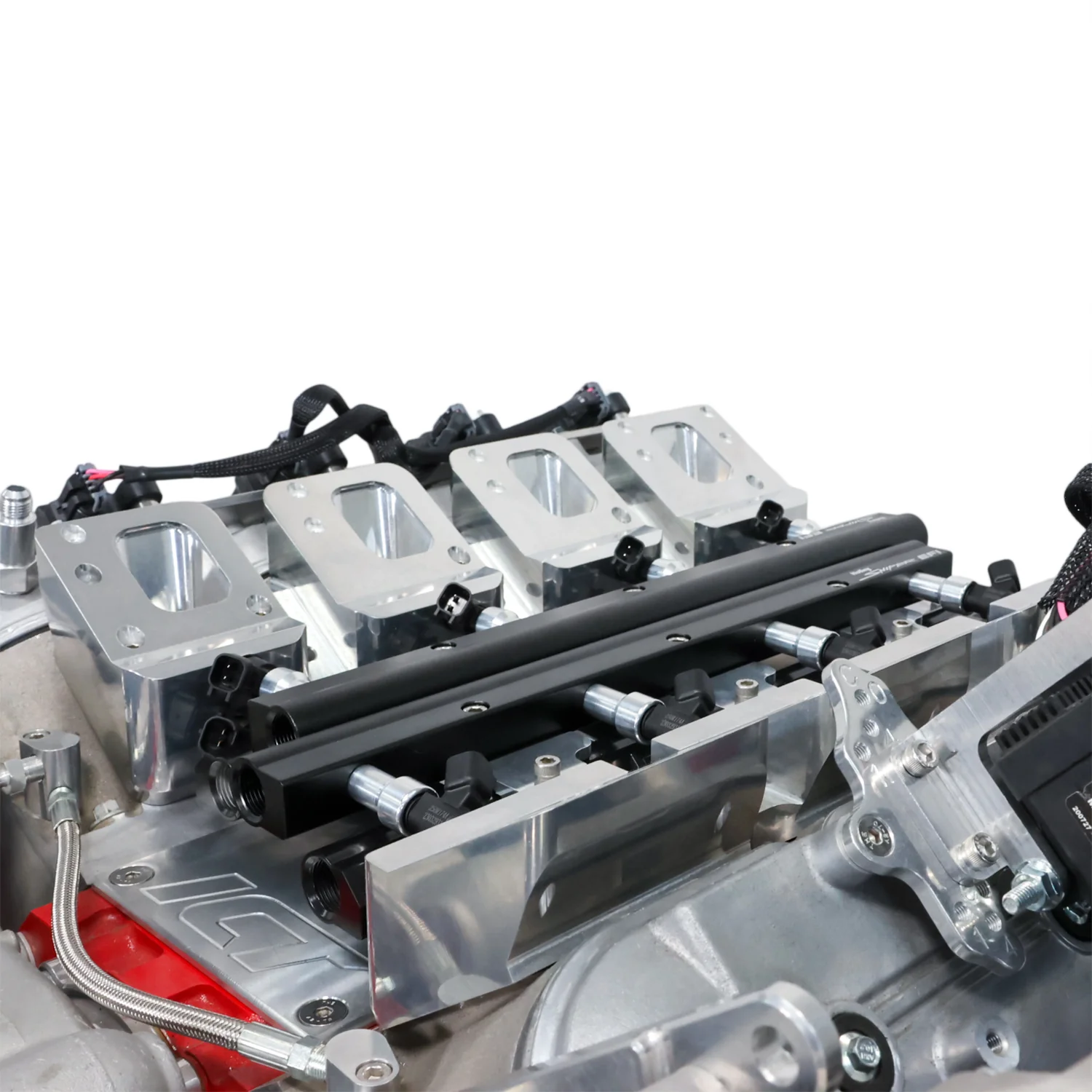

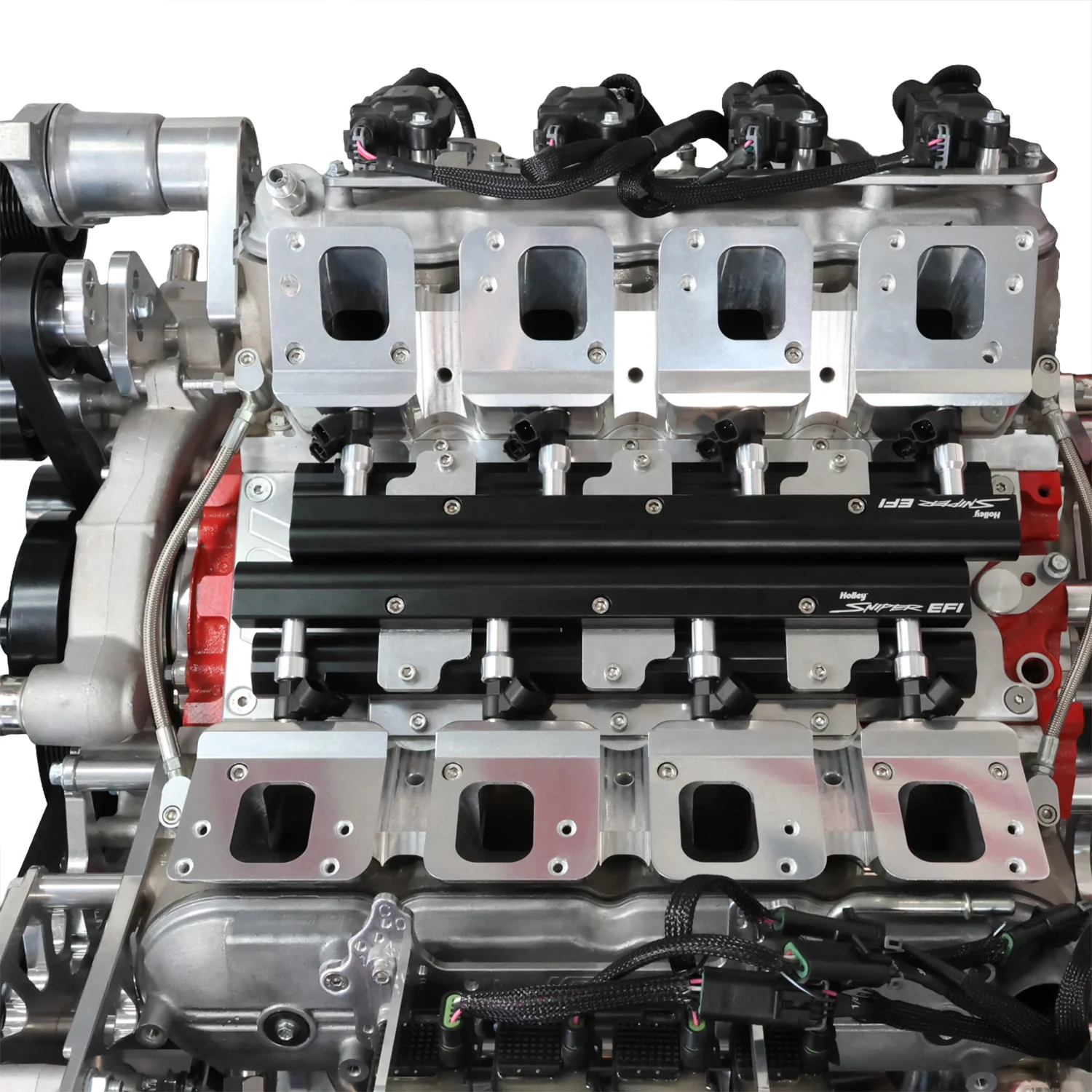

• Features 16 injector ports (dual-injector per cylinder)

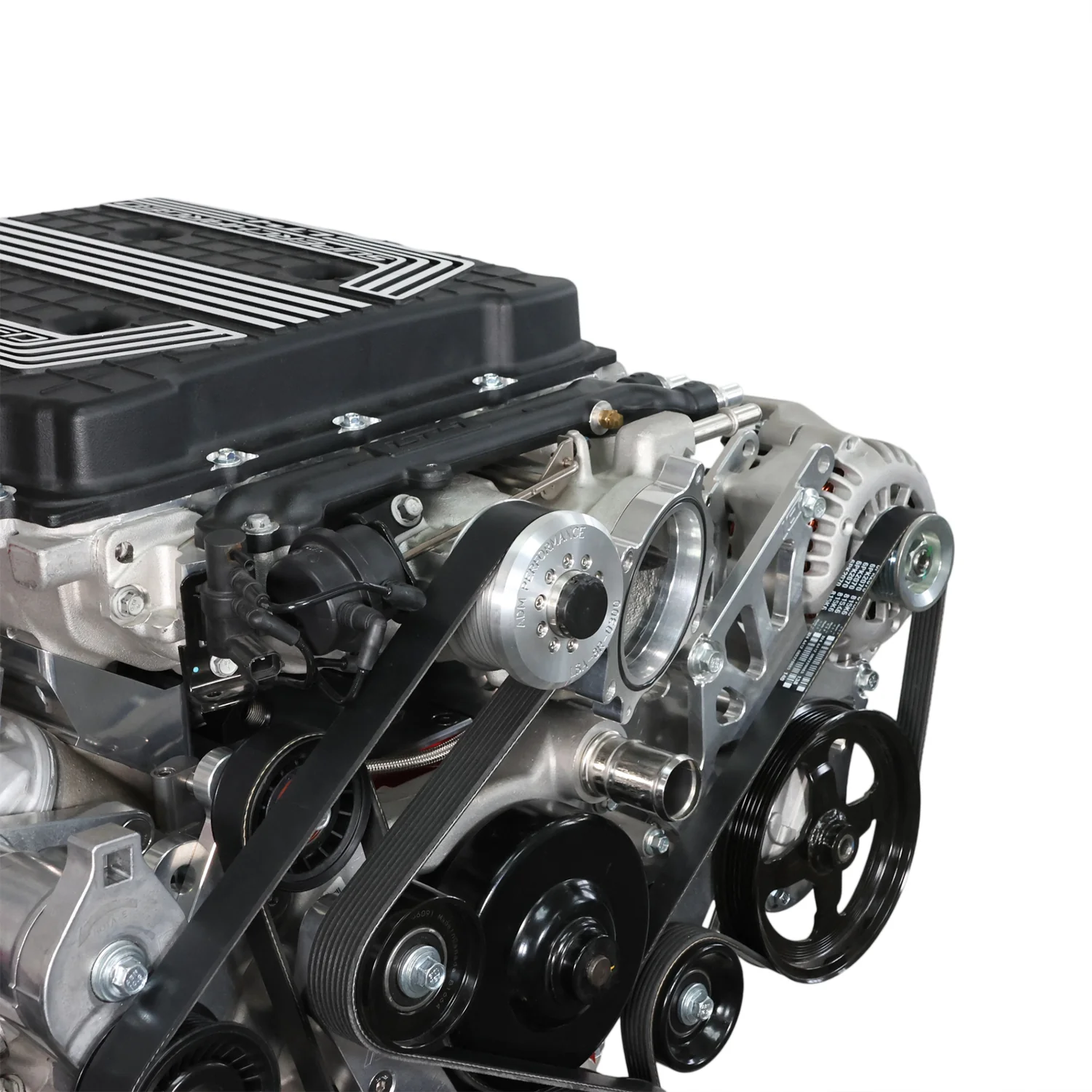

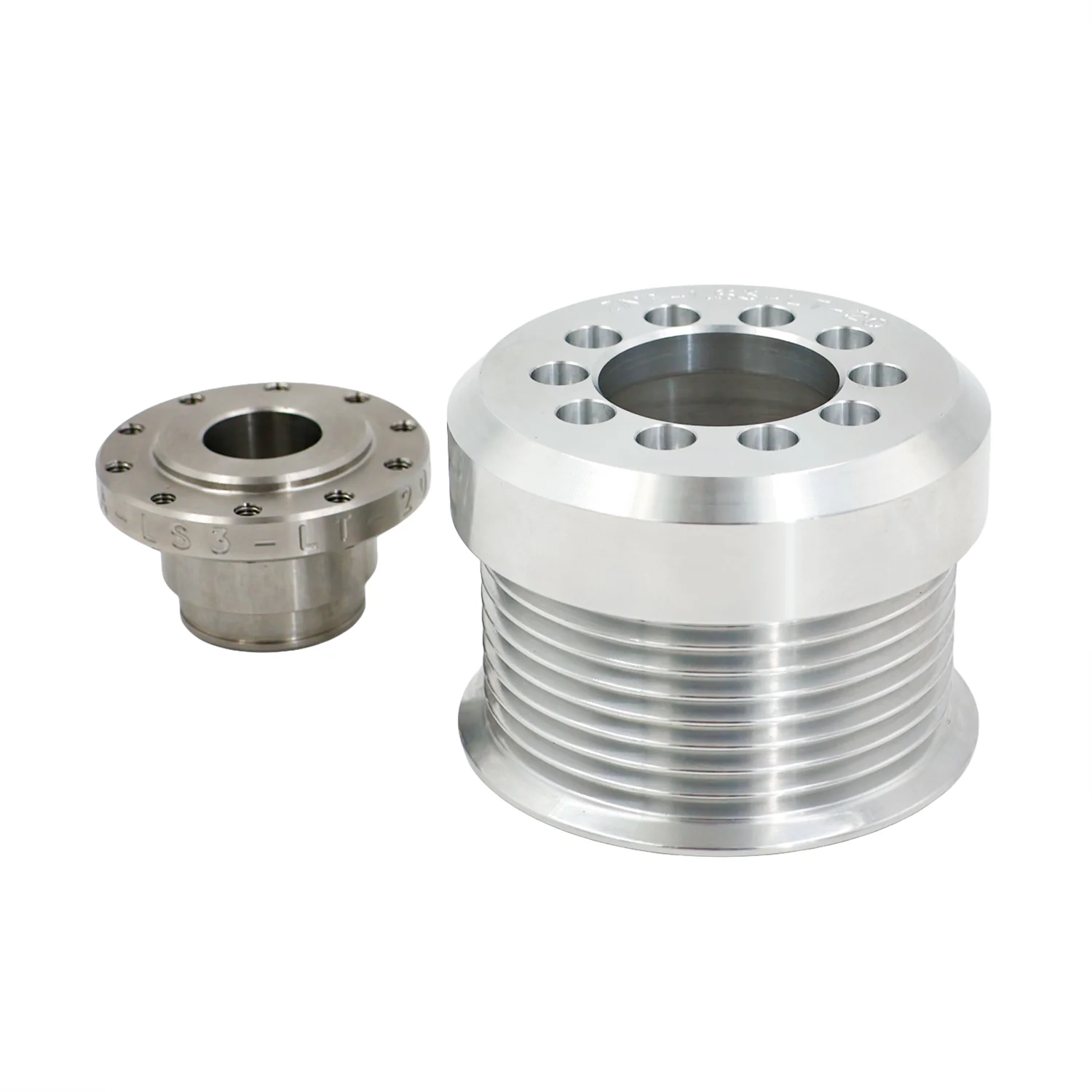

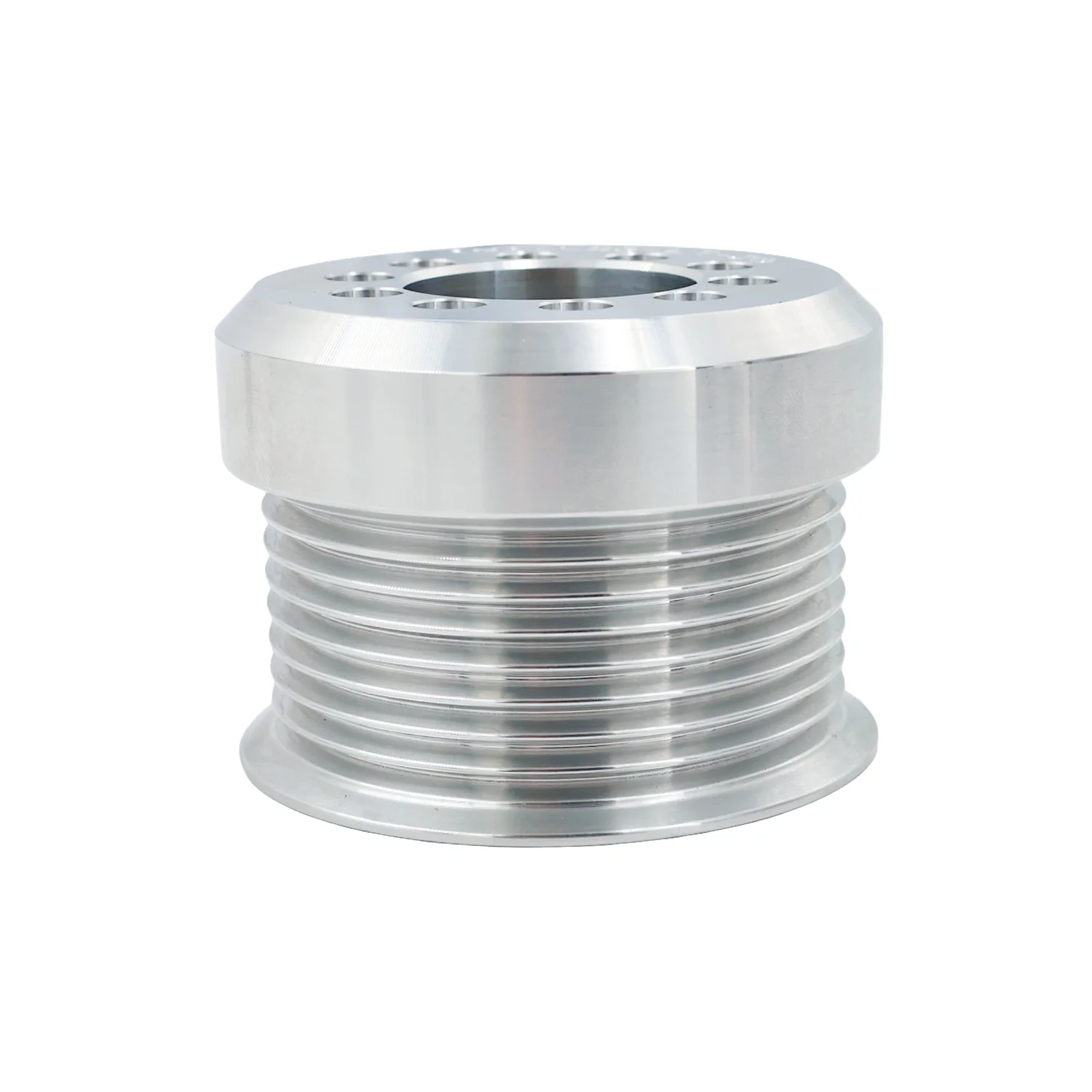

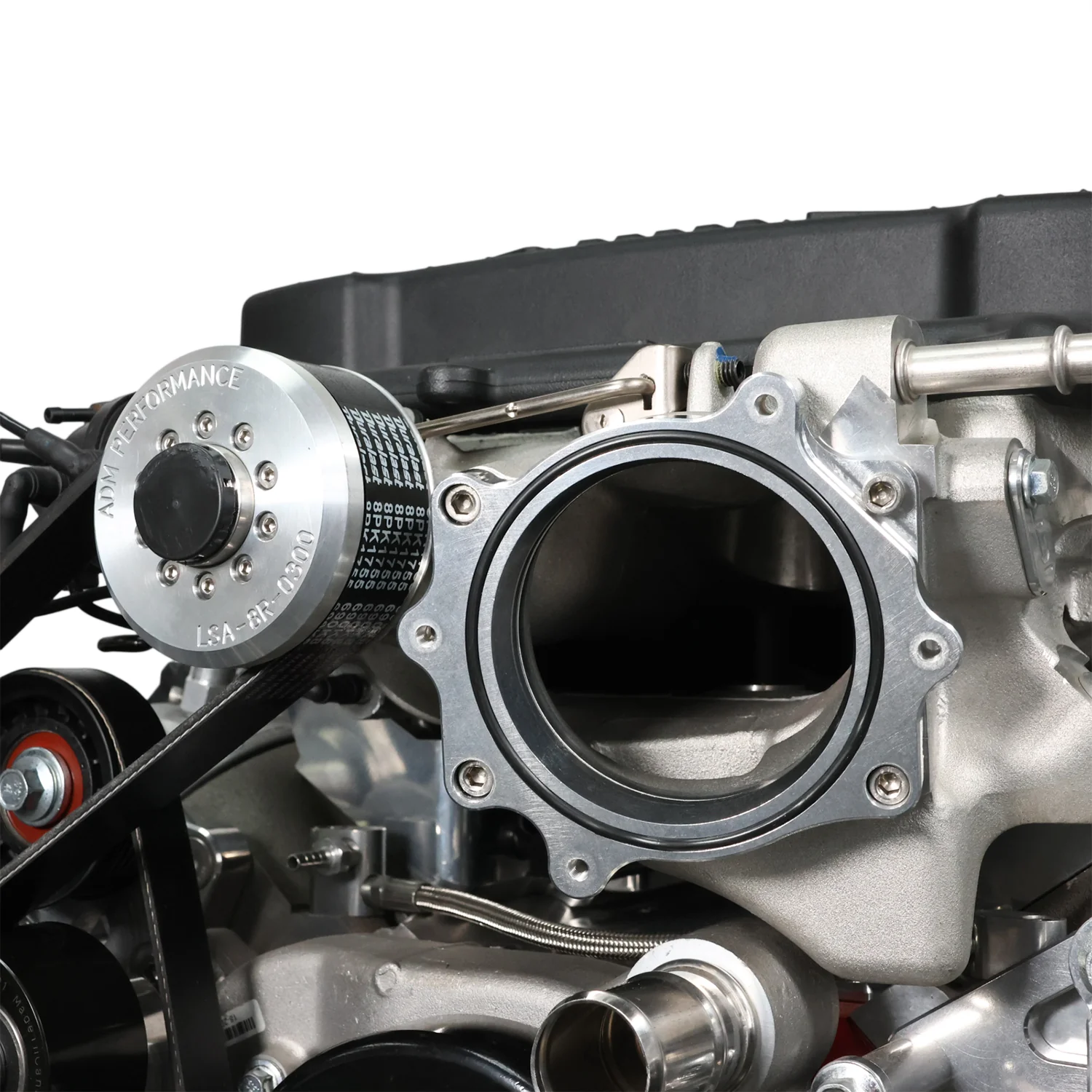

• Includes specific pulley and hub for Camaro/CTS-V blower geometry

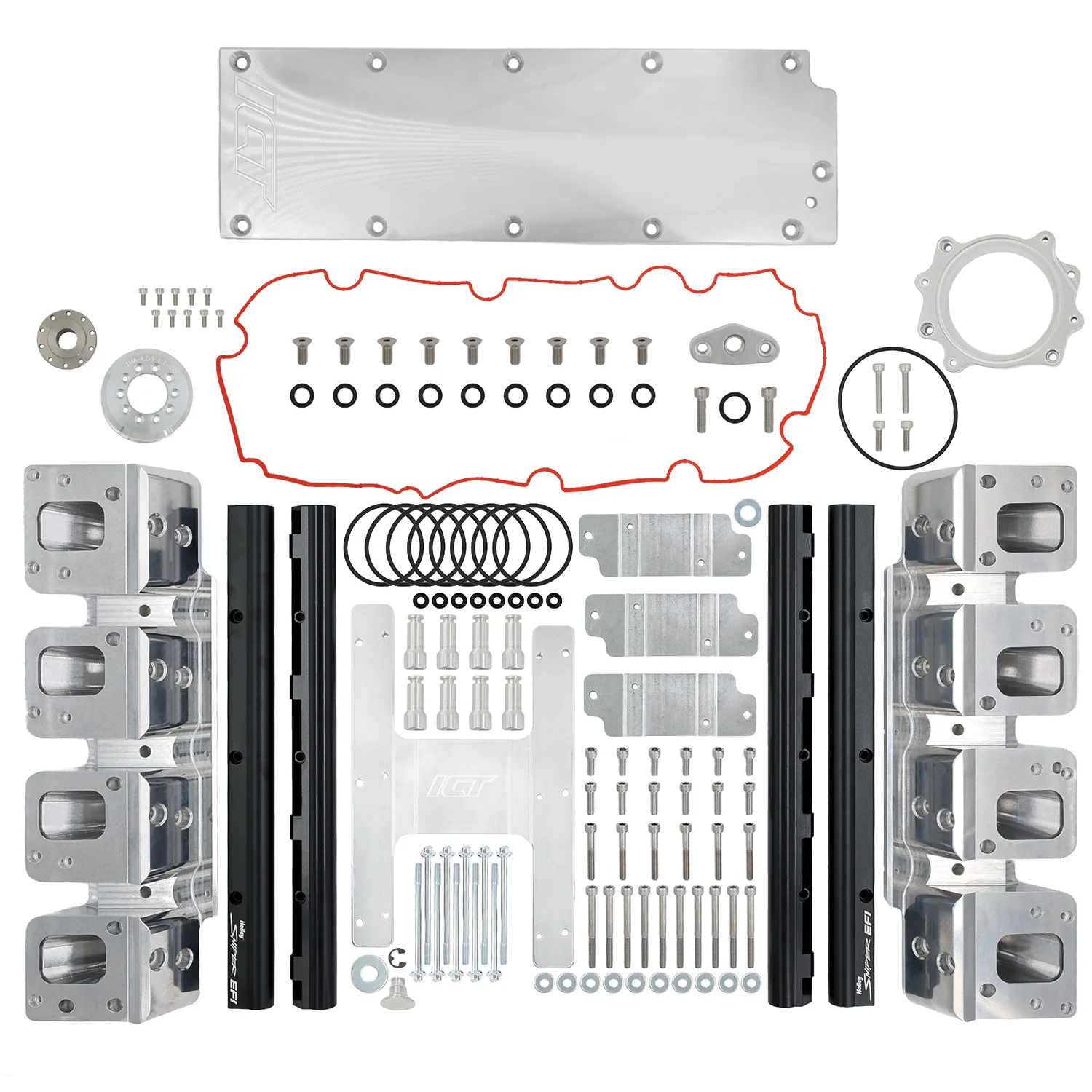

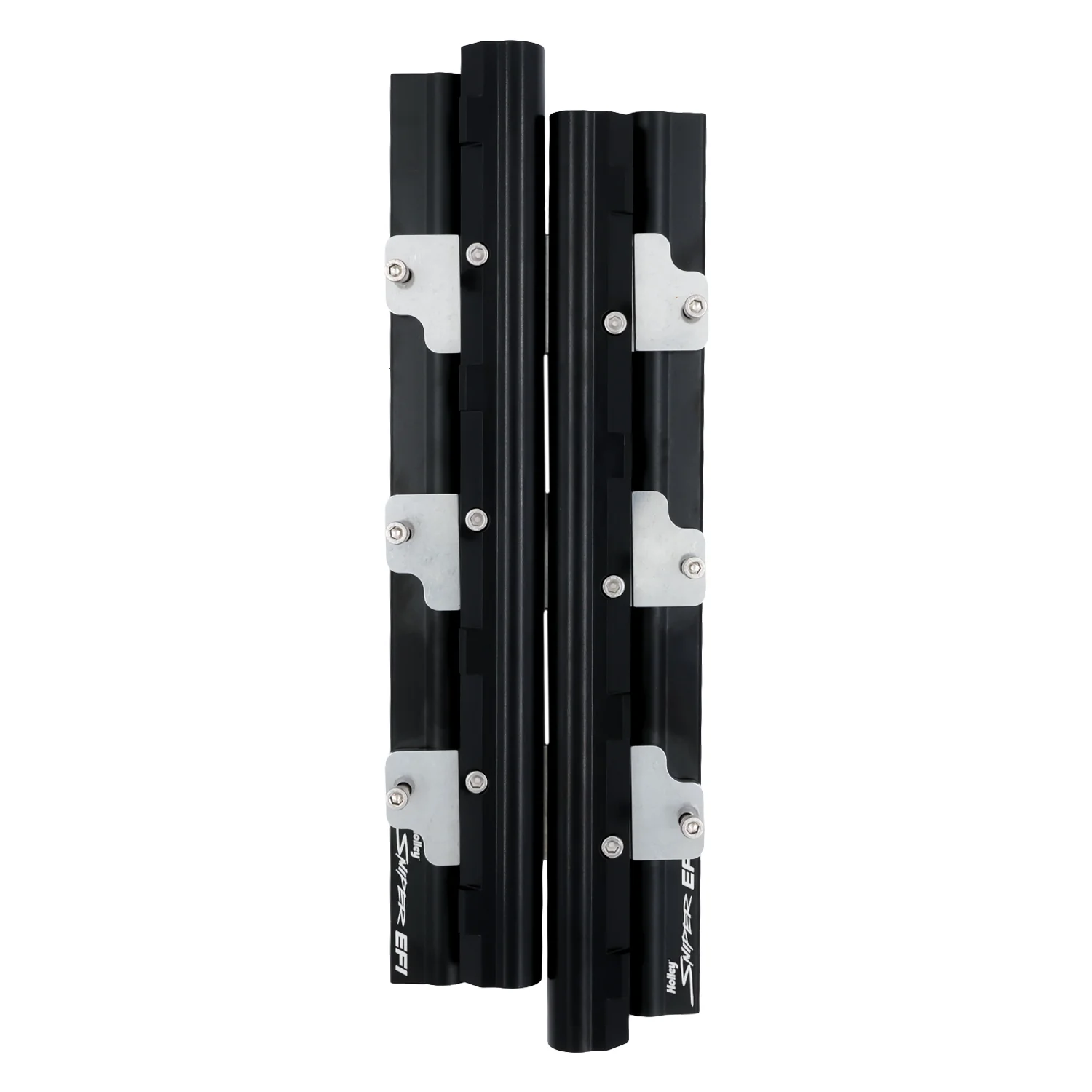

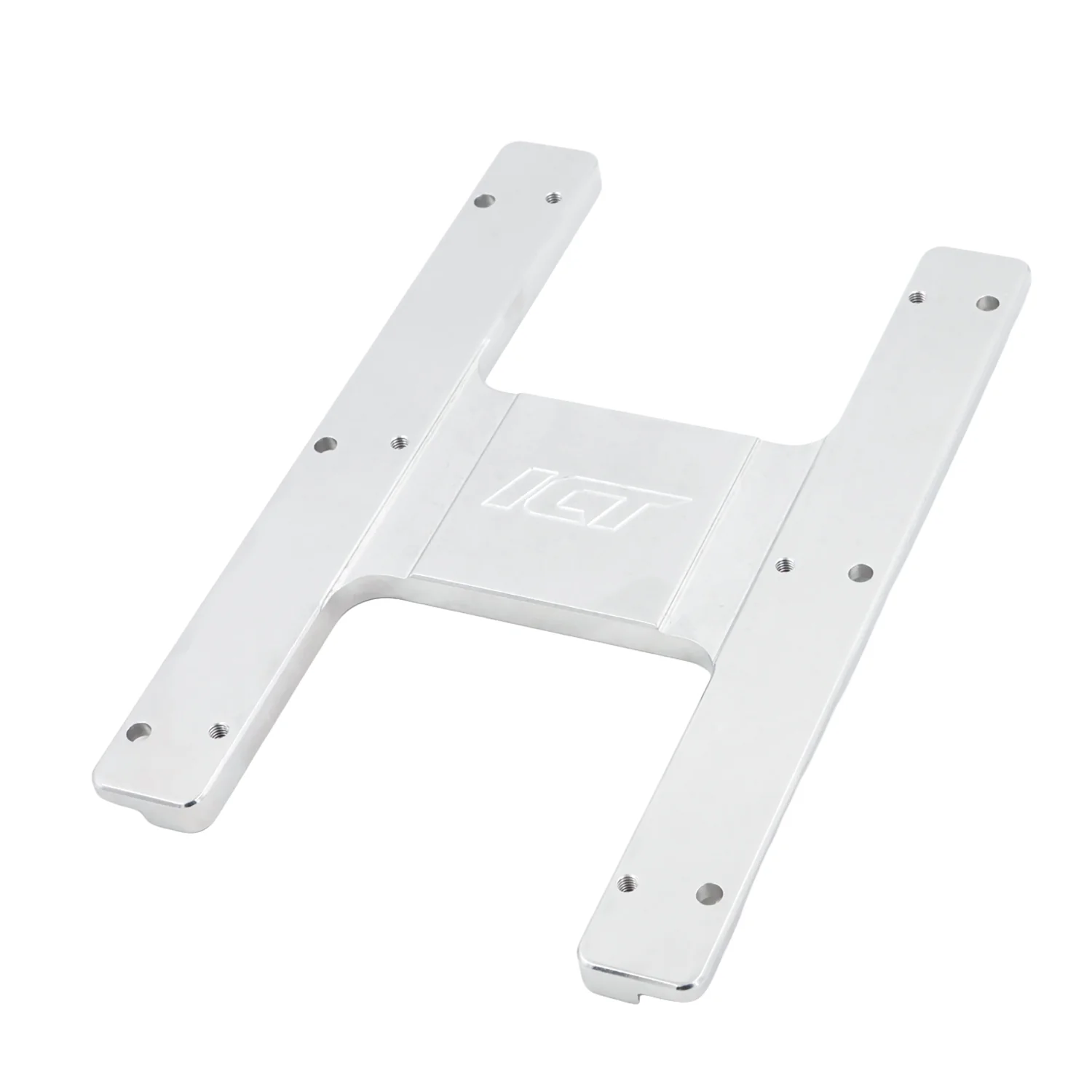

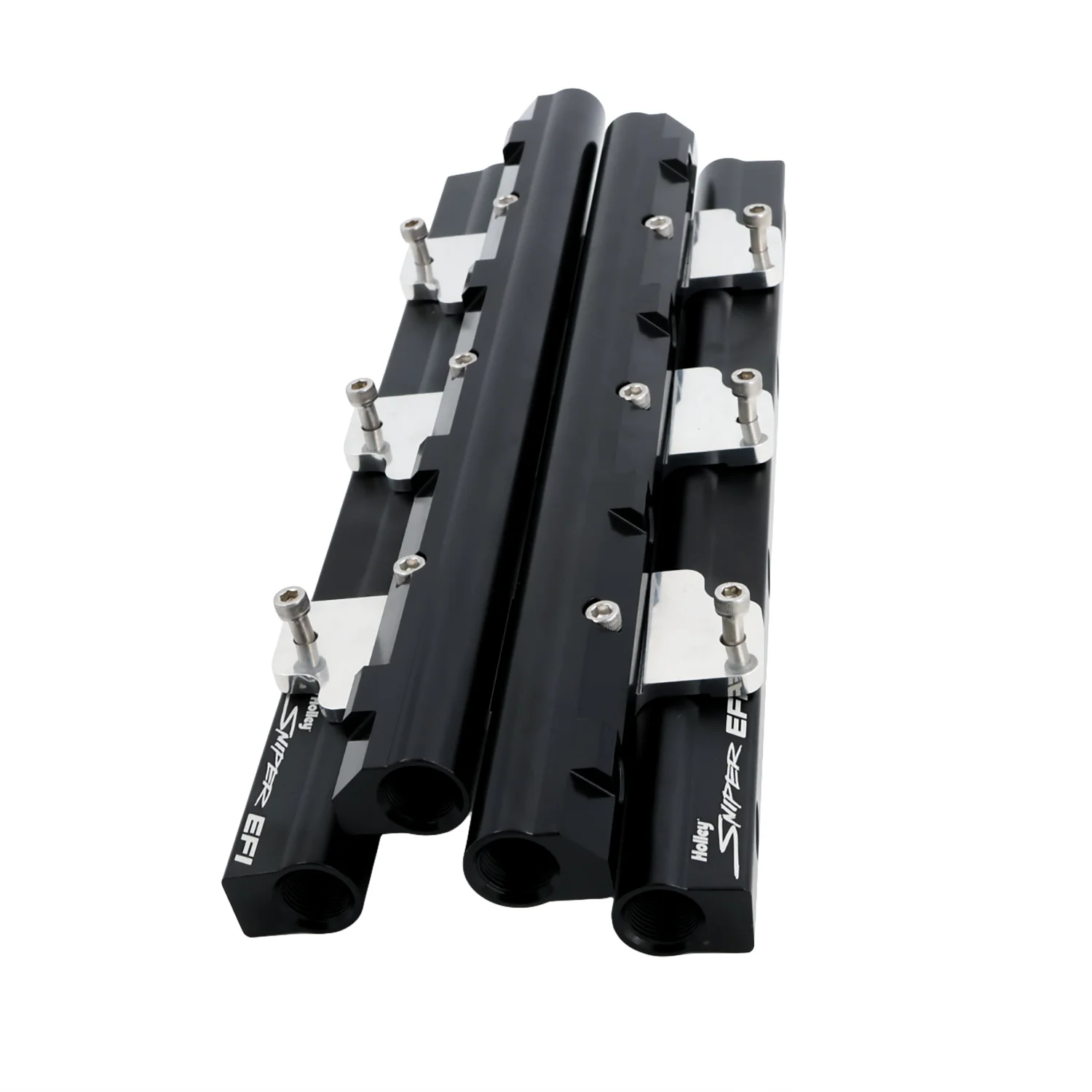

• Includes adapter plates, 4 fuel rails, injector spacers, and hardware

Note: Compatible only with Camaro/CTS-V LT4 superchargers. Designed to be used with LSA balancers (ICT Billet part #BAL301). For Corvette LT4 blowers, see kit INA-LS3-LT-16.
